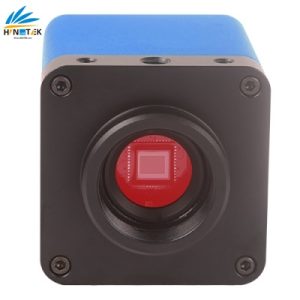

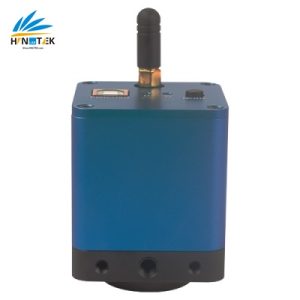

WUCAM Series C-mount WIFI+USB CMOS Camera

WUCAM is a camera that has the WiFi output and USB output. An on-camera switch is used to switch between the WiFi output and USB output.
When WiFi output is available, this camera is used as a WiFi camera and could be connected to mobile devices, such as smart phones, pads and computers. It could work with ToupView app on iOS, Android and windows platform. More than 6 users could connect the camera simultaneously by WiFi connection.
When USB output is available, this camera is used as a USB camera and could support UVC standard. The camera could be used with ToupView or other 3rd part software which could support UVC camera.

The basic characteristic of WUCAM series camera is as follows:

  •  C-Mount camera has 25.4 mm or 1 inch diameter with 32 threads per inch;
  • Scientific research grade camera with Aptina CMOS sensor;
  •  Switchable USB+WiFi data intaface;
  •  Send MJPEG encodec high-resolution images from camera to WiFi-enabled smartphones, computers, and tablets with iOS, Android, and Windows operating systems;
  •  Streams images to several devices simultaneously;
  •  Send MJPEG encodec high-resolution images from camera to USB-enabled computer with UVC standard protocal;
  •  Ultra-Fine color engine with perfect color reproduction capability;
  •  With advanced video & image processing application ToupView(only support simple video viewing capturing for IOS/ android system);
  •  Custom programmable with SDK provided(Windows/Linux/OS)(WiFi);
Order Code Sensor & Size(mm) Pixel(μm) G Sensitivity
Dynamic Range
SN Ratio
FPS/Resolution Binning Exposure
WUCAM0720PA
WU600720A
720P/MT9P001(C)

1/2.5″(5.63×3.17)

2.2×2.2 0.53V/lux-sec
66.5dB
40dB
30@1280×720 2×2 0.21ms~2000ms



OTHER HARDWARE CONFIGURATION
Spectral Range 380-650nm (with IR-filter)
White Balance ROI White Balance/ Manual Temp-Tint Adjustment
Color Rendering Technique Ultra Fine Color Engine
Capture/Control API Native C/C++, C#, Directshow, Twain, Labview(WIFI)
UVC Standard(USB)
Recording System Still Picture and Movie
Maximum Connected Devices(WIFI) <=6~10
Cooling System* Natural
OPERATING ENVIRONMENT
Operating Temperature -10℃~ 50℃
Storage Temperature -20℃~ 60℃
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH
Power Supply USB Charger, Not Recommend PC USB Port
SOFTWARE ENVIRONMENT
Operating System Support Microsoft  Windows  XP / Vista / 7 /8 (32 & 64 bit)
IOS IPAD or IPhone, Android PAD and Phone
PC Requirements CPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 2GB or More
WIFI Adapter with DHCP Enabled
Display: 17″ or Larger
CD-ROM
PAD IPAD or PAD with Android System
Mobile Phone IPhone or Smart Phone with Android System
