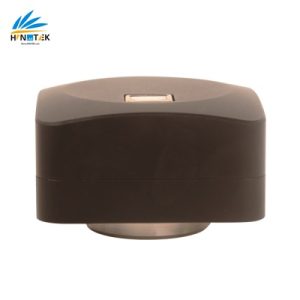

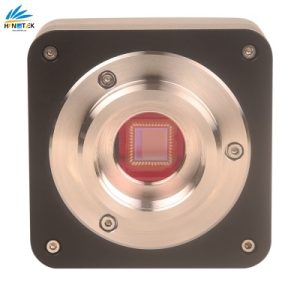

UCMOS is an ultra-high performance CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface.
UCMOS hardware resolutions ranges from 0.35M to 14M and comes with the CNC aluminum alloy compact housing. UCMOS comes with advanced video & image processing application ToupView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API; The UCMOS can be widely used in bright field light environment and microscope image capture and analysis with moderate frame rate.
The basic characteristic of UCMOS cameras are as follows:
- Standard C-Mount with Aptina CMOS sensor;
- With hardware resolution among 0.35M to 14M;
- CNC aluminum alloy housing;
- USB2.0 interface ensuring high speed data transmission;
- Ultra-FineTM color engine with perfect color reproduction capability;
- With advanced video & image processing application ToupView;
- Providing Windows/Linux/Mac OS multiple platforms SDK;
- Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dynamic Range SN Ratio |
FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| UCMOS14000KPA TP614000A |
14M/MT9F002(C)
1/2.3″(5.73×4.60) |
1.4×1.4 | 0.724v/lux-sec 65.3dB 35.5dB |
1.8@4096×3288 10@2048×1644 27@1024×822 |
1×1,2×2,4×4 | 0.4ms~2000ms |
| UCMOS10000KPA TP610000A |
10M/MT9J003(C)
1/2.3″(5.98×4.59) |
1.67×1.67 | 0.31v/lux-sec 65.2dB 34dB |
1.9@3584×2748 8@1792×1374 27@896×684 |
1×1,2×2,4×4 | 0.4ms~2000ms |
| UCMOS09000KPB TP609000B |
9.0M/Special(C)
1/2.4″(5.83×4.37) |
1.67×1.67 | 0.31v/lux-sec 65.2dB 34dB |
1.9@3488×2616 8@1744×1308 27@872×654 |
1×1,2×2,4×4 | 0.4ms~2000ms |
| UCMOS08000KPB TP608000B |
14M/Special(C)
1/2.5″(5.45×4.09) |
1.67×1.67 | 0.31v/lux-sec 65.2dB 34dB |
1.9@3264×2448 8@1600×1200 27@800×600 |
1×1,2×2,4×4 | 0.4ms~2000ms |
| UCMOS05100KPA TP605100A |
5.1M/MT9P006(C)
1/2.5″(5.70×4.28) |
2.2×2.2 | 0.53 V/lux-sec 66.5dB 40.5dB |
5@2592×1944 18@1280×960 60@640×480 |
1×1,2×2,4×4 | 0.294ms~2000ms |
| UCMOS03100KPA TP603100A |
3.1M/MT9T001(C)
1/2″(6.55×4.92) |
3.2×3.2 | 1.0 V/lux-sec 61dB 43dB |
8@2048×1536 22@1024×768 43@680×510 |
1×1,2×2,3×3 | 0.244ms~2000ms |
| UCMOS02000KPB TP602000B |
2.0M/Special(C)
1/2.6″(5.12×3.84) |
3.2×3.2 | 1.0 V/lux-sec 61dB 43dB |
16@1600×1200 50@800×600 |
1×1,2×2 | 0.244ms~2000ms |
| UCMOS01300KPA TP601300A |
1.3M/MT9M111(C)
1/3″(4.60×3.70) |
3.6×3.6 | 1.0V/lux-sec 71dB 44dB |
15@1280×1024 26@640×512 50@320×256 |
1×1,2×2,4×4 | 0.14ms~2000ms |
| UCMOS01300KMA TM601300A |
1.3M/MT9M001(M)
1/2″(6.66×5.32) |
5.2×5.2 | 2.1 V/lux-sec 68.2dB 45dB |
20@1280×1024 | 1×1 | 0.14ms~500ms |
| UCMOS00350KPA TP600350A |
0.35M/MT9V011(C)
1/4″(3.58×2.69) |
5.6×5.6 | 1.9V/lux-sec 60dB 45dB |
30@640×480 80@320×240 |
1×1,2×2 | 0.111ms~192.6ms |
| OTHER HARDWARE CONFIGURATION | |
|---|---|
|
Spectral Range |
380-650nm (with IR-filter) |
|
White Balance |
ROI White Balance/ Manual Temp-Tint Adjustment |
|
Color Rendering Technique |
Ultra Fine Color Engine |
|
Capture/Control API |
Native C/C++, C#, Directshow, Twain, Labview |
|
Recording System |
Still Picture and Movie |
|
Cooling System* |
Natural |
| OPERATING ENVIRONMENT | |
|
Operating Temperature |
-10℃~ 50℃ |
|
Storage Temperature |
-20℃~ 60℃ |
|
Operating Humidity |
30~80%RH |
|
Storage Humidity |
10~60%RH |
|
Power Supply |
DC 5V over PC USB Port |
| SOFTWARE ENVIRONMENT | |
|
Operating System |
Support Microsoft Windows XP / Vista / 7 /8 (32 & 64 bit) |
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory: 2GB or More |
|
|
USB port: USB2.0 High-speed Port |
|
|
Display: 17″ or Larger |
|
|
CD-ROM |
|
