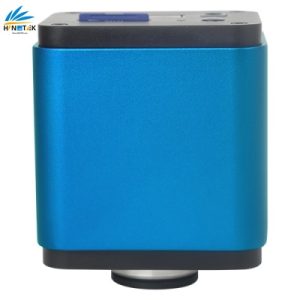

ALPHA1080 series is a multiple interfaces (HDMI+USB2.0+SD card) CMOS camera and it adopts ultra-high performance Sony CMOS sensor as the image-picking device. HDMI+USB2.0 are used as the data transfer interface to HDMI display or computer.
For HDMI camera mode, The XCamView will be loaded and the Camera Control Panel+ Measurement Toolbar + Synthesis Camera Control Toolbar are overlaid on the HDMI screen when the mouse move to the related region, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video and perform the measurement ital.
For USB Video camera mode, plug in the micro USB host cable to the camera’s USB Video port and computer USB port, then the video stream can be transfer to computer with the advanced software ToupView. With ToupView, you can control the camera, process the video and image as ToupTek’s other USB series camera.

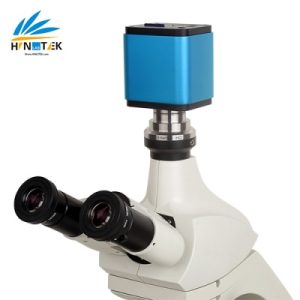

ALPHA1080 series camera can be used for microscope, industrial stereo microscope, on-line inspection et al.
- All in 1( HDMI+USB+SD card) C-mount camera with high sensitivity CMOS sensor;
- Simultaneous HDMI & USB output;
- Built-in mouse control;
- Built-in image capture & video record to SD card;
- Built-in camera control panel, including exposure(manual/auto)/gain, white balance(lockable), color adjustment, sharpness control;
- Built-in video and image measurement;
- Built-in toolbar including zoom, mirror, comparison, freeze, cross, browser functions;
- Built-in image & video browsing, display & play;
- Real time clock(RTC)
For USB Video mode:
- Ultra-Fine color engine with perfect color reproduction capability(USB);
- With advanced video & image processing application ToupView, which including professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB);
- Support standard UVC protocol for Windows/Linux/Mac(USB);
- CNC precision machining shell;
The possible applications of ALPHA1080 series are as follows: - Scientific research, education (teaching, demonstration and academic exchanges);
- Digital laboratory, medical research;
- Industrial visual (PCB examination, IC quality control, mechanical part measurement);
- Medical treatment (pathological observation);
- Food (microbial colony observation and counting);
- Aerospace, military (high sophisticated weapons);
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal |
FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
|
ALPHA1080A |
1080P/Sony IMX290(C) 1/2.8″(5.57×4.13) |
2.9×2.9 | 1300 mv with 1/30s 0.15 mv with 1/30s |
60@1920×1080 (HDMI) 26@1920×1080 (USB) |
1×1 | 0.036ms~8s |
|
ALPHA1080B |
1080P/Sony IMX185(C) 1/1.9″(7.20×4.50) |
3.75×3.75 | 1120 mv with 1/30s 0.15 mv with 1/30s |
60@1920×1080 (HDMI) 26@1920×1080 (USB) |
1×1 | 0.036ms~4s |

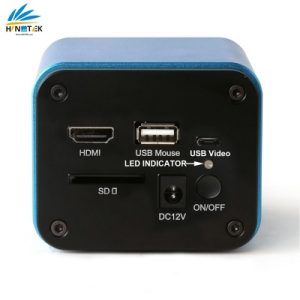

| Interface & Button Functions | |||||
|---|---|---|---|---|---|
| HDMI | HDMI Output | ||||
| USB Mouse | USB Mouse for the Ctrl of the HDMI Mode | ||||
| USB Video | USB Video for the PC | ||||
| SD | SD Card Slot | ||||
| DC12V | 12V/1A Power in | ||||
| ON/OFF | Power On/Off Switch | ||||
| LED | Power On Indicator | ||||
| Other Specification for HDMI Output | |||||
|---|---|---|---|---|---|
| UI Operation | With USB Mouse for HDMI Mode | ||||
| Image Capture | High Speed in SD Card(8G) | ||||
| Video Record | 1080P 26fps in SD Card(8G) | ||||
| Camera Control Panel | Including Exposure, Gain, White Balance, Color Adjustment and Sharpness Control | ||||
| Toolbar | Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function | ||||
| Other Specification for USB Output | |||||
| White Balance | Auto White Balance,Manual White Balance and ROI White Balance | ||||
| Color Technique | Ultra-Fine Color Engine (USB2.0) | ||||
| Capture/Control API | Standard UVC for Windows/Linux/Mac(USB2.0) | ||||
| Recording System | Still Picture or Movie (HDMI or USB) | ||||
| Software Environment (for USB2.0 Connection) | |||||
| Operating System | Microsoft® Windows® XP /Vista /7/8/8.1/10(32 & 64 bit) OSx(Mac OS X) Linux |
||||
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher | ||||
| Memory: 4GB or More | |||||
| USB Port: USB2.0 High-speed Port | |||||
| Display: 19” or Larger | |||||
| CD-ROM | |||||
| Operating Environment | |||||
| Operating Temperature(in Centidegree) | -10~ 50 | ||||
| Storage Temperature(in Centidegree) | -20~ 60 | ||||
| Operating Humidity | 30~80%RH | ||||
| Storage Humidity | 10~60%RH | ||||
| Power Supply | DC 12V/2A Adaptor | ||||
| Overall Dimensions | |||||
| Width x Depth x Height | 78 mm (3.07”) x 70 mm (2.76”) x 92mm (3.62”) | ||||
| Shipping Weight | 0.47 kg (1.0lbs) | ||||
