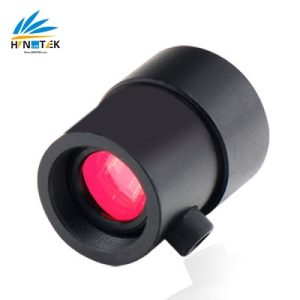

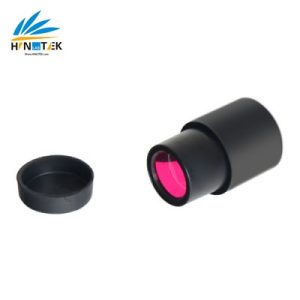

SCMOS is an economic version with simple and compact structure CMOS eyepiece camera. So here, the S means simple and compact. USB2.0 is used as the data transfer interface.
The SCMOS comes with high-speed USB2.0 interface and high frame rate video display keep the screen smooth without interruption;
Also the SCMOS comes with advanced video & image processing application ToupView;
The SCMOS can be widely used to transfer the mono or binocular student microscopes to digital microscope.
With 23.2 to 30mm or 23.2 to 30.75 convert ring, the SCMOS camera can also change the stereo microscope to digital stereo microscope. Microscope eyepiece camera with 23.2 diameter and compact size;
- Easy to extend to C or CS- Mount camera with high quality lens(optional);
- High-quality camera with Aptina CMOS sensor;
- Auto white balance and auto-exposure; Brightness, contrast, chroma, and saturation can be adjusted;
- High-speed USB2.0 interface and high frame rate video display keep the screen smooth without interruption;
- With advanced video & image processing application ToupView;
- Providing Windows/Linux/Mac OS multiple platforms SDK;
- Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dynamic Range SN Ratio |
FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
|
SCMOS05000KPA |
5.0M/Aptina(C)
1/2.5″(5.70×4.28) |
2.2×2.2 | NA | 2@2592×1944 3@2048×1536 5@1600×1200 7.5@1280×1024 |
N/A | Auto |
|
SCMOS05000KPB |
5.0M/SC5033(C)
1/2.7″(5.18×3.89) |
2.0×2.0 | 2.0V/lux-sec
64dB 35dB |
20@2592×1944 20@2048×1536 20@1600×1200 30@800×600 |
N/A | Auto |
|
SCMOS03000KPA |
3M/Aptina(C)
1/2.7″ (4.506×3.38) |
2.2×2.2 | NA | 3 @2048×1536 5 @1600×1200 7.5 @1280×1024 |
N/A | Auto
|
|
SCMOS03000KPB |
3M/SmartSens(C)
1/2.7″ (4.10×3.07) |
2.0×2.0 | 2.0V/lux-sec
64dB 35dB |
20 @2048×1536 20 @1600×1200 30 @ 800x 600 |
N/A | Auto
|
|
SCMOS02000KPA |
2M/Aptina(C)
1/3.2″(4.48×3.36) |
2.8×2.8 | NA | 5@1600×1200 7.5@1280×1024 7.5@1280×960 20@800×600 |
N/A | Auto |
|
SCMOS02000KPB |
2M/OV2710(C)
1/2.7″(5.76×3.24) |
3×3 | 3.3V/Lux-sec
69dB |
25 @1920×1080 30 @1280×1024 30 @1280×720 |
N/A | Auto |
|
SCMOS01300KPA |
1.3M/Aptina(C)
1/3″(4.60×3.70) |
3.6×3.6 | NA | 7.5@1280×1024 12.5@1024×768 12.5@800×600 |
N/A | Auto |
|
SCMOS00920KPA |
0.92M/BG0703(C)
1/2.7″(5.76×3.24) |
4.5×4.5 | 5.8V/Lux-sec
65dB 43dB |
25 @1280×720 25 @640×480 |
N/A | Auto |
|
SCMOS00350KPA |
0.35M/Aptina(C)
1/4″(3.58×2.69) |
5.6×5.6 | NA | 30@640×480 | N/A | Auto |
| OTHER HARDWARE CONFIGURATION | |
|---|---|
| Spectral Range | 380-650nm (with IR-filter) |
| White balance | Auto |
| Color Rendering Technique | NA |
| Capture/Control API | Native C/C++, Directshow, Twain |
| Recording System | Still Picture and Movie |
| Cooling System* | Natural |
| OPERATING ENVIRONMENT | |
| Operating Temperature | -10℃~ 50℃ |
| Storage Temperature | -20℃~ 60℃ |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 5V over PC USB Port |
| SOFTWARE ENVIRONMENT | |
| Operating System | Support Microsoft Windows XP / Vista / 7 /8 (32 & 64 bit) OS X (Mac OS X), Linux |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
| Memory: 2GB or More | |
| USB port: USB2.0 High-speed Port | |
| Display: 17″ or Larger | |
| CD-ROM | |
