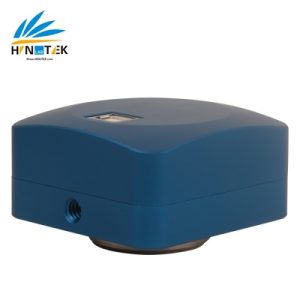

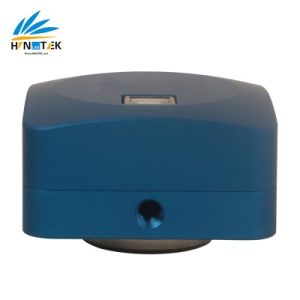

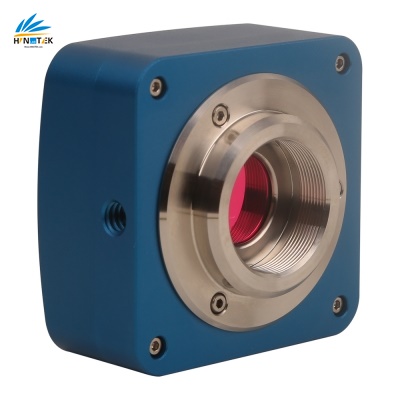

UA is an Advanced USB2.0 CMOS camera. It adopts ultra-high performance CMOS sensor as the image-picking up device. USB2.0 is used as the data transfer interface.
UA hardware resolutions ranges from 1.3M to 16M installed in the aluminum alloy CNC compact housing. UA comes with advanced video & image processing application ToupView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API; The UA can be widely used in bright field light environment and microscope image capture and analysis with moderate frame rate.
The basic characteristic of UA cameras are as follows:
- Standard C-Mount with Aptina/Panasonic CMOS sensor;
- With hardware resolution among 1.3M to 16M;
- USB2.0 interface ensuring high speed data transmission;
- Ultra-FineTM color engine with perfect color reproduction capability;
- With advanced video & image processing application ToupView;
- Providing Windows/Linux/Mac OS multiple platforms SDK;
- Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
- External dedicated on-board buffer to achieve maximum performance of USB2.0
- Compatible with most of the old and new CPU PC;
- Aluminum alloy CNC housing which is the same as that of UCMOS series.
Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dynamic Range SN Ratio |
FPS/Resolution | Binning | Exposure |
---|---|---|---|---|---|---|
UA1600CA |
16M/MN3142(C)
1/2.33″(6.18×4.66) |
1.335×1.335 | R: 2453LSB Gr: 2444LSB Gb: 1054LSB B: 996LSB |
2@4632×3488 8@2320×1740 11@1536×1160 |
1×1,2×2,3×3 | 0.2ms~2000ms |
UA1000CA |
10M/MT9J003(C)
1/2.3″(5.98×4.59) |
1.67×1.67 | 0.31v/lux-sec 65.2dB 34dB |
3.3@3584×2748 11@1792×1374 38@896×684 |
1×1,2×2,4×4 | 0.4ms~2000ms |
UA510CA |
5.1M/MT9P006(C)
1/2.5″(5.70×4.28) |
2.2×2.2 | 0.53 V/lux-sec 66.5dB 40.5dB |
7@2592×1944 27@1280×960 90@640×480 |
1×1,2×2,4×4 | 0.294ms~2000ms |
UA310CA |
3.1M/MT9T001(C)
1/2″(6.55×4.92) |
3.2×3.2 | 1.0 V/lux-sec 61dB 43dB |
12@2048×1536 32@1024×768 45@680×510 |
1×1,2×2,3×3 | 0.244ms~2000ms |
UA130CA |
1.23M/SC1235(C)
1/3″(4.80×3.60) |
3.75×3.75 | 4.5 V/lux-sec 74dB 38dB |
25@1280×960 25@1280×720 |
1×1 1×1 |
0.1ms~2000ms |
OTHER HARDWARE CONFIGURATION | |
---|---|
Spectral Range |
380-650nm (with IR-filter) |
White Balance |
ROI White Balance/ Manual Temp-Tint Adjustment |
Color Rendering Technique |
Ultra Fine Color Engine |
Capture/Control API |
Native C/C++, C#, Directshow, Twain, Labview |
Recording System |
Still Picture and Movie |
Cooling System* |
Natural |
OPERATING ENVIRONMENT | |
Operating Temperature |
-10℃~ 50℃ |
Storage Temperature |
-20℃~ 60℃ |
Operating Humidity |
30~80%RH |
Storage Humidity |
10~60%RH |
Power Supply |
DC 5V over PC USB Port |
SOFTWARE ENVIRONMENT | |
Operating System |
Support Microsoft Windows XP / Vista / 7 /8 /10 (32 & 64 bit) |
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
Memory: 2GB or More |
|
USB port: USB2.0 High-speed Port |
|
Display: 17″ or Larger |
|
CD-ROM |
