U3CCD is an ExView HAD CCD series camera. It adopts Sony ExView HAD CCD sensor as the image-picking device. Sony ExView HAD CCD is a CCD that drastically improves light efficiency by including near infrared light region as a basic structure of HAD (Hole-Accumulation-Diode) sensor. ToupTek uses EXCCD for simplicity. USB3.0 is used as the data transfer interface.

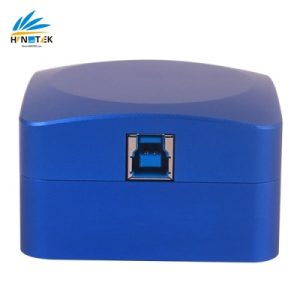

U3CCD camera hardware resolutions range from 1.4M to 12M and come with the integrated CNC aluminum alloy compact housing.
U3CCD comes with advanced video & image processing application ; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
The U3CCD can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.
The U3CCD characteristic is as follows:

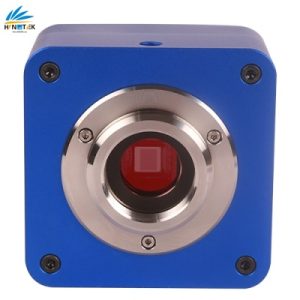

- Standard C-Mount camera with SONY ExView HAD CCD II sensors from 1.4M ~12M;
- IR-CUT Coated Windows
- Up to 1000s long time exposure;
- USB3.0 5Gbit/second interface ensuring high speed data transmission;
- Ultra-FineTM color engine with perfect color reproduction capability;
- With advanced video & image processing application;
- Providing Windows/Linux/Mac OS multiple platforms SDK;
- Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal |
FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
|
U3CCD12000KPA |
12M/ICX834AQG(C)
1″(13.15×8.77) |
3.10×3.10 | 420mv with 1/30s 15.2mv with 1/30s |
3.6@4284×2836 3.6@2124×1418 |
1×1 2×2 |
0.06ms~1000s |
|
U3CCD12000KMA |
12M/ICX834ALG(C)
1″(13.15×8.77) |
3.10×3.10 | 420mv with 1/30s 12mv with 1/30s (F#=8.0) |
3.6@4284×2836 3.6@2124×1418 |
1×1 2×2 |
0.06ms~1000s |
|
U3CCD09000KPA |
9.0M/ICX814AQG(C)
1″(12.47×9.98) |
3.69×3.69 | 580mv with 1/30s 12mv with 1/30s |
4.4@3388×2712 4.4@1694×1356 |
1×1 2×2 |
0.06ms~1000s |
|
U3CCD09000KMA |
9.0M/ICX814ALG(C)
1″(12.47×9.98) |
3.69×3.69 | 660mv with 1/30s 12mv with 1/30s (F#=8.0) |
4.4@3388×2712 4.4@1694×1356 |
1×1 2×2 |
0.06ms~1000s |
|
U3CCD06000KPA |
6.0M/ICX694AQG(C)
1″(12.48×9.99) |
4.54×4.54 | 1000mv with 1/30s 8mv with 1/30s |
7.5@2748×2200 14@2748×1092 |
1×1 | 0.06ms~1000s |
|
U3CCD06000KMA |
6.0M/ICX694ALG(M)
1″(12.48×9.99) |
4.54×4.54 | 1000mv with 1/30s 8mv with 1/30s |
7.5@2748×2200 14@2748×1092 |
1×1 | 0.06ms~1000s |
|
U3CCD02800KPA |
2.8M/ICX674AQG(C)
2/3″(8.81×6.63) |
4.54×4.54 | 800mv with 1/30s 4mv with 1/30s |
15@1938×1460 17@1610×121218@1930×1092 |
1×1 | 0.05ms~1000s |
|
U3CCD02800KMA |
2.8M/ICX674ALG(M)
2/3″(8.81×6.63) |
4.54×4.54 | 950mv with 1/30s 4mv with 1/30s |
15@1938×1460 17@1610×121218@1930×1092 |
1×1 | 0.05ms~1000s |
|
U3CCD01400KPB |
1.4M/ICX825AQA(C)
2/3″(8.88×6.70) |
6.45×6.45 | 2000mv with 1/30s 4.8mv with 1/30s |
25@1360×1040 | 1×1 | 0.07ms~1000s |
|
U3CCD01400KMB |
1.4M/ICX825ALA(M)
2/3″(8.88×6.70) |
6.45×6.45 | 2000mv with 1/30s 4.8mv with 1/30s |
25@1360×1040 | 1×1 | 0.07ms~1000s |
| OTHER HARDWARE CONFIGURATION | |
|---|---|
|
Spectral Range |
380-650nm (with IR-filter) |
|
White Balance |
ROI White Balance/ Manual Temp-Tint Adjustment |
|
Color Rendering Technique |
Ultra Fine Color Engine |
|
Capture/Control API |
Native C/C++, C#/VB.NET, Directshow, Twain, Labview |
|
Recording System |
Still Picture and Movie |
|
Cooling System* |
Natural |
| OPERATING ENVIRONMENT | |
|
Operating Temperature |
-10℃~ 50℃ |
|
Storage Temperature |
-20℃~ 60℃ |
|
Operating Humidity |
30~80%RH |
|
Storage Humidity |
10~60%RH |
|
Power Supply |
USB3.0 |
| SOFTWARE ENVIRONMENT | |
|
Operating System |
Support Microsoft Windows XP / Vista / 7 /8 /10 (32 & 64 bit) |
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory: 2GB or More |
|
|
USB port: USB2.0 High-speed Port |
|
|
Display: 17″ or Larger |
|
|
CD-ROM |
|
