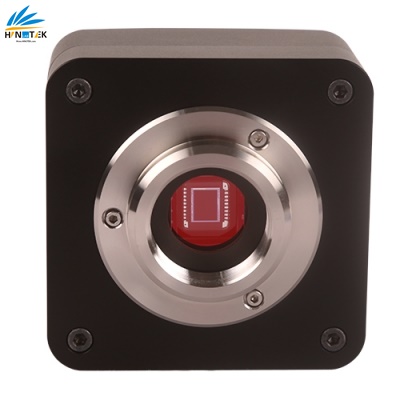

is an ultra-high performance Super HAD CCD camera. The camera adopts Sony Super HAD CCD sensor as the image-picking device; The Super HAD CCD is a version of Sony’s high performance CCD HAD (Hole-Accumulation Diode) sensor with sharply improved sensitivity by the incorporation of a new semiconductor technology developed by Sony Corporation. USB2.0 is used as the data transfer interface.
UHCCD comes with advanced video & image processing application ToupView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
The UHCCD can be widely used in bright field light environment and microscope image capture and analysis.
The UHCCD’s basic characteristic is as follows:
- Standard C-Mount camera with SONY Super HAD CCD 0.8~5.2M sensor;
- USB2.0 interface ensuring high speed data transmission;
- Ultra-Fine color engine with perfect color reproduction capability;
- With advanced video & image processing application ToupView;
- Providing Windows/Linux/Mac OS multiple platforms SDK;
- Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal |
FPS/Resolution | Binning | Exposure |
---|---|---|---|---|---|---|
UHCCD05200KPA |
ICX655AQ(C)
2/3″(8.44×7.07) |
3.45×3.45 | 420mv with 1/30s 4mv with 1/30s |
4.3@2448×2050 10.5@960×720 |
1×1 | 0.22ms~60s |
UHCCD05100KPA |
ICX452AQ(C)
1/1.8″(7.19×5.39) |
2.775×2.775 | 260mv with 1/30s 16mv with 1/30s |
4@2592×1944 35@560×420 |
1×1,2×2 | 0.212ms~77ms |
UHCCD05000KPA |
ICX282AQ(C)
2/3″ (8.70×6.53) |
3.4×3.4 | 280mv with 1/30s 16mv with 1/30s |
4.5@2560×1920 9@1280×960 |
1×1,2×2 | 0.203ms~60ms |
UHCCD03100KPB |
ICX252AQ(C)1/1.8″(7.06×5.30) | 3.45×3.45 | 270mv with 1/30s 12mv with 1/30s |
6@2048×1536 41@640×480 |
1×1,2×2 | 0.178ms~77ms |
UHCCD02000KPA |
ICX274AQ(C)
1/1.8″ (7.04×5.28) |
4.40×4.40 | 420mv with 1/30s 8mv with 1/30s |
10@1600×1200 | 1×1 | 0.135ms~60s |
UHCCD01400KPA |
ICX205AK(C)
1/2″(6.32×4.76) |
4.65×4.65 | 400mv with 1/30s 16mv with 1/30s |
8@1360×1024 | 1×1 | 0.227ms~60s |
UHCCD01400KPB |
ICX205AK(C)
1/2″ (6.32×4.76) |
4.65×4.65 | 400mv with 1/30s 16mv with 1/30s |
15@1360×1024 | 1×1 | 0.127ms~60s |
UHCCD01400KMB |
ICX205AK(M)
1/2″ (6.32×4.76) |
4.65×4.65 | 450mv with 1/30s 16mv with 1/30s |
15@1360×1024 | 1×1 | 0.127ms~60s |
UHCCD00800KPA |
ICX204AK(C)
1/3″ (4.76×3.57) |
4.65×4.65 | 400mv with 1/30s 16mv with 1/30s |
16@1024×768 | 1×1 | 0.16ms~60s |
OTHER HARDWARE CONFIGURATION | |
---|---|
Spectral Range | 380-650nm (with IR-filter) |
White Balance | ROI White Balance/ Manual Temp-Tint Adjustment |
Color Rendering Technique | Ultra Fine Color Engine |
Capture/Control API | Native C/C++, C#/VB.NET, Directshow, Twain, Labview |
Recording System | Still Picture and Movie |
Cooling System* | Natural |
OPERATING ENVIRONMENT | |
Operating Temperature | -10℃~ 50℃ |
Storage Temperature | -20℃~ 60℃ |
Operating Humidity | 30~80%RH |
Storage Humidity | 10~60%RH |
Power Supply | DC 5V over PC USB Port |
SOFTWARE ENVIRONMENT | |
Operating System | Support Microsoft Windows XP / Vista / 7 /8 (32 & 64 bit) OS X (Mac OS X), Linux |
PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
Memory: 2GB or More | |
USB port: USB2.0 High-speed Port | |
Display: 17″ or Larger | |
CD-ROM |
