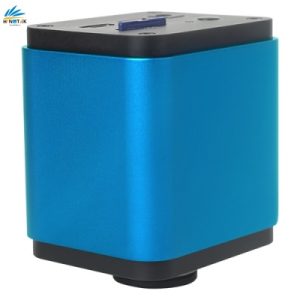

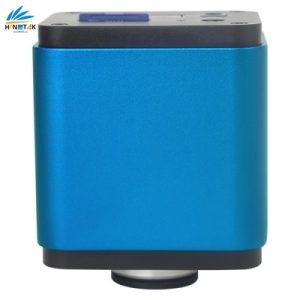

XFCAM1080PHB/PHD is a multiple interfaces (HDMI+WiFi+SD card, so X here means multiple interfaces) CMOS camera with autofocus function (F means autofocus) and it adopts ultra-high performance Sony CMOS sensor as the image-picking device. HDMI+WiFi are used as the data transfer interface to HDMI display or computer.
For HDMI output, The XCamView will be loaded and a camera control panel and toolbar are overlaid on the HDMI screen, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video ital.
For WiFi output, unplug the mouse and plug in the USB WiFi adapter, connect the computer WiFi to the camera, then the video stream can be transfer to computer with the advanced software ToupView. With ToupView, you can control the camera, process the image as ToupTek’s other USB series camera.

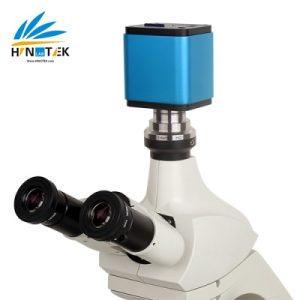

In HDMI and WIFI output, the camera embedded Auto/Manual focus function can obtain the clear image at ease. No hand rotation of the microscope Coarse/Fine knob is needed.
The XFCAM1080PHD’s basic characteristic is as follows:
- All in 1( HDMI+WIFI+SD card) C-mount camera with high sensitivity CMOS sensor;
- 1920 × 1080 (1080P) video resolution;
- Record 1080P video(ASF format) into SD card;
- 5~2M resolution captured image(XFCAM1080PHB/PHD);
- HDMI/WiFi output simultaneously;
- Auto/Manual focus with the movement of the sensor;
- For HDMI output, XCamView is used to control the camera;
- For WiFi output, ToupView/ToupLite is used to control the camera;
- Ultra-Fine Color Engine with perfect color reproduction capability(WiFi);
- With advanced video & image processing application ToupView/ToupLite;
- Windows/Linux/macOS/Android multi-platform SDK;
- CNC Camera housing;
The possible applications of XFCAM1080PHB/PHD are as follows:
- Scientific research, education (teaching, demonstration and academic exchanges);
- Digital laboratory, medical research;
- Industrial visual (PCB examination, IC quality control);
- Medical treatment (pathological observation);
- Food (microbial colony observation and counting);
- Aerospace, military (high sophisticated weapons);
| Order Code | Sensor & Size(mm) | Pixel(um) | G Sensitivity Dark Signal |
FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| XFCAM1080PHB XF1080B |
1080P/5M/ Sony IMX178(C) 1/1.8″(6.22×4.67) |
2.4×2.4 | 425 mv with 1/30s 0.15 mv with 1/30s |
60@1920×1080 (HDMI) 25@1920×1080 (WIFI) |
1×1 | 0.03ms~918ms |
| XFCAM1080PHD XF1080D |
1080P/2M/ Sony IMX185(C) 1/1.9″(7.20×4.05) |
3.75×3.75 | 1120 mv with 1/30s 0.15 mv with 1/30s |
60@1920×1080 (HDMI) 25@1920×1080 (WIFI) |
1×1 | 0.06ms~918ms |

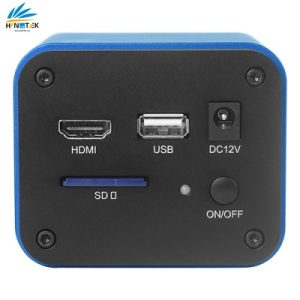

| Interface & Button Functions | |
|---|---|
| USB | USB Camera or USB Mouse |
| HDMI | HDMI Output |
| DC12V | 12V Power in |
| SD | SD Card Slot |
| ON/OFF | Power On/Off Switch |
| LED | Power On Indicator |
| Other Specification for HDMI Output | |
|---|---|
| UI Operation | With USB Mouse |
| Image Capture | JPEG Format with 5M Resolution in SD Card(XFCAM1080PHB) JPEG Format with 2M Resolution in SD Card(XFCAM1080PHD) |
| Video Record | ASF Format 1080P 30fps in SD Card |
| Camera Control Panel | Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control |
| Toolbar | Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function |
| Other Specification for WIFI Output | |
| UI Operation | With USB Mouse to Operate on the embedded XCamView |
| WIFI Performance | 802.11n 150Mbps; RF Power 20dBm(Maximum) |
| Maximum Connected Devices | 3~6(According to the Environment and Connection Distance) |
| White Balance | Auto White Balance |
| Color Technique | Ultra-Fine Color Engine (WIFI) |
| Capture/Control API | Standard SDK for Windows/Linux/Mac(WIFI) |
| Recording System | Still Picture or Movie (WIFI) |
| Software Environment (for USB2.0 Connection) | |
| Operating System | Microsoft® Windows® XP /Vista /7/8/8.1/10(32 & 64 bit) OSx(Mac OS X) Linux |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
| Memory: 4GB or More | |
| USB Port: USB2.0 High-speed Port | |
| Display: 19” or Larger | |
| CD-ROM | |
| Operating Environment | |
| Operating Temperature(in Centidegree) | -10~ 50 |
| Storage Temperature(in Centidegree) | -20~ 60 |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 12V/2A Adaptor |
| Overall Dimensions | |
| Width x Depth x Height | 78 mm (3.07”) x 70 mm (2.76”) x 92mm (3.62”) |
| Shipping Weight | 0.47 kg (1.0lbs) |
