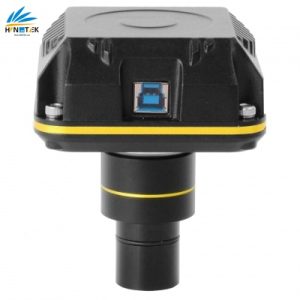

L3CMOS is Luxurious USB3.0 CMOS camera with frame buffers and it adopts ultra-high performance CMOS sensor as the image-picking device, and USB3.0 is used as the data transfer interface.
L3CMOS comes with advanced video & image processing application ToupView; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
The L3CMOS can be widely used in bright field light environment and microscope image capture and analysis.
The basic characteristic of L3COMS cameras are as follows:

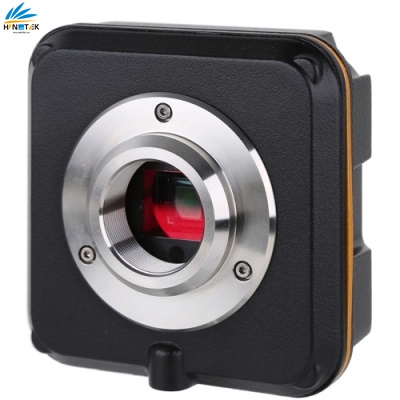

- C-Mount camera has 25.4 mm or 1 inch diameter with 32 threads per inch;
- Scientific research grade camera with Aptina CMOS sensor;
- With hardware resolution among 1.2M to 14M;
- On-board memory for perfect synchronization,higher frame rate and stable performance;
- High performance cooling structure, ensures low image noise;
- USB3.0 5 Gbps interface ensuring high frame rate;
- Ultra-FineTM color engine with perfect color reproduction capability;
- With advanced video & image processing application ToupView;
- Providing Windows/Linux/Mac OS multiple platforms SDK;
- Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dynamic Range SN Ratio |
FPS/Resolution | Binning | Exposure |
---|---|---|---|---|---|---|
L3CMOS14000KPA |
14M/MT9F002(C)
1/2.3″ (5.73×4.60) |
1.4×1.4 | 0.724v/lux-sec 65.3dB 35.5dB |
6.2@4096×3286 20.8@2048×1644 53.3@1024×822 |
1×1,2×2,4×4 | 0.1ms~2000ms |
L3CMOS10000KPA |
10M/MT9J003(C)
1/2.3″ (5.98×4.58) |
1.67×1.67 | 0.31v/lux-sec 65.2dB 34dB |
7.2@3584×2746 24.5@1792×1372 |
1×1,2×2,4×4 | 0.1ms~2000ms |
L3CMOS08500KPB |
8.5M/Special(C)
1/2.5″ (5.56×4.26) |
1.67×1.67 | 0.31v/lux-sec 65.2dB 34dB |
8.3@3328×2548 26.2@1664×1272 |
1×1,2×2,4×4 | 0.1ms~2000ms |
L3CMOS05100KPA |
5.1M/MT9P006(C)
1/2.5″ (5.63×4.23) |
2.2×2.2 | 1.76v/lux-sec 67.7dB 38.5dB |
14.2@2560×1922 38.3@1280×960 101.2@640×480 |
1×1,2×2,4×4 | 0.05ms~2000ms |
L3CMOS03100KPA |
3.1M/AR0330(C)
1/3″ (4.51×3.37) |
2.2×2.2 | 1.9v/lux-sec 100dB 39dB |
27.3@2048×1534 53.3@1024×770 |
1×1,2×2 | 0.1ms~2000ms |
L3CMOS01200KPB |
1.2M/AR0130(C)1/3″(4.8×3.6) | 3.75×3.75 | 5.5v/lux-sec 85.3dB 44dB |
45@1280×960 55@640×480 |
1×1,2×2 | 0.1ms~20000ms |
OTHER HARDWARE CONFIGURATION | |
---|---|
Spectral Range |
380-650nm (with IR-filter) |
White Balance |
ROI White Balance/ Manual Temp-Tint Adjustment |
Color Rendering Technique |
Ultra Fine Color Engine |
Capture/Control API |
Native C/C++, C#, Directshow, Twain, Labview |
Recording System |
Still Picture and Movie |
Cooling System* |
Natural |
OPERATING ENVIRONMENT | |
Operating Temperature |
-10℃~ 50℃ |
Storage Temperature |
-20℃~ 60℃ |
Operating Humidity |
30~80%RH |
Storage Humidity |
10~60%RH |
Power Supply |
DC 5V over PC USB Port |
SOFTWARE ENVIRONMENT | |
Operating System |
Support Microsoft Windows XP / Vista / 7 /8 /10 (32 & 64 bit) |
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
Memory: 2GB or More |
|
USB port: USB3.0 High-speed Port |
|
Display: 17″ or Larger |
|
CD-ROM |
