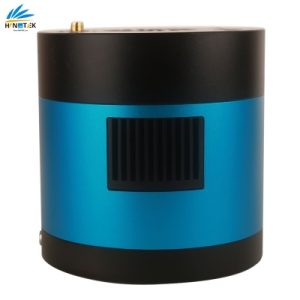

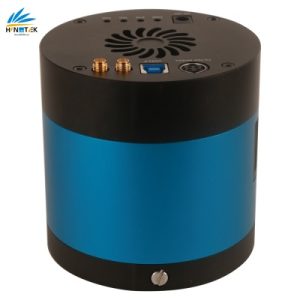

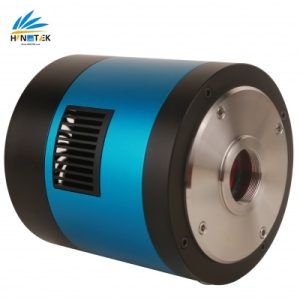

MTR3CCD camera adopts Sony Exview HAD CCD II sensor as the image-picking device with two-stage peltier cooling sensor chip to -40 degree below ambient temperature. This will greatly increase the signal to noise ratio and decrease the image noise. Smart structure is designed to assure the heat radiation efficiency and avoid the moisture problem. Electric fan is used to increase the heat radiation speed.
USB3.0 is used as the data transfer interface to increase the frame rate.
MTR3CCD comes with advanced video & image processing application ToupView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
The MTR3CCD can be widely used in low light environment and microscope fluorescence image capture and analysis, as well as the astronomy deep sky application.
The basic characteristic of MTR3CCD can be summarized as follows:
- Standard C-Mount camera with SONY ExView HAD CCD II sensors from 1.4M to 12M;
- Two-stage TE-cooling with controllable electric fan;
- Sensor chip cooling up to 40°C below ambient temperature;
- Working temperature can be regulated to specified temperature in 5 minutes;
- Smart structure to assure the heat radiation efficiency and avoid the moisture problem;
- IR-CUT/AR coated windows;
- Up to 1 hour long time exposure;
- USB3.0 5Gbit/second interface ensuring high speed data transmission;
- Ultra-FineTM color engine with perfect color reproduction capability;
- With advanced video & image processing application ToupView;
- Support both video and trigger modes;
- Providing Windows/Linux/Mac OS multiple platforms SDK;
- Native C/C++, C#/VB.NET, DirectShow, Twain control API;
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal |
FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| MTR3CCD12000KPA MP112000A(New) |
12.0M/ICX834AQG(C)
1″(13.15×8.77) |
3.10×3.10 | 420mv with 1/30s 15.2mv with 1/30s |
3.6@24248×2836 3.6@2124×1418 |
1×1 2×2 |
0.06ms~3600s |
| MTR3CCD12000KMA MM112000A(New) |
12.0M/ICX834ALG(C)
1″(13.15×8.77) |
3.10×3.10 | 420mv with 1/30s 12mv with 1/30s(F8.0) |
3.6@24248×2836 3.6@2124×1418 |
1×1 2×2 |
0.06ms~3600s |
| MTR3CCD09000KPA MP109000A(New) |
9.0M/ICX814AQG(C)
1″(12.47×9.98) |
3.69×3.69 | 580mv with 1/30s 12mv with 1/30s |
4.4 @3388×2712 4.4 @1694×1356 |
1×1 2×2 |
0.06ms~3600s |
| MTR3CCD09000KMA MM109000A(New) |
9.0M/ICX814ALG(C)
1″(12.47×9.98) |
3.69×3.69 | 580mv with 1/30s 12mv with 1/30s(F8.0) |
4.4 @3388×2712 4.4 @1694×1356 |
1×1 2×2 |
0.06ms~3600s |
| MTR3CCD06000KPA MP106000A(New) |
6.0M/ICX694AQG(C)
1″(12.48×9.99) |
4.54×4.54 | 880mv with 1/30s 8mv with 1/30s |
7.5@2748×2200 14@2748×1092 |
1×1 | 0.06ms~3600s |
| MTR3CCD06000KMA MM106000A(New) |
6.0M/ICX694ALG(M)
1″(12.48×9.998) |
4.54×4.54 | 1000mv with 1/30s 8mv with 1/30s |
7.5@2748×2200 14@2748×1092 |
1×1 | 0.06ms~3600s |
| MTR3CCD02800KPA MP102800A(New) |
2.8M/ICX674AQG(C)
2/3″(8.81×6.63) |
4.54×4.54 | 800mv with 1/30s 4mv with 1/30s |
15@1940×1460 17@1610×1212 18@1932×1092 |
1×1 | 0.05ms~3600s |
| MTR3CCD02800KMA MM102800A(New) |
2.8M/ICX674ALG(M)
2/3″(8.81×6.63) |
4.54×4.54 | 950mv with 1/30s 4mv with 1/30s |
15@1940×1460 17@1610×1212 18@1932×1092 |
1×1 | 0.05ms~3600s |
| MTR3CCD01400KPA MP101400A(New) |
1.4M/ICX285AQA(C)
2/3″(8.88×6.70) |
6.45×6.45 | 1240mv with 1/30s 10mv with 1/30s |
15@1360×1024 | 1×1 | 0.07ms~3600s |
| MTR3CCD01400KMA MM101400A(New) |
1.4M/ICX285ALA(M)
2/3″(8.88×6.70) |
6.45×6.45 | 1300mv with 1/30s 11mv with 1/30s |
15@1360×1024 | 1×1 | 0.07ms~3600s |
| MTR3CCD01400KPB MP101400A(New) |
1.4M/ICX825AQA(C)
2/3″(8.88×6.70) |
6.45×6.45 | 2000mv with 1/30s 4.8mv with 1/30s |
25@1360×1040 | 1×1 | 0.07ms~3600s |
| MTR3CCD01400KMB MM101400A(New) |
1.4M/ICX825ALA(M)
2/3″(8.88×6.70) |
6.45×6.45 | 2000mv with 1/30s 4.8mv with 1/30s |
25@1360×1040 | 1×1 | 0.07ms~3600s |
| OTHER HARDWARE CONFIGURATION | |
|---|---|
| Spectral Range | 380-650nm (with IR-filter) |
| White Balance | ROI White Balance/ Manual Temp-Tint Adjustment |
| Color Rendering Technique | Ultra Fine Color Engine |
| Capture/Control API | Native C/C++, C#, Directshow, Twain, Labview |
| Recording System | Still Picture and Movie |
| Cooling System* | Two-stage TE-cooling System -45 °C below Camera Body Temperature |
| OPERATING ENVIRONMENT | |
| Operating Temperature | -10℃~ 50℃ |
| Storage Temperature | -20℃~ 60℃ |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 5V over PC USB Port External Power Adapter for Cooling System, DC12V, 3A |
| SOFTWARE ENVIRONMENT | |
| Operating System | Support Microsoft Windows XP / Vista / 7 /8 /10 (32 & 64 bit) OS X (Mac OS X), Linux |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
| Memory: 2GB or More | |
| USB port: USB2.0 High-speed Port | |
| Display: 17″ or Larger | |
| CD-ROM | |
