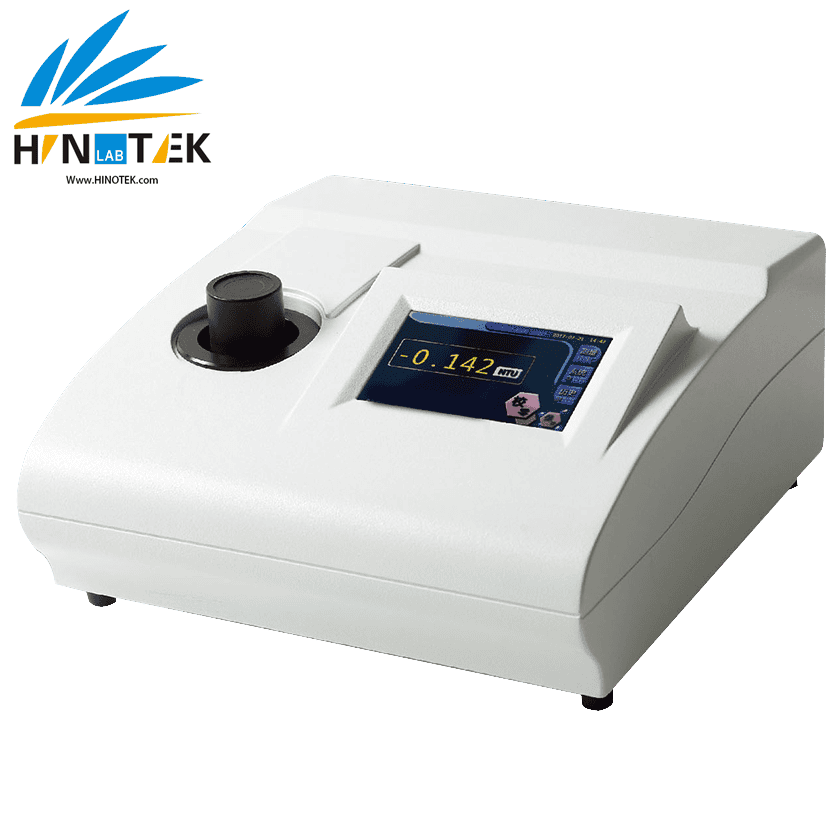

WGZ-4000/ WGZ-2000/ WGZ-1000/ WGZ-500/WGZ-200/WGZ-100 Ratio Turbidimeter



Characteristics:

  • Measurement of light scatter and decay of the insoluble particles suspended in water or transparent liquids.
  • Quantitative analysis of particle contents.

Specification

WGZ-4000 WGZ-2000 WGZ-1000
Light source: Tungsten halogen lamp 6V, 10W
Receiving element: Silicon photocell Silicon photocell Silicon photocell
Measurement range NTU: 0.00-50.0;50.1-200; 0.00-50.0;50.1-200; 0.00-50.0;50.1-200;
200.1-2000;2000.1-4000 200.1-2000;2000.1-4000 200.1-2000;2000.1-4000
(automatic range switchover) (automatic range switchover) (automatic range switchover)
Readings display: LCD Touch Screen
Minimum reading 0.001 0.001 0.001
Allowable error of indication: ≤±6% ≤±6% ≤±6%
Zero Drift: ≤±0.3%FS ≤±0.3%FS ≤±0.3%FS
Stability of indication: ≤±1%FS ≤±1%FS ≤±1%FS
Repeatability: ≤0.5% ≤0.5% ≤0.5%
Sample bottle: Φ 25 mm×95 mm Φ 25 mm×95 mm Φ 25 mm×95 mm
Data storage: 1000 sets
Calibration modes: 7 6 5
Sample volume: 30–40 ml 30–40 ml 30–40 ml
Interface: USB/U disk USB/U disk USB/U disk
Weight (Gross): 9kg 9kg 9kg
Overall dimensions: 430mm×430mm×300mm

Specifications

WGZ-500 WGZ-200 WGZ-100
Light source: Tungsten halogen lamp 6V, 10W Tungsten halogen lamp 6V, 10W Tungsten halogen lamp 6V, 10W
Receiving element: Silicon photocell Silicon photocell Silicon photocell
Measurement range NTU: 0.00-50.0;50.1-200; 0.00-50.0; 0.00-50.0;
200.1-500 50.1-100 50.1-100
(automatic range switchover) (automatic range switchover) (automatic range switchover)
Readings display: LCD Touch Screen LCD Touch Screen LCD Touch Screen
Minimum reading 0.001 0.001 0.001
Allowable error of indication: ≤±6% ≤±6% ≤±6%
Zero Drift: ≤±0.3%FS ≤±0.3%FS ≤±0.3%FS
Stability of indication: ≤±1%FS ≤±1%FS ≤±1%FS
Repeatability: ≤0.5% ≤0.5% ≤0.5%
Sample bottle: Φ 25 mm×95 mm Φ 25 mm×95 mm Φ 25 mm×95 mm
Data storage: 1000 sets
Calibration modes: 4 3 3
Sample volume: 30–40 ml 30–40 ml 30–40 ml
Interface: USB/U disk USB/U disk USB/U disk
Weight (Gross): 9kg 9kg 9kg
Overall dimensions: 430mm×430mm×300mm
