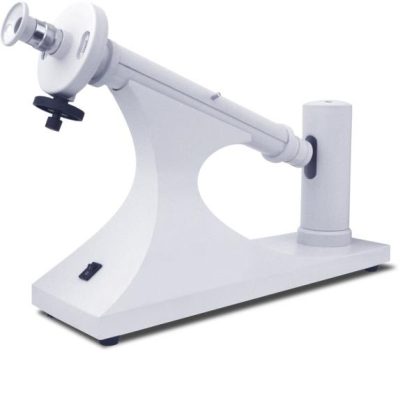

Easy-to-use manual polarimeter, measuring range from -180 to +180 degrees.
The instrument is suitable for measuring the optical rotation of the optically active substances, accuracy: 0.05 degrees.
Features:
This instrument is installed with a 589nm light source. Switch on the power, the polarized light beam passes through the polarizer filter. The operator can observe distinct visual fields through the eyepiece. Place the sample tube into the measurement chamber and rotate the vernier knob until the visual fields appear the equal brightness. Read and record the measured values from the vernier scale.
Spec:
| Model | POL-100 | WXG-4 |
| Range | ±180° | ±180° |
| Scale Value | 1° | 1° |
| Vernier | 0.05° | 0.05° |
| Magnifier | 3X | 3X |
| Light Source | LED & Interference filter | Sodium lamp |
| Wavelength | 589nm | 589nm |
| Tube Length | 50, 100 or 200mm | 50, 100 or 200mm |
| Power | AC 220V/50Hz | AC 220V/50Hz |
| Dimensions | 500(L)×135(W)×330(H)mm | 500(L)×135(W)×330(H)mm |
| Weight | 5kg | 5kg |
