LS-B35L-I-A Series

LS-B35L-I-A Series

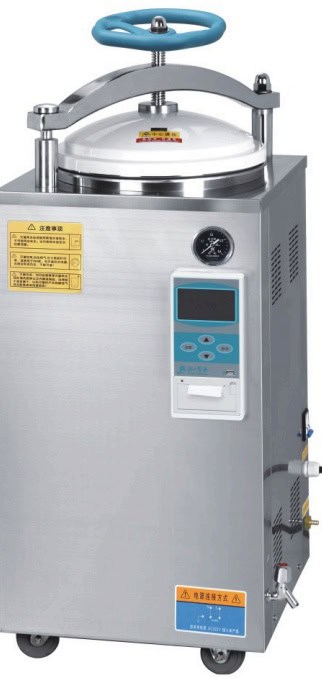

Vertical Autoclave (Digital)

SKU: LS-35HD Category: Tag:

Description

 LS-B35L-I-A Series
(Automatic DIGITAL DISPLAY AUTOMATIC AUTOCLAVE)

Characteristics:
1.Fully stainless steel structure.

2.Hand wheel type of quick-open door structure.

3.Door safety lock system.

4.Digital display of working status,touch of key.

5. Auto discharge the cool air, and steam discharging automatically after sterilization.

6.Over temperature&over pressure auto-protection.

7.Safe protection of water lacking

8.Self-inflating type seal.

9.Automatically shut off with beep reminding after sterilization

10.With two stainless steel sterilizing baskets

Specification:

Model
LS-B35L-I-A
LS-B50L-I-A
LS-B75L-I-A
LS-B100L-I-A
Valid volume
35L(Ø318*450mm)
50L(Ø340*550mm)
75L(Ø400*600 mm)
100L(Ø440*650 mm)
working pressure
0.22MPa
0.14 MPa
Working temperature
134°C
126°C
Max working pressure
0.23 Mpa
0.165 Mpa
Heat average <±1°C
Timer 0~99 Min or 0~99 Hours 59 Min
Adjustment of temp 105~134°C
Power 2.5Kw/AC220V, 50Hz 3Kw/AC220V, 50Hz 4.5Kw/AC220V, 50Hz
Overall Dimension 450*450*1010 510*470*1130 560*560*1120 540*560*1250
