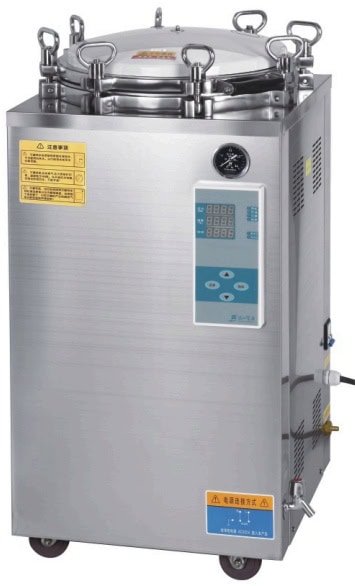

LS-B35L-A Series Vertical Autoclaves (Digital)

Use

The vertical pressure steam sterilizers are assembled with heating system, micro-computer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilize surgical instruments, fabrics, glasses, culture media etc.

LED display automation

Characteristics

Fully stainless steel structure.
LED display of working status, touch type key.
Easy to operate, safe and reliable.
Auto discharge the cool air, and steam discharging automatically after sterilization.
Automatically shut off with beep reminding after sterilization.
With two stainless steel sterilizing baskets.

Technical Data

MODEL Technical Data	LS-B35L-A	LS-B50L-A	LS-B75L-A	LS-B100L-A	LS-B120L-A	LS-B150L-A
Chamber volume	35L Φ 318 × 450mm	50L Φ 340 × 550mm	75L Φ 400 × 600mm	100L Φ 440 × 650mm	120L Φ 480 × 660mm	150L Φ 510 × 740mm
Design pressure	0.3MPa
Design temperature	150°C
Max. working pressure	0.25MPa
Max. working temperature	138°C
Heat average	≤ ± 1°C
Timer range	0~99min or 0~99hour59min
Power	1×2.5KW/AC220V.50Hz	2×1.5KW/AC220V.50Hz	3×1.5KW/AC220V.50Hz		3×2.0KW/AC220V.50Hz
Overall dimension(mm)	470×450×840	520×500×970	550×530×990	580×560×1060	630×610×1130	660×640×1130
Transport dimension(mm)	540×540×1000	580×580×1130	610×610×1160	640×640×1220	690×690×1290	730×730×1290
G.W/N.W	64kg/47kg	77kg/56kg	90kg/70kg	98kg/76kg	125kg/103kg	138kg/111kg
