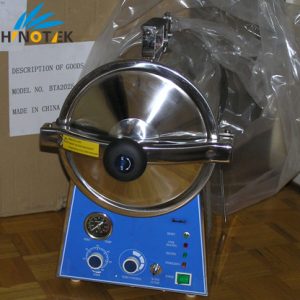

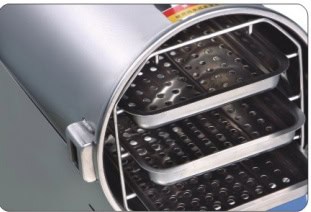

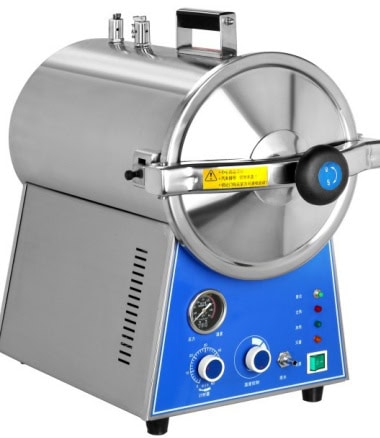

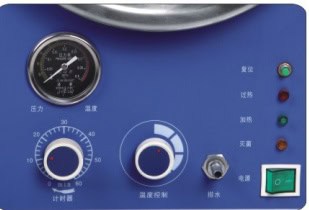

TM-T16J/TM-T24J Table Top Steam Sterilizers
Technical Data
Use
The table type sterilizers are safely auto-controlled, which are designed for the dental clinics, hospitals, school lab, scientific research institutions and laboratory. And mostly suitable for sterilizing of surgical, dental and eye instruments, glassware medicine, culture medium and biological dressing, food, etc.
Characteristics
- Sterilizing course: Automatic sterilization controlled by computer, easy to operate.
- With over heat and over pressure protection.
- After sterilization it will automatically cut the power and then alarm.
- 134°C, suitable for 4–6 minutes flash sterilizing.
- Fully stainless steel structure.
- Safe protection of water lacking.
Technical Data
| MODEL Technical Data | TM-T16J | TM-T24J |
|---|---|---|
| Sterilizing chamber volume | 16L Φ 250 × 360mm | 24L Φ 270 × 410mm |
| Design pressure | 0.3MPa | |
| Design temperature | 150°C | |
| Max. working pressure | 0.25MPa | |
| Max. working temperature | 138°C | |
| Timer range | 0~60min | |
| Heat average | ≤ ± 1°C | |
| Power | 2KW/AC220V.50Hz | |
| Sterilizing plate(mm) | 340×200×30(3piece) | |
| Dimension(mm) | 545×328×423 | 560×350×500 |
| Exterior package dimension(mm) | 620×410×570 | 620×410×570 |
| G.W/N.W | 17kg/15kg | 20kg/18kg |
