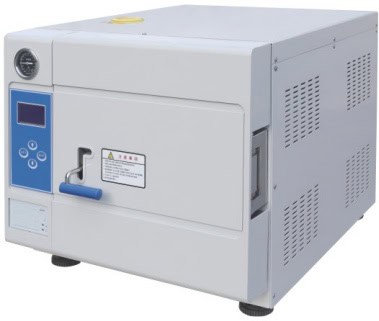

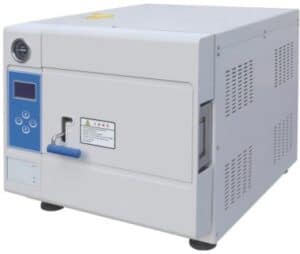

TM-35DV/TM-50DV Table Top Pulse Vacuum Steam Sterilizers
Characteristics | Standard Class B with three times vacuum and drying, the remaining temperature of sterilized instrumentis less than 0.2%. | LCD display working status, touch keys. | The vacuum data can reach -0.8bar, it fits various instruments, including package, unpackaged, solid, hollow, multi-apertures and inset pipes. It makes sure the instrument can be sterilized completely. | Fully computer controlled LCD display bright show. The interface is modularized panel for easy operation. | It is installed with BOWIE&DICK which measures the penetration of water steam. | It has vacuum test which can make sure the ability of vacuum testing. | Fast and independent steam generator. | Built-in mini printer which can record the sterilizing information. | Equipped with Safety valve, Safety lock door system, Pressure lock system, Pressure or temperature overload protection, Alarm system. | It inactivates the HIV, HBV, BSE, and bacillus efficiently. | The cycle cannot be started if the door is not sealed. Once the cycle is started and running, the sealed door is locked and cannot be opened to ensure operational safety. | Technical Data
Use
Characteristics
- Standard Class B with three times vacuum and drying, the remaining temperature of sterilized instrumentis less than 0.2%.
- LCD display working status, touch keys.
- The vacuum data can reach -0.8bar, it fits various instruments, including package, unpackaged, solid, hollow, multi-apertures and inset pipes. It makes sure the instrument can be sterilized completely.
- Fully computer controlled LCD display bright show. The interface is modularized panel for easy operation.
- It is installed with BOWIE&DICK which measures the penetration of water steam.
- It has vacuum test which can make sure the ability of vacuum testing.
- Fast and independent steam generator.
- Built-in mini printer which can record the sterilizing information.
- Equipped with Safety valve, Safety lock door system, Pressure lock system, Pressure or temperature overload protection, Alarm system.
- It inactivates the HIV, HBV, BSE, and bacillus efficiently.
- The cycle cannot be started if the door is not sealed. Once the cycle is started and running, the sealed door is locked and cannot be opened to ensure operational safety.
Technical Data
| MODEL Technical Data |
TM-35DV | TM-50DV |
|---|---|---|
| Sterilizing chamber volume | 35L Φ 300 × 500mm | 50L Φ 340 × 550mm |
| Design pressure | 0.3MPa | |
| Design temperature | 150°C | |
| Max. working pressure | 0.25MPa | |
| Max. working temperature | 138°C | |
| Timer range | 0~99min | |
| Heat average | ≤ ± 1°C | |
| Power | 2.7KW/AC220V.50Hz | |
| Dimension(mm) | 550×850×500 | 600×850×560 |
| Exterior package dimension(mm) | 690×860×700 | 690×900×700 |
| G.W/N.W | 103kg/97kg | 125kg/110kg |
The table type sterilizers are safely auto-controlled, which are designed for the dental clinics, hospitals, school lab, scientific research institutions and laboratory. And mostly suitable for sterilizing of surgical, dental and eye instruments, glassware medicine, culture medium and biological dressing, food, etc.
