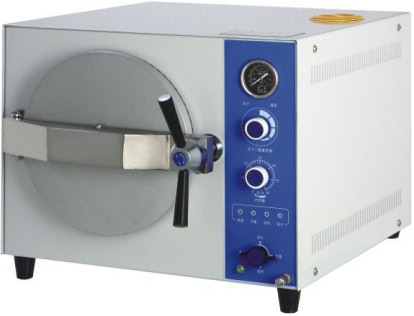

TM-XB20J/TM-XB24J Table Top Steam Sterilizers
Use
The table type sterilizers are safely auto-controlled, which are designed for the dental clinics, hospitals, school lab, scientific research institutions and laboratory. And mostly suitable for sterilizing of surgical, dental and eye instruments, glassware medicine, culture medium and biological dressing, food, etc.
Characteristics
- Indicator light indicates working state.
- With three stainless steel sterilizing plates.
- For 4~6 minutes rapidly sterilizing.
- Sterilizing temperature and time can be preset.
- The chamber of the sterilizer is made of stainless steel.
- Automatically shut off with beep reminding after sterilization.
- Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.
- The cycle cannot be started if the door is not sealed. Once the cycle is started and running, the sealed door is locked and cannot be opened to ensure operational safety.
- Over temperature & over pressure auto-protection.
- Safe protection of water lacking.
- Exhaust the cool air automatically.
Technical Data
| MODEL Technical Data |
TM-XB20J | TM-XB24J |
|---|---|---|
| Sterilizing chamber volume | 20L Φ 250 × 420mm |
24L Φ 250 × 520mm |
| Design pressure | 0.3MPa | |
| Design temperature | 150°C | |
| Max. working pressure | 0.25MPa | |
| Max. working temperature | 138°C | |
| Timer range | 0~60min | |
| Heat average | ≤ ± 1°C | |
| Power | 1.5KW/AC220V.50Hz | 2KW/AC220V.50Hz |
| Sterilizing plate(mm) | 340×200×30(3piece) | 400×200×30(3piece) |
| Dimension(mm) | 620×480×400 | 710×480×400 |
| Exterior package dimension(mm) | 700×580×500 | 800×580×500 |
| G.W/N.W | 44kg/40kg | 50kg/45kg |
