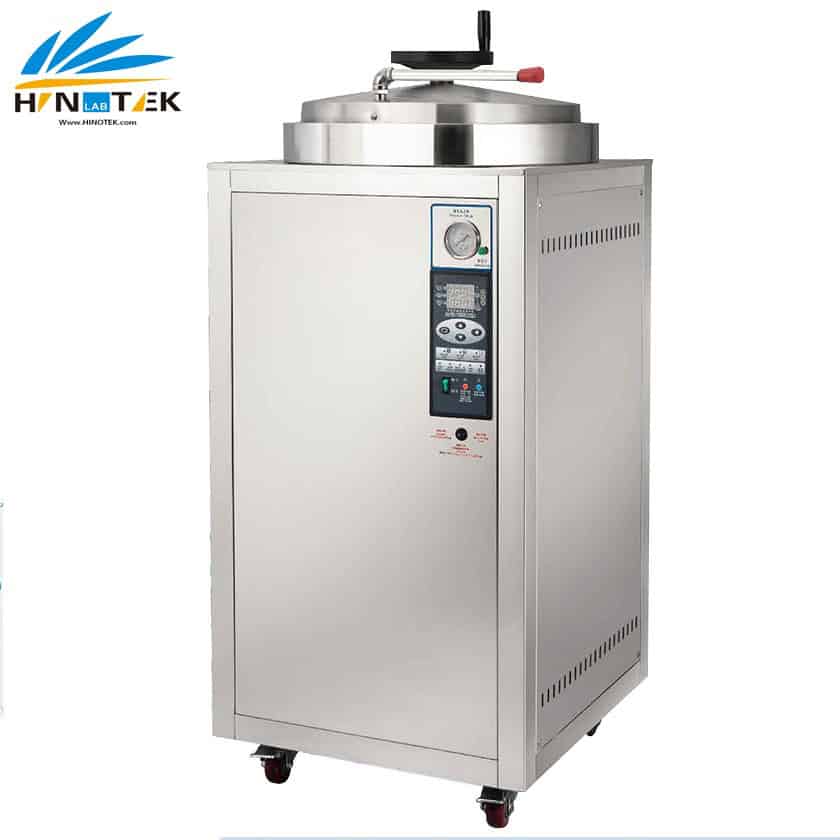

LDZH-100L Portable Pressure Steam Sterilizer

Model:LDZH-100L, LDZH-150L, LDZH-200L

Capacity: 100L, 150L, 200L.

LDZH-100L Series Vertical Type Of Pressure Steam Sterilize

Intelligent microcomputer control system:
Using LED digital control system. After sterilization finished, sterilizer will automatic alarm and shut down.

Electric interlock device:
The control system can real time supervision the sterilizer chamber’s temperature and pressure. Only under the safety temperature and pressure can open the sterilizer’s cover. Make sure the operator’s safety.

The structure of cover’s opening:
Using hand wheel rotary type cover to improve sealing and safety performance.

Preset program:
Can preset fixed program that sterilize.

Memory storage system:
Store the last operation program so convenient next operation.

Interface check:
provide temperature and pressure check interface; convenient to check multiple position temperature measurement.

Digital display screen:
Digital display screen and working indicator light display running state.

Safety Devices:
Interlock device, overtemperature, and overpressure protecting the system burned protection, safety relief valve, current leakage protector and automatic fault detection.

Print function:
Print the current temperature and sterilization time.

Technical Parameter

Parameter/Model LDZH-100L LDZH-150L LDZH-200L
Configuration Semi-automatic Control  Semi-automatic Control  Semi-automatic Control
The main material Stainless steel Stainless steel Stainless steel
Volume/GW 100L/188Kg 150L/213Kg 200L/238Kg
Voltage/Power 380V/6Kw 380V/6Kw 380V/6Kw
Packing size (L X W X H mm) 760 * 800 * 1340 760 * 8000 * 1530 760 x 800 x 1720
Product size (L X W X H mm) 650x650x1200 650x650x1400 650x650x1700
Sterilization chamber volume ( D X H mm) 500 x 550 500 x 760 500 x 1000
Basket Size (D X H mm) 465 X 230 & 2 465 X 230 & 3 465 X 230 & 4
Time setting range 0-99 h 0.99 h 0.99 h
Rated working pressure 0.217MPa 0.217MPa 0.217MPa
Sterilization temperature setting range 50~134°C 50~134°C 50~134°C

Scope of application
    This type of product meets the national provisions of pressure vessel design standard. Our factory has obtained the necessary license of sterilize products and certificate of State Food and Drug Administration. The product has the safety of structural design, and a simple mode of operation, and all necessary control function. The product has the safety of structural design, the sterilizer is equipped with interlocking device. The cover is locked when it has pressure in the chamber. No heating sifter operating mistake. The main part of the sterilizer is made of stainless steel. The product meets the national standard fir medical operations. It is a idea product to sterilizing instrument, dressing, medical, glassware, culture medium at the medical health care, universities and colleges, biological research, food and chemical industry.

Sterilization principle
     Pressure Steam Sterilizer is designed for the use of heat to kill microorganisms principle. Sterilization principle is to use the principle of gravity displacement of the steam from the top down in the sterilizer, the cool air is discharged from the vent, replaced by cold air discharge saturated steam, the use of the latent heat released by steam sterilization to achieve the article . The advantage of using steam heat sterilization method that has a strong bactericidal effect, which can increase the water content of bacterial protein, making it easy to solidification due to heat, the acceleration process dead microorganisms.

Product Standard
Q31/0114000133C006-2016 “Vertical Pressure Steam Sterilizer Simple Pressure Vessels”
