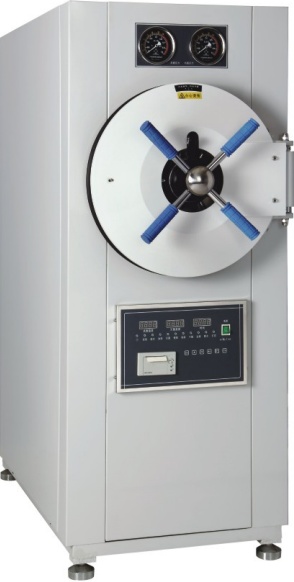

WS-150YDB Series

Horizontal Autoclave

SKU: ws-150ydb Category: Tag:

Description

Use

The horizontal autoclave, which adopts the way of gravity exchange to release the cold air from the chamber more completely to ensure the reliable sterilization. The control system automatically adjust the steam inlet and outlet according to chamber temperature during sterilizing. This unit is an ideal equipment for clinics, scientific research institutes and other organizations to sterilize surgical instruments, fabric glassed, and the culture media etc.

Characteristics

  • Automatically controlled the sterilizing process, easy to operate.
  • With drying function, suitable for the medical dressing drying.
  • With over-temperature, over-pressure auto-protect.
  • The door can not be open until the pressure in the chamber is reduced to 0.027MPa. And the unit can not be started on if the door doesn’t close well.
  • The safety valve will be open automatically when the inner pressure over 0.24MOa and the steam would be exhausted the water tank.
  • Automatically cut off the power if the water-lack happened, and alarm at the meanwhile.
  • The chamber of the sterilizer is made of stainless steel.
  • With printer.





Technical dataWS-150YDBWS-200YDBWS-280YDB
Sterilizing chamber

 volume

150L

φ440×1000mm

200L

φ515×1000mm

280L

φ600×1000mm

working pressure

0.22 MPa

working temperature

134℃

Adjustment of temperature

40℃ – 134℃

Time of sterilization

0-99 min

Time of drying

0-99 min

Heat average≤± 2℃
Power9KW/380V 50Hz9KW/380V 50Hz12KW/380V 50Hz
Dimension1400×650×16001400×750×17001520×910×1900
Transport dimension1560×820×18201560×910×18801680×1080×2100
 G.W/N.W430/340 KG436/350 KG570/462 KG
