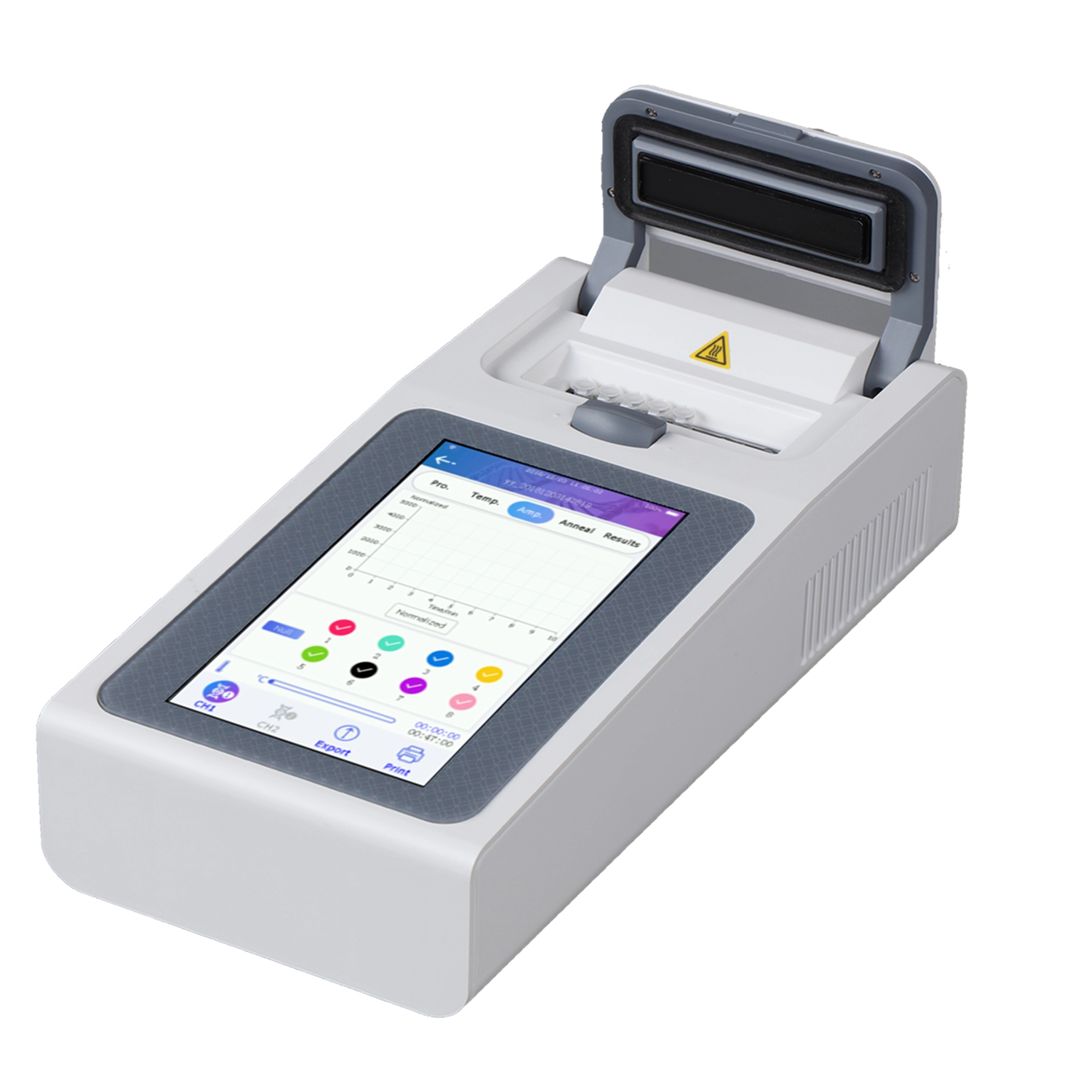

Gene-8C Isothermal Fluorescence PCR

Gene-8C Isothermal Fluorescence PCR
Gene-8C isothermal fluorescence PCR is mainly used for sample isothermal amplification and fluorescence real-time detection. It has wide applications in rapid detection of pathogenic microorganisms (including viruses, bacteria, fungi, mycoplasma, parasites, etc.), clinical disease diagnosis, food hygiene inspection, and environmental monitoring. It can also be used for gender identification of animal embryos and genetically modified food detection. User-friendly operation system can make results directly interpreted. APP mobile software makes real-time detection come true while the built-in battery design makes the outdoor use possible.

Feature:
•More reliable results
Side light detection system which makes minimum detection of 20ul reaction volume possible
Accurate temperature control, temperature difference between wells less than 0.15℃, the temperature control accuracy can reach to 0.1℃
Real-time monitoring of fluorescence signal which avoiding subjective error caused by manual interpretation

•Easy operation
The negative and positive results are directly interpreted without any other calculations
With 7 inch touchscreen, stand-alone operations like settings, detection, interpretation and save are available, no need connecting computer
User-friendly software with fluorescence detection to match with different requirements of kits

•Provides multiple data export methods
Use USB, WIFI connection, transfer the experimental data and results to your computer, or save the data directly to the cloud through WIFI (need to be developed according to customer needs)

•View results on your computer, organize and share data
Once the data is exported, you can use the PC software to view the data in various formats and organize the experimental data

•Easy-to-use “data printer” option
You can print results directly from the instrument via the USB printer interface. You can also use PC software to print and export the results from the computer

•Convenient for outdoors portability
Small size with rechargeable batteries makes detection real-time anywhere
Portable test box which is easy equip with other instruments to improve the efficiency of the experiment

•Software systems are smarter
The software on the instrument side is simple and clear, and beginners can easily master it
Android mobile APP software can control the operation of monitoring instruments
It can be operated by an external computer to meet various customer needs
Mobile APP real-time data transmission, real-time monitoring system
Data statistics function to record experimental parameters and data, which is convenient for traceability and search
Real-time monitoring, automatic identification of negative and positive, melting curve and other functions

Spec:

Model Gene-8C
Sample type 0.2 flat/dome single tube & 8*0.2 strip tube
Reaction system 10-150 μL (Recommended 20-30 μL)
Dye FAM/SYBR GreenⅠ, HEX/VIC/JOE etc.
Temp. Range (℃) Ambient -99 ℃
Max heating speed (℃) 2 ℃/s
Max coolinig speed (℃) 2 ℃/s
Temp. uniformity (℃) ±0.15 ℃
Temp. control accuracy (℃)/precision (℃) ±0.1 ℃ / 0.1 ℃
Thermo lid function Yes
Channel Single
Excitation wavelength F1: 470/30nm
Detection wavelength F1: 525/20nm
Excitation light source/detection mode LED/real-time fluorescent signal detection
Result display 1. Positive/Negative 2. Peak time 3. Anneal Tm value
Interpretation method 1. Interpretated by amplification plot 2. Interpretated by instrument automatically
Display 7 inch touch screen
Software Embedded software, mobile APP, PC software (Android system)
Input power 100~240 V,50~60 Hz
Storage battery Chargeable battery (optional)
Dimension (W×D×H) mm 145×305×100 mm
Weight (without battery) 2.3 kg
