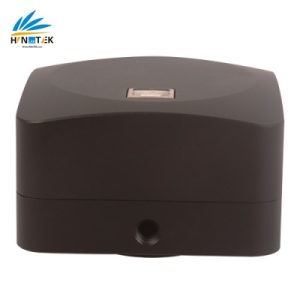

is an Exview HAD CCD camera and it adopts Sony Exview HAD CCD sensor as the image-picking device. Sony Exview HAD CCD is a CCD that drastically improves light efficiency by including near infrared light region as a basic structure of HAD (Hole-Accumulation-Diode) sensor. Uses EXCCD for simplicity. USB2.0 is used as the data transfer interface.
EXCCD comes with advanced video & image processing application ToupView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
The EXCCD can be widely used in low light environment and microscope fluorescence image capture and anaysis.
The EXCCD’s basic characteristic is as follows:

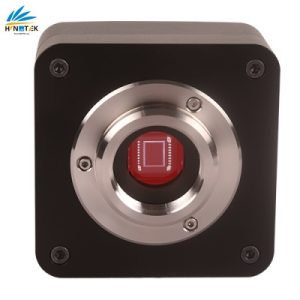

- Standard C-Mount camera with SONY ExView 0.3M~1.4M sensors;
- USB2.0 interface ensuring high speed data transmission;
- Ultra-Fine color engine with perfect color reproduction capability;
- With advanced video & image processing application ToupView;
- Providing Windows/Linux/Mac OS multiple platforms SDK;
- Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal |
FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
|
EXCCD01400KPA |
1.4M/ICX285AQ(C)
2/3″(8.77×6.60) |
6.45×6.45 | 1240mv with 1/30s 10mv with 1/30s |
15@1360×1024 | 1×1 | 0.126ms~240s |
|
EXCCD01400KMA |
1.4M/ICX285AL(M)
2/3″(8.77×6.60) |
6.45×6.45 | 1300mv with 1/30s 11mv with 1/30s |
15@1360×1024 | 1×1 | 0.126ms~240s |
|
EXCCD00440KMA |
0.44M/ICX829AL(M) 1/2”(6.43×4.80) |
8.6X8.3 |
2800mv with 1/30s
2mv with 1/30s |
46@748X578 | 1×1 | 0.20ms~3600s |
|
EXCCD00300KMA |
0.3M/ICX618AL(M)
1/4″(3.58×2.69) |
5.60×5.60 | 1200mv with 1/30s 4mv with 1/30s |
72@640×480 | 1×1 | 0.06ms~40s |
| OTHER HARDWARE CONFIGURATION | |
|---|---|
|
Spectral Range |
380-650nm (with IR-filter) |
|
White Balance |
ROI White Balance/ Manual Temp-Tint Adjustment |
|
Color Rendering Technique |
Ultra Fine Color Engine |
|
Capture/Control API |
Native C/C++, C#/VB.NET, Directshow, Twain, Labview |
|
Recording System |
Still Picture and Movie |
|
Cooling System* |
Natural |
| OPERATING ENVIRONMENT | |
|
Operating Temperature |
-10℃~ 50℃ |
|
Storage Temperature |
-20℃~ 60℃ |
|
Operating Humidity |
30~80%RH |
|
Storage Humidity |
10~60%RH |
|
Power Supply |
DC 5V over PC USB Port |
| SOFTWARE ENVIRONMENT | |
|
Operating System |
Support Microsoft Windows XP / Vista / 7 /8 /10 (32 & 64 bit) |
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory: 2GB or More |
|
|
USB port: USB2.0 High-speed Port |
|
|
Display: 17″ or Larger |
|
|
CD-ROM |
|
