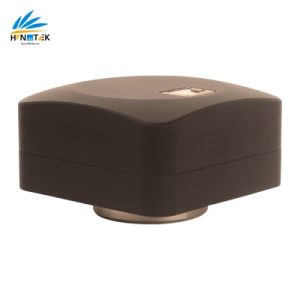

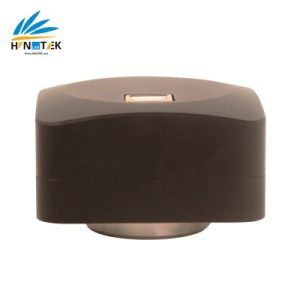

ECMOS adopt SONY Exmor CMOS sensor as the image-picking device and USB2.0 is used as the data transfer interface.
ECMOS hardware resolutions range from 1.2M to 8.3M and come with the integrated CNC aluminum alloy compact housing.
ECMOS comes with advanced video & image processing application ToupView; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
The ECMOS can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.
The basic characteristic of ECMOS cameras are as follows:
- SONY Exmor, Exmor R(Back-illuminated), Exmor RS CMOS sensor with USB2.0 interface;
- Real-time 8/12/14/16bit depth switch(depending on sensor);
- Super high sensitivity up to 2040mV(IMX224);
- Ultra low noise and low power dissipation by using column-parallel A/D conversion;
- With hardware resolution among 1.2M to 8.3M;
- Rolling Shutter;

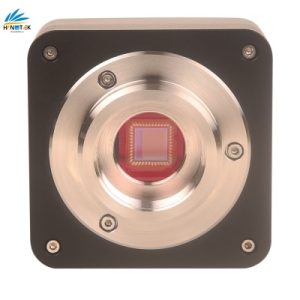

- Standard C-Mount camera;
- CNC aluminum alloy housing;
- USB2.0 interface ensuring high speed data transmission;
- With advanced video & image processing application ToupView;
- Providing Windows/Linux/Mac OS multiple platforms SDK;
- Native C/C++, C#/VB.Net, DirectShow, Twain;
Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal |
FPS/Resolution | Binning | Exposure |
---|---|---|---|---|---|---|
E3CMOS20000KPA EP120000A(Suspended) |
20M/IMX183(C)1″(13.06×8.76) | 2.4×2.4 | 462mv with 1/30s 0.21mv with 1/30s |
5.5 @5440×3648
16 @2736×1824 21 @1824×1216 |
1×1, 2×2, 3×3 |
0.1ms~15s |
E3CMOS20000KMA EM120000A(New) |
20M/IMX183(M)1″(13.06×8.76) | 2.4×2.4 | 776mv with 1/30s 0.21mv with 1/30s |
15.5 @5440×3648
40 @ 4080×2160 48 @2736×1824 |
1×1, 1×1 2×2, 3×3 |
0.1ms~60s |
E3CMOS12000KPA EP112000A |
12M/IMX226(C)1/1.7″(7.40×5.55) | 1.85×1.85 | 280mv with 1/30s 0.1mv with 1/30s |
7.1@4000×3000 30@2048×1080 |
1×1,2×2 | 0.1ms~2000ms |
E3CMOS06300KPA |
6.3M/IMX178(C)
1/1.8″(7.37×4.92) |
2.4×2.4 | 425mv with 1/30s 0.15mv with 1/30s |
15@3072×2048 26@1536×1024 |
1×1,2×2 | 0.244ms~2000ms |
E3CMOS06300KMA |
6.3M/IMX178(M)
1/1.8″(7.37×4.92) |
2.4×2.4 | 425mv with 1/30s 0.15mv with 1/30s |
15@3072×2048 26@1536×1024 |
1×1,2×2 | 0.244ms~2000ms |
E3CMOS05000KPA EP105000A(Suspended) |
5.0M/IMX264(C, GS) 2/3” (8.45×7.07) |
3.45×3.45 | 1146mv with 1/30s 0.15mv with 1/30s |
15@2448×2048 60@1224×1024 |
1×1 | 0.1ms~60s |
E3CMOS05000KMA EM105000A |
5.0M/IMX264(M, GS) 2/3” (8.45×7.07) |
3.45×3.45 | 915mv with 1/30s 0.15mv with 1/30s |
15@2448×2048 60@1224×1024 |
1×1,2×2 | 0.1ms~60s |
E3CMOS03100KPA |
3.1M/IMX036(C)
1/2.8″(5.12×3.84) |
2.5×2.5 | 200mv with 1/30s 0.5mv with 1/30s |
28@2048×1536 28@1024×768 |
1×1,2×2 | 0.244ms~2000ms |
E3CMOS03100KPB |
3.1M/IMX123(C)
1/2.8″(5.12×3.84) |
2.5×2.5 | 600mv with 1/30s 0.15mv with 1/30s |
25@2048×1536 30@1024×768 |
1×1 | 0.244ms~2000ms |
E3CMOS03100KMC |
3.1M/IMX265(M,GS)
1/1.8″(7.07×5.30) |
3.45×3.45 | 1146mv with 1/30s 0.15mv with 1/30s |
53@2048×1536 85@1024×768 |
1×1,2×2 | 0.1ms~15s |
E3CMOS02300KPA |
2.3M/IMX185(C)
1/1.9″(7.20×4.50) |
3.75×3.75 | 1120mv with 1/30s 0.5mv with 1/30s |
38@1920×1200 66@960×600 |
1×1,2×2 | 0.244ms~2000ms |
E3CMOS02300KPB EP102300B |
2.3M/IMX249(C,GS ) 1/1.2“ (11.25×7.03) |
5.86×5.86 | 1016mv with 1/30s 0.15mv with 1/30s |
30@1920×1200 | 1×1 | 0.244ms~2000ms |
E3CMOS02300KMC EM102300C |
2.3M/IMX174(M, GS) 1/1.2” (11.25×7.03) |
5.86×5.86 | 1016mv with 1/30s 0.15mv with 1/30s |
120@1920×1200 | 1×1 | 0.244ms~2000ms |
E3CMOS01500KMA EM101500A |
1.5M/IMX273(M, GS) 1/2.9” (4.968×3.726) |
3.45×3.45 | 1830mv with 1/30s 0.15mv with 1/30s |
228 @1440×1080 530 @720×540 |
1×1 2×2 |
0.244ms~60s |
E3CMOS01200KPA EM101200A |
1.2M/IMX224(C, GS) 1/3” (4.80 x 3.60) |
3.75×3.75 | 2040mv with 1/30s 0.15mv with 1/30s |
60 @1280×960
120 @640×480 |
1×1,2×2 | 0.105ms~15s |
E3CMOS000400KPA EP100400A(New) |
0.4M/IMX287(C) 1/3” (4.97 x 3.73) |
6.90×6.90 | 4584mv with 1/30s 0.15mv with 1/30s |
520 @ 720×540 | 1×1 | 0.244ms~15s |
E3CMOS00400KMA EM100400A(New) |
0.4M/IMX287(M) 1/3” (4.94 x 3.73) |
6.90×6.90 | 7469mv with 1/30s 0.15mv with 1/30s |
520 @ 720×540 | 1×1 | 0.244ms~15s |
For the suspended models , Customer can choose the corresponding E3ISPM models for the fast speed and high performance.
OTHER HARDWARE CONFIGURATION | |
---|---|
Spectral Range |
380-650nm (with IR-filter) |
White Balance |
ROI White Balance/ Manual Temp-Tint Adjustment |
Color Rendering Technique |
Ultra Fine Color Engine |
Capture/Control API |
Native C/C++, C#, Directshow, Twain, Labview |
Recording System |
Still Picture and Movie |
Cooling System* |
Natural |
OPERATING ENVIRONMENT | |
Operating Temperature |
-10℃~ 50℃ |
Storage Temperature |
-20℃~ 60℃ |
Operating Humidity |
30~80%RH |
Storage Humidity |
10~60%RH |
Power Supply |
DC 5V over PC USB Port |
SOFTWARE ENVIRONMENT | |
Operating System |
Support Microsoft Windows XP / Vista / 7 /8 (32 & 64 bit) |
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
Memory: 2GB or More |
|
USB port: USB2.0 High-speed Port |
|
Display: 17″ or Larger |
|
CD-ROM |
