XSP-600TM Series Biological Microscope

Specification Model

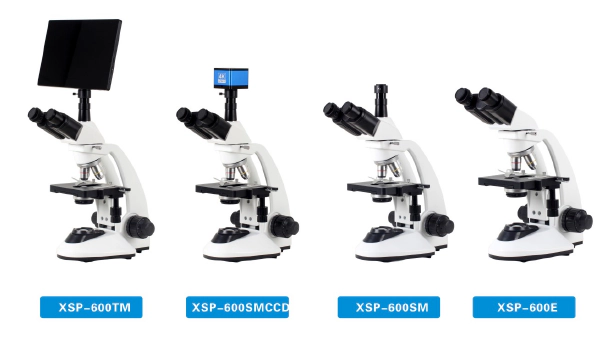

Component Details XSP-600TM XSP-600SMCCD XSP-600SM XSP-600E
Optical System Finite conjugate optical system ● ● ● ●
Eyepiece WF10X / WF16X ● ● ● ●
Object lens Achromatic objective: 4X, 10X, 40X(S), 100X(S, Oil) ● ● ● ●

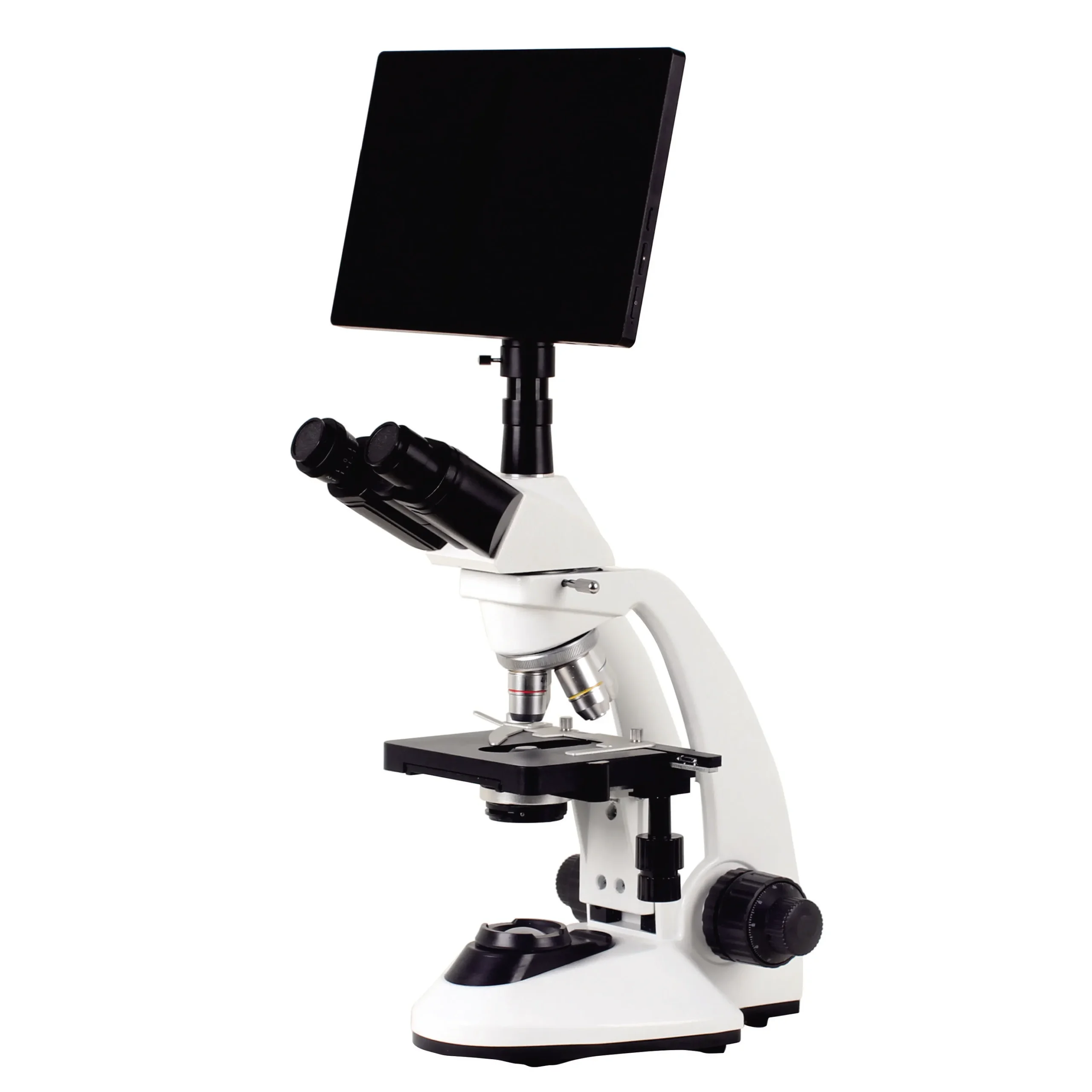

Viewing head Trinocular head, 30° inclined, Interpupillary Distance 50-75mm, with 10.1inch display ●

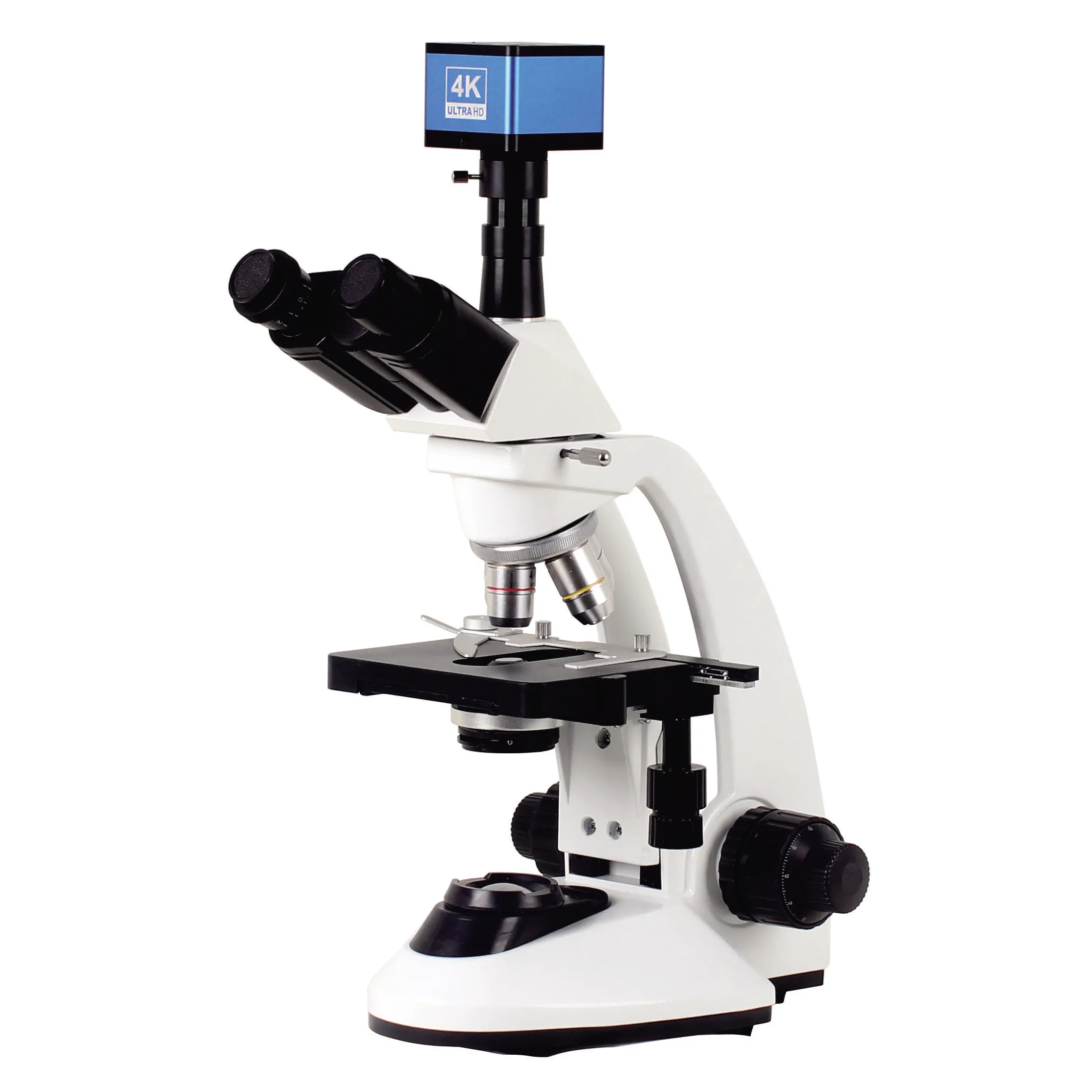

Trinocular head, 30° inclined, Interpupillary Distance 50-75mm, with 4K high definition camera ●

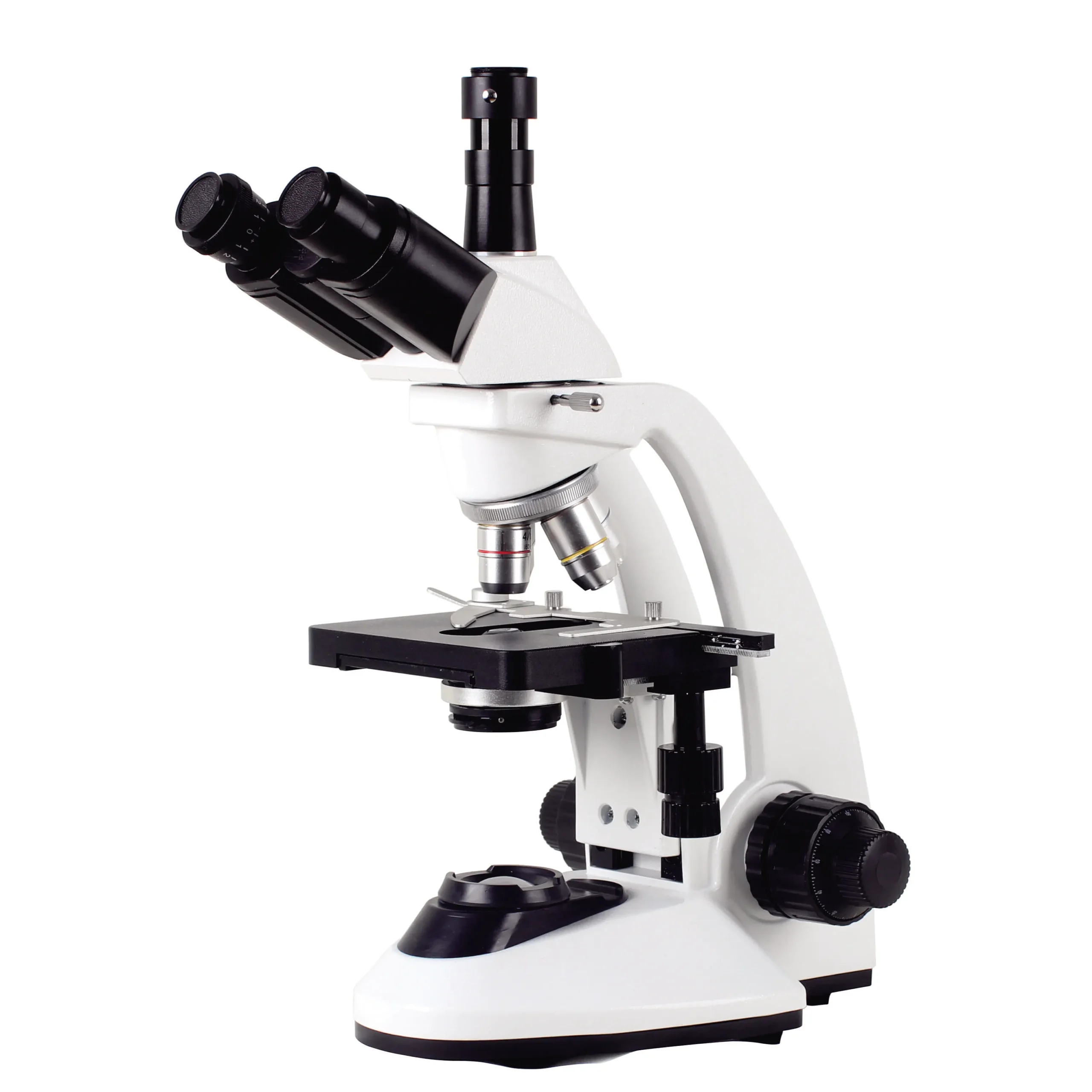

Trinocular head, 30° inclined, Interpupillary Distance 50-75mm ●

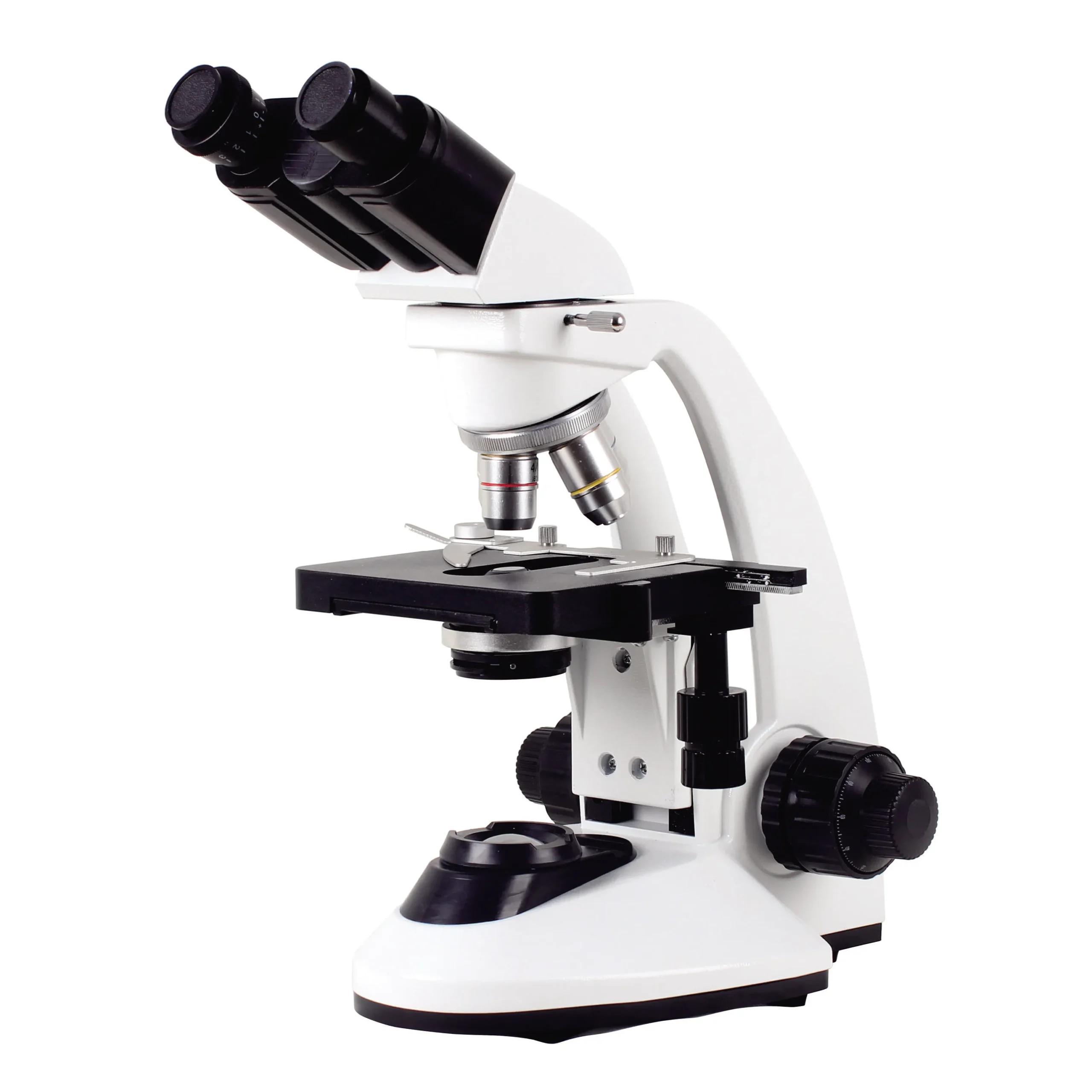

Binocular head, 30° inclined, Interpupillary Distance 50-75mm ●
Converter Four-hole nosepiece ● ● ● ●
Focusing mechanism Coaxial coarse and fine focusing mechanism, fine adjustment accuracy 0.002mm, focusing range 30mm ● ● ● ●
Mechanical stage Double-layer mechanical stage, size 132×140mm, movement range 75×45mm ● ● ● ●
Condenser NA 1.25 Abbe condenser with variable aperture diaphragm and filter ● ● ● ●
Illuminator LED / Halogen lamp, adjustable brightness, built-in transformer ● ● ● ●
Power AC 110/220V ±10%, 50/60Hz ● ● ● ●
