Description
- L800 series biological microscopes are equipped with monocular, achromatic objectives and wide field eyepieces. They have provides clearimage, wide field, convenience operation. They can be used for medicine agriculture area widely. They are the ideal instruments in medicaltreatment, teaching demonstration.Features
▲ With wide field eyepieces and achromatic objectives, the field of view is widely and clear
▲ Separate coarse/fine system focus or coaxial coarse/fine focus system can be chosen, minimum division of fine focusing: 4μm
▲ 220V/110V 20W incandescent lamp transmission illumination
Specification
- Standard Configuration
ModelL800AL800BEyepieceWide field WF10X(Φ18mm)ObjectiveAchromatic 4X/0.10Achromatic 10X/0.25Achromatic 40X/0.65(Spring)Achromatic 100X/1.25(Spring, oil)Eyepiece tubeMonocular,360˚ rotatable (Inclination of 45˚)Monocular,360˚ rotatable (Inclination of 45˚)Focus systemSeparate coarse/fine system focus. Minimum division of fine focusing: 4μmCoaxial coarse/fine focus system. Minimum division of fine focusing: 4μmNosepieceQuadruple(Frontward ball bearing outer locating)StageFixed, with slide moving holder Size:120mmX120mm, move range:70mmX30mmAbbe condenserN.A.1.25 Spiral adjustmentFilterBlue filterFrosted filterCollectorFor incandescent lampLight source220V/110V 20W, Incandescent lampOptional accessoriesNameSort/Technique parameterNO.EyepieceWide field WF16X(Φ11mm)1051016Point 10X(Φ18mm)1043010NosepieceTriple (Frontward ball bearing outer locating)030001FilterGreen filter115002Yellow filter115003Light sourceFluorescent lamp5W,110V/220V Can be choose071001LED IlluminationHigh brightness white073001Reflecting mirrorPlane-concave reflecting mirror with stand074001CameraPhotographyUSB Output1096001VIDEO Output1108001Adapter(For LED illumination)Input: 230V¡«50/60HZ Output: 9V 500mA101001Input: 110V¡«50/60HZ Output: 9V 500mA101002

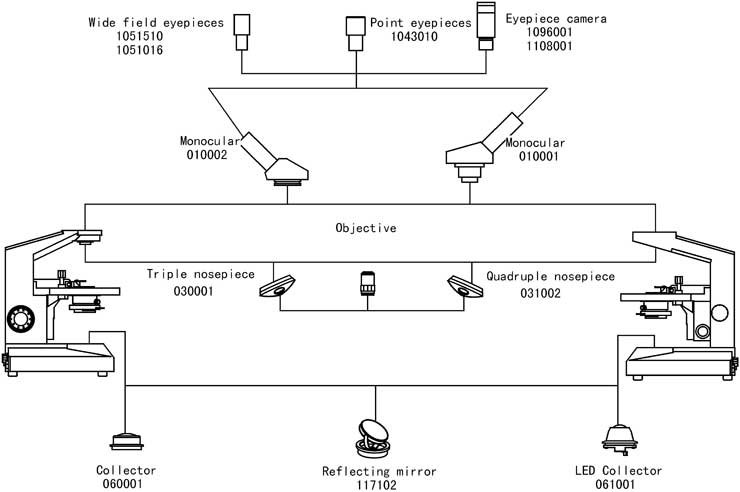

Diagram

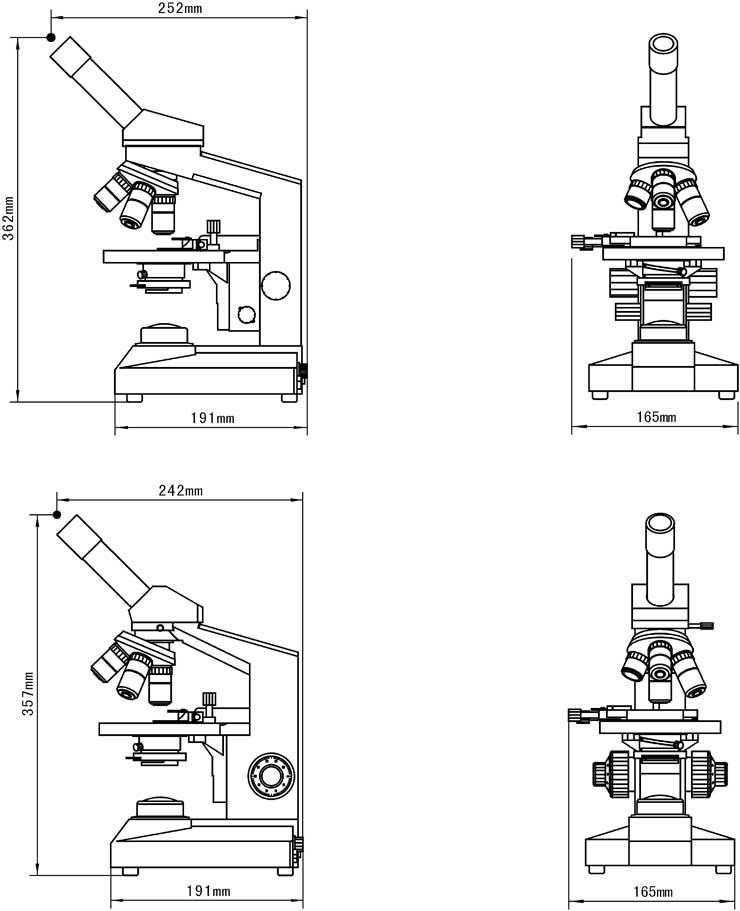

Dimensions
