Description

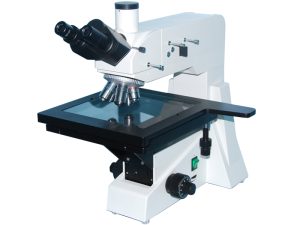

- XJL-101 series reflected metallurgical microscopes are suitable to observe the microscopical surfaces of the non-transparent object. They are equipped with large move range mechanical stages, reflected vertical illumination and set polarizer device in trinocular. They have clear and high-contrast picture beautiful sculpt, convenient control and etc. they are the ideal instrument in research work in metallography, mineralogy, precision engineering, electronics and etc. They are suitable for scientific research, teaching demonstration in the colleges and factory.
Features
▲ With plan, achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field.
▲ With large move range mechanical stages can move quickly and slowly.▲ 6V 20W halogen lamp, adjustable brightness. - ▲ Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 0.7μm.
Specification
- Standard Configuration
Model XJL-101 XJL-101A Eyepiece Wide field WF10X(Φ18mm) Objective Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12 Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25 Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40 Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60 Plan achromatic objectives with long working distance (no cover glass) PL L80X/0.80 Eyepieces tube Trinocular, Inclination of 30˚, (Analyzer with field diaphragm to switch) Vertical illumination unit 6V 20w halogen lamp, brightness control. Vertical illumination with field diaphragm, aperture diaphragm and polarizer,(Y,B,G)filter and frosted filter Focus system Stage adjustable, Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 0.7μm. Nosepiece Quintuple(Frontward ball bearing inner locating) Stage Three layer mechanical Size:250mmX230mm,movingrange:154mmX154mm
Three layer mechanical
Size:280mmX270mm,movingrange:204mmX204mm
