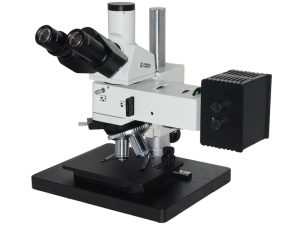

ICM-100DIC Differential Interference Contrast Metallurgical Microscope

Description
  • ICM-100DIC Industry check and measure microscopes are suitable to observe surfaces structure and geometry of workpiece. It is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, DIC observation. Lift or down the optical and illumination unit along the leader to adjust the distance from stage to objective, so that enables using for different thickness workpiece. Quickly and effectively locate the observation part of the workpiece by moving the mechanical stage. The motion of the focusing is the roll that the roller bearing moved guiding the trigon slideway so that the moving process is smooth. This is the ideal optical instrument for checking and measure in the field of the precision part, integrated circuit, packing material etc.



Specification
  • Technical specifications (standard)
    Eyepiece
    SWF10X wide field plan achromatic eyepiece and field of view number is Φ22mm,
    Infinity plan achromatic objectives
    ICM-100
    (Equipped bright field objective)
    LMPlan5X/0.12 working distance:15 mm
    LMPlan10X/0.3 working distance:10.5 mm
    LMPlan20X/0.4 working distance:4.5mm
    PL L50X/0.70 working distance:3.68 mm
    Eyepiece tube
    Trinocular inclined 30˚, can be shot in 100% light flux.
    Focusing system
    Coaxial coarse/fine focus system, with tension adjustable device, minimum division of fine focusing: 1.0μm.
    Nosepiece
    Quintuple (Backward ball bearing inner locating)
    Stage
    Mechanical stage,overall size:185mmX140mm,moving range: 35mmX30mm
    Illumination system
    ICM-100DIC
    12V50W halogen and brightness enable control.
    Integrated field diaphragm, the aperture diaphragm, and puller type polarizer.
    (Equipped with frosted glass and yellow, green and blue filters)
    DIC group
    5X/10X/20X DIC group
