L3030

SKU: l3030 Category: Tag:

Description

Description

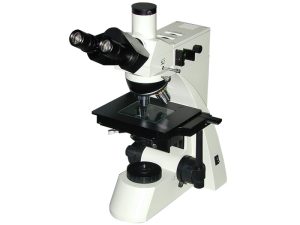

  • L3030 reflected and transmitted microscope is suitable to observe surfaces of the non-transparent object or transparent object. It is equipped with vertical illuminator, plan achromatic objectives with long working distance (no cover glass), wide-field eyepieces and set polarizer device in trinocular. It provides clear and high-contrast image, beautiful sculpt, convenient control, etc. It is the ideal instruments in research work in biology, metallography, mineralogy, precision engineering, electronics, etc. It is suitable for scientific research, teaching demonstration in the colleges and factory.Features
      With plan, achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field.

      Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
      With vertical illuminator and transmitted illuminator, can observe surfaces of the non-transparent object or transparent object.
      6V 20W halogen lamp, adjustable brightness.
      Trinocular, can switch to observe normally or to observe the Polarize, can send 100% of light to the binocular eyepieces or to the top port.






Specification
  •  Standard Configuration
    Model
    L3030
    Eyepiece
    Wide field  WF10X(Φ18mm)
    Objective
    Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12
    Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25
    Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40
    Plan achromatic objectives with long working distance (no cover glass) PL L50X/0.70
    Eyepieces tube
    Trinocular, Inclination of 30˚, (Analyzer with field diaphragm to switch)
    Vertical illumination unit
    6V 20w, halogen lamp, adjustable brightness
    Vertical illumination with field diaphragm, aperture diaphragm, and polarizer,(Y,B,G)filter and Ground glass
    Focus system
    Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm.
    Nosepiece
    Quadruple(Backward ball bearing inner locating)
    Stage
    Double layer mechanical (Size:210mmX140mm,moving range:63mmX50mm)
    Vertical illumination unit
    Abbe condenser  NA.1.25  Rack & pinion adjustable
    Blue filter and Ground glass
    Collector for illumination with halogen lamp (With field diaphragm )
    6V 20w, halogen lamp, adjustable brightness

Catalog

Download Brochure

Diagram

Dimension

Optional Accessories

Name
Sort/Technique parameter
NO.
Eyepiece
Wide field  WF16X(Φ11mm)
1051016
Dividing  10X(Φ18mm) 0.1mm/Div
1121010
Objective
Plan achromatic objectives with long working distance (no cover glass) PL L 40X/0.60
2250140
Plan achromatic objectives with long working distance (no cover glass) PL L 60X/0.75(Spring)
2250160
Plan achromatic objectives with long working distance (no cover glass) PL L 80X/0.80
2250180
Plan achromatic objectives with long working distance (no cover glass) PL L 100X/0.85(Spring)
2250111
Plan achromatic objectives (no cover glass) PL 100X/1.25  (Spring, oil)
2240111
Nosepiece
Quintuple Backward ball bearing inner locating
032002
Filter
Green filter
115002
Yellow filter
115003
CCD adapter
0.4X
810001
0.5X
810004
1X
810002
0.5X with dividing 0.1mm/Div
810003
Camera
DV-1 With USB & video output
800001
DV-2 With USB output
800003
DV-3 With video output
800005
Photo unit
2.5X/4X Change over photograph attachment with 10X viewing eyepiece
840001
4X Focusing photograph attachment
840002
MD Adapter
840003
PK Adapter
840004
Digital camera adapter
CANON(A610,A620,A630,A640)
820001
