Description

Description

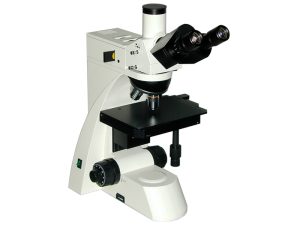

  • L3003 reflected metallurgical microscope is suitable to observe the surfaces of the non-transparent object. It is equipped with vertical illuminator, plan achromatic objectives with long working distance (no cover glass), wide-field eyepieces and set polarizer device in trinocular. It provides clear and high-contrast picture, beautiful sculpt, convenient operation, etc. It is the ideal instruments for research work in metallography, mineralogy, precision engineering, electronics, etc. It is suitable for scientific research, teaching demonstration in the colleges and factory.

    Features
    ▲  With plan, achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field.
    ▲  Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
    ▲  6V 20W halogen lamp, adjustable brightness.
    ▲  Trinocular, can switch to observe normally or to observe the polarized, can send 100% of light to the binocular eyepieces or to the top port.




Specification
  •  Standard Configuration
    Model
    L3003
    Eyepiece
    Wide field  WF10X(Φ18mm)
    Objective
    Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12
    Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25
    Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40
    Plan achromatic objectives with long working distance (no cover glass) PL L50X/0.70
    Eyepieces tube
    Trinocular, Inclination of 30˚, (Analyzer with field diaphragm to switch)
    Vertical illumination unit
    6V 20W, Halogen lamp, Adjustable brightness
    Vertical illumination With field diaphragm, aperture diaphragm and polarizer,(Y,B,G)filter and Ground glass
    Focus system
    Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 2μm.
    Nosepiece
    Quadruple Backward ball bearing inner locating
    Stage
    Double layer mechanical ( Size: 210mmX140mm,moving range:63mmX50mm)
