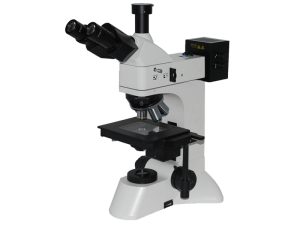

L3230 DIC Differential Interference Contrast Metallurgical Microscope

Description
  • L3230DIC Differential Interference Contrast Metallurgical microscopes are suitable for differential-interference -contrast-observation in the surface of un-transparent object and micro-observation in the transparent object. It equipped excellent UIS optical system and the notion of modularization function design, provide excellent optical performance and the update of the system. The product has the beautiful configuration, easy operation, clear image, so it is the perfect research instrument for detection and analytic of the precision engineering, etc.






Specification
  • Standard Configuration
    Model
    L3230DIC
    Eyepiece
    Achromatic wide field SWF10X(Φ22mm)
    Objective
    Infinity plan achromatic objectives with long working distance (no cover glass)
    LMPlan5X/0.12 Work distance:18.2 mm
    LMPlan10X/0.25 Work distance:20.2 mm
    LMPlan20X/0.35 Work distance:6.0 mm
    PL L40X/0.60 (spring) Work distance:3.98 mm
    DIC observation system
    5X/10X/20X DIC  push-pull group

    Eyepieces tube
    Trinocular, Inclination of 30˚,Brinocular
    Epi- illumination system
    12V 50W, halogen lamp, adjustable brightness
    Integrated field diaphragm, aperture diaphragm and (Y,B,G, ground glass) switching device. Push-pull type analyzer and polarizer.
    Focus system
    Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm.
    Nosepiece
    Quintuple (Backward ball bearing inner locating)
    Stage
    Double layer mechanical (Size:210mmX140mm,moving range:63mmX50mm)
    Transmitted illumination
    system
    Abbe condenser  NA.1.25  Rack & pinion adjustable
    Blue filter and Ground glass
    Collector for halogen lamp illumination and integrated field diaphragm
    12V 30W halogen lamp, adjustable brightness

Catalog

Download Brochure

Diagram

Dimensions

Optional Accessories

Name
Sort/Technique parameter
NO.
Eyepiece
Dividing eyepiece(field number:¦µ18mm)    0.10mm/Div
1121010
Objective
Infinity plan achromatic objectives with long working distance (no cover glass)

PL L50X/0.70 (spring) Work distance:3.68mm
2260150
PL L60X/0.70 (spring) Work distance:2.08mm
2260160
PL L80X/0.80 (spring)  Work distance:1.25 mm
2260180
PL L100X/0.85 (spring and dry)  Work distance:0.40mm
2260111
Nosepiece
 Quintuple Backward ball bearing inner locating
032001
Filter
Green filter
115002
Yellow filter
115003
CCD adapter
0.5X
810004
1X
810002
0.5X with dividing 0.1mm/Div
810003
Camera
DV-1 Video output & USB output

DV-130 / 300 / 500 / 900 with USB output

DV-3 With video output(380/520 TV line)

Digital camera adapter
CANON(EF)  NIKON( F)
820001
