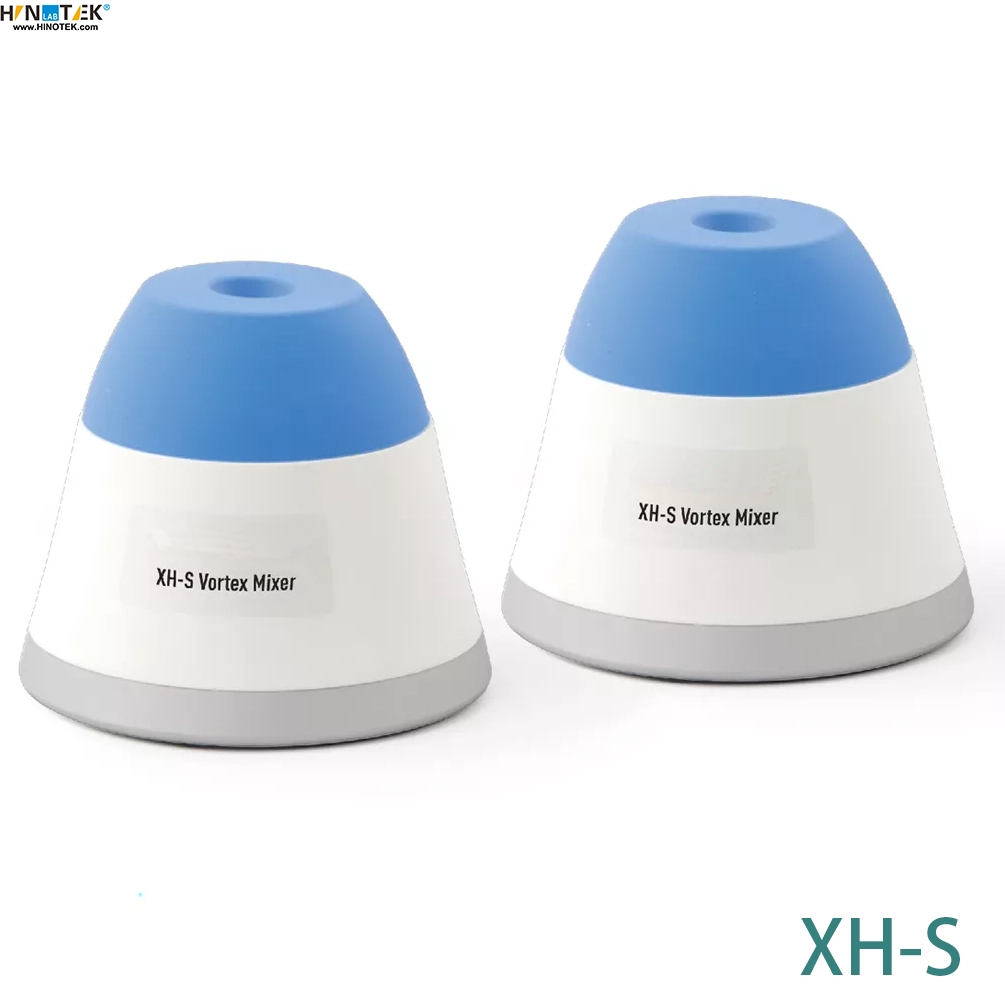

XH-S Vortex Mixer
Features:
◎ For small amount of sample mix;
◎ Touch operation;
◎ Fixed speed: 3000rpm;
◎ Small and beautiful;
◎ DC brushless motor, stable performance.

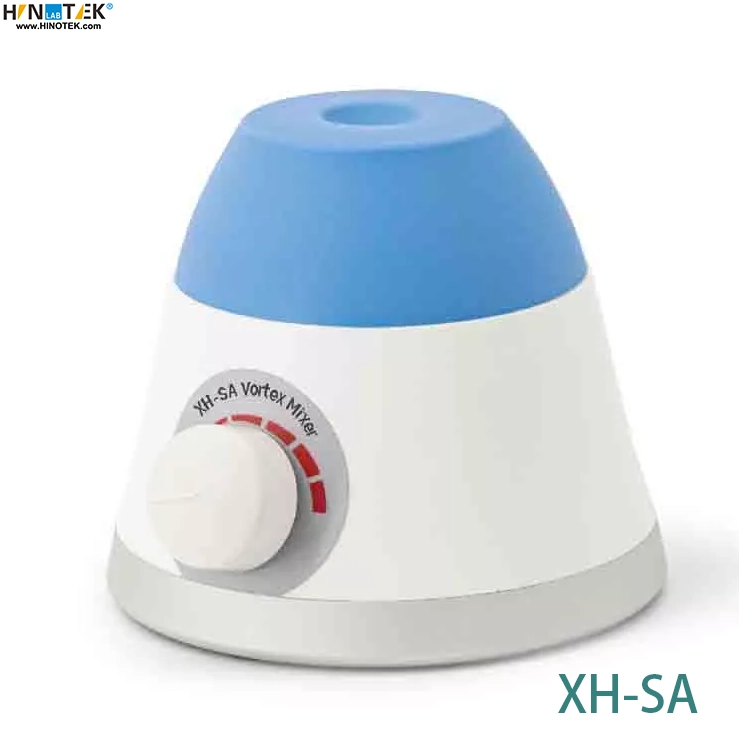

XH-SA Vortex Mixer
Features:
◎ For small amount of sample mix;
◎ Touch operation;
◎ Fixed speed: 3000rpm;
◎ Small and beautiful;
◎ DC brushless motor, stable performance.
Spec:
| Model | XH-S | XH-SA |
| Operation method: | Rapid orbital motion | Rapid orbital motion |
| Eccentric diameter: | 4.5mm | 4.5mm |
| Rating speed: | 3000rpm | 0-3000rpm |
| Running mode: | Jog | Continous, Jog |
| Working plate size: | For small containers with diameter ≤30 mm | For small containers with diameter ≤30 mm |
| Input voltage(frequency): | AC100-240V (50/60Hz) | AC100-240V (50/60Hz) |
| Permissible relative moisture: | 80% | 80% |
| Output power: | 5W | 5W |
| Protective class: | IP43 | IP43 |
| Permissible ambient temperature: | 5-50°C | 5-50°C |
| Dimensions: | Ø100×90mm | Ø100×90mm |
| Net. Weight: | 0.6kg | 0.6kg |
