NDJ/SNB Series High Performance-cost ratio digital viscometer
The viscometer is extensively used plants and scientific research institutes of oil, grease, oil paint, coating material, pulp, textile, food, drug, adhesive agent and cosmetics, etc.
The instrument is choose by clients in each trade because of its advantage in accurate, rapid, direct and simple measurement.
Instrument Feature:
It is integrated with the internationally most updated microcomputer driver and imported stepping motor which rotates stably and reliably in an accurate rotating speed.
The horizontal displaying unit is on the front of the viscometer, and can be adjusted conveniently (new function).
The measuring range and viscosity value are accurately displayed with two digits after the decimal point, i.e. 0.01mPa.s (new function).
The function of timed measuring is practicable for measuring any non-Newtonian liquid (new function).
By the printing interface, a micro-printer can be connected to print various date (Optional).
Instrument main components:
Viscometer host machine.

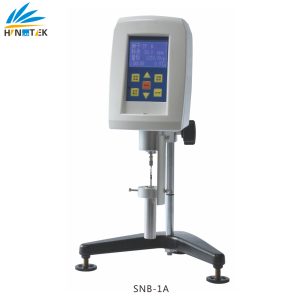

Rotor #1~#4, or rotor #21, #27, #28, #29 (SNB-1A)
Rotor protective frame.
Sample Cylinder (SNB-1A)
Triangular base and column
Aluminum alloy case
Power adapter
Optional Accessories:
Ultra-low viscosity rotor (rotor #))
Constant temperature circular bath
Temperature probe
Viscosity standard liquid
Glass Jacket Cup
Software
Electric heater
Printer
Spec:
| Model | NDJ-9S | NDJ-5S | NDJ-8S/SNB-1 | SNB-2 | SNB-1A |
| Measuring Range | 1~100000 cp | 1~2000000 cp | 1~6000000 cp | 100000 cp~ 200000 cp | |
| Rotating Speed | 6/12/30/60 | 0.3/0.6/1.5/3/6/12/30/60 | 0.1/0.3/0.6/1.5/3/6/12/30/60 | 0.5/1/2/5/10/20/50 | |
| Standard rotor | 1#, 2#, 3#, 4# | 21#, 27#, 28#, 29# | |||
| Sample consumption | 250ml~400ml | 15ml~25ml | |||
| Measuring Accuracy | ≤±1.0% (Full Range) | ≤± 2.0% (Full Range) | |||
| Repeatability | ±0.5% | ||||
| Measuring range display | Automatic display max value | ||||
| Scan/Timing | The optimal combination of rotor and rotating speed can be given automatic according the sample viscosity, timing in 0~60 min, improving the data repeatability in non-Newtonian liquid measurement | ||||
| External dimension | 300*300*450 | ||||
| Net Weight | 4.8Kg | ||||
| Power Supply | 110~230V 50/60Hz. | ||||
