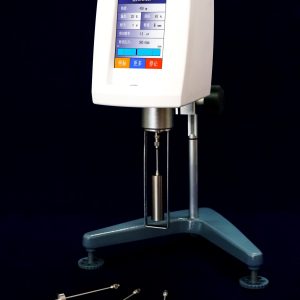

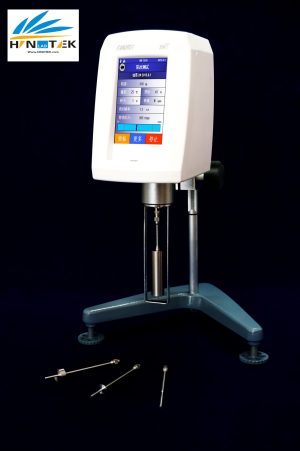

T series rotary viscometer perfect blend in touch screen technology, with a kind of fashion of modern high technology to measure the viscosity of rapid, accurate, convenient. Powerful, liquid crystal display (LCD) viscometer is far from before.
Self-built 30 groups of test program to help users to quickly and accurately obtain the viscosity and the related data of the sample.5 inches large color touch screen can be comprehensive, vividly show various parameters and working conditions. With measuring parameters, display more rich in content, operation is convenient, intuitive, high measurement precision, reading speed stability, strong anti-jamming ability, wide working voltage and other obvious advantages. Can completely replace similar imported equipment, leading the new trend of science and technology of domestic viscometer.
Main features:

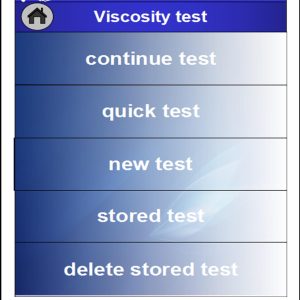

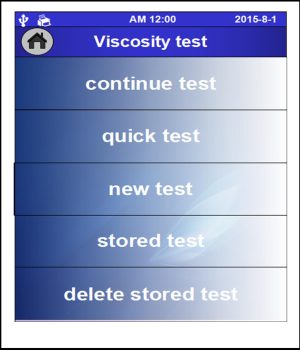

- the ARM technology, built-in Linux system. Simple operation interface, through the test program to create and data
Viscosity test analysis, quickly and easily; - Viscosity measurement value accurately, each range with computer automatic calibration and high precision, small error;

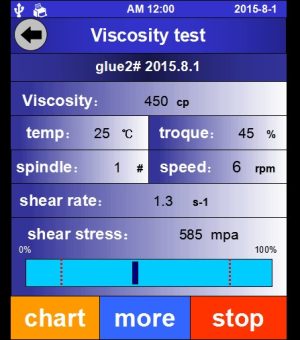

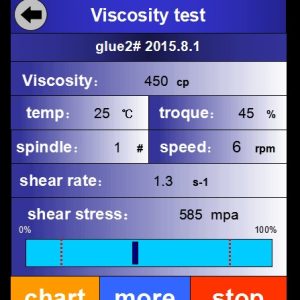

- Shows rich content: in addition to viscosity, and temperature, shear rate, shear stress, the measured value of full range value percentage (graphics), the overflow alarm, automatic scanning, the rotor speed under the combination of maximum measuring range, date, time, etc. And in the case of the known density kinematic viscosity, greatly meet the measurement requirement of the user
- The function is all ready, but timing measurement, self-built 30 test program, access 30 group measurement data, the viscosity curve, print data and curve in real time, etc.
- lead level, the level adjustment intuitive convenient
- Optional temperature probe, viscometer constant temperature bath, thermostatic cup, printer, standard viscosity sample (standard silicone oil), etc.
- The operating system in English and Chinese.
Widely used in the need to measure the viscosity of fluid and fluid under high temperature and melting.Include paint, coatings, cosmetics, printing ink, paper pulp, food, oil, latex, starch, solvent-based adhesives, biochemical products, etc.
Technical Parameters
| Model | NDJ-5T | NDJ-9T | NDJ-8T | |
| Control/display mode | 5 inches color touch screen | |||
| speed（r/min） | 3/6/12/30/60 | 0.3/0.6/1.5/3/6/12/30/60 | ||
| Measuring rangemPa.s | 1～100,000 | 1～2,000,000 | ||
| （Measuring 10 under low viscosity, equipped with 0 # rotor） | ||||
| rotor | 1, 2, 3, 4#（ standard）
0#转子（ standard） |
|||
| Measurement error (Newtonian liquid) | ±1% | ±0.5% | ±1% | |
| Repetitive error (Newtonian liquid) | ±0.5% | ±0.25% | ±0. 5% | |
| Timing function | standard | |||
| Temperature measurement function | The standard temperature sensor interface temperature sensor (selected) | |||
| Automatic scanning function | Automatic scanning and recommend the best combination of rotor and speed | |||
| According to maximum measuring range | Combination of rotor and speed automatically according to the selected viscosity range can be measured | |||
| Should show shear/shear rate | standard | |||
| Automatic display kinematic viscosity | Need to input the density of the sample | |||
| Self-built measurement program | Can save up to 30 groups (including the rotor, rotational speed, temperature, time, etc.) | |||
| Save the measurement results | Can save up to 30 sets of data (including viscosity, temperature, rotating speed of rotor, and the shear rate, Shear stress, time, density, kinematic viscosity, etc.) | |||
| Viscosity curve | Real-time display viscosity curve | |||
| Data, curve can print (standard equipped with print interface, to choose and buy a printer) | ||||
| Data output interface | standard | |||
| Constant temperature parts | Option (viscometer constant temperature trough, thermostatic cup, etc.) | |||
| Working power supply | Wide working voltage (110 v / 60 hz or 220 v / 50 hz) | |||
| Overall dimensions | 300 × 300 × 450（mm） | |||
Option:

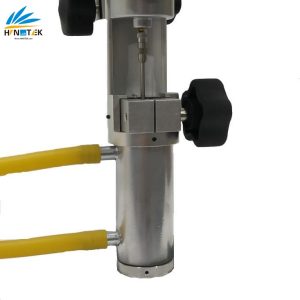

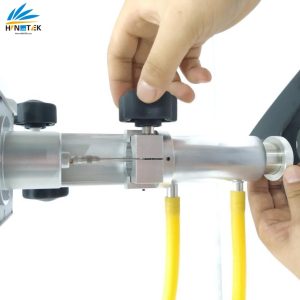

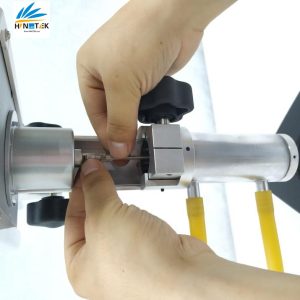

- Enhanced Ultra Low Viscosity Adapter (ULR)
Designed for low-viscosity fluid measurements, two specifications are available: jacket type and non-jacket type, with a minimum detection limit of 1 cP, depending on the type of viscometer used - Temperature probe (temperature sensor)
High precision temperature measuring chip with
A/D conversion
Measuring range: 0 – 100
Measurement accuracy: 0.1 - Micro thermal printer
Can be directly connected with the viscometer
print data
Print curve - Viscometer special thermostatic bath
Model: DC0506W:
Temperature range: -5 to 100
Temperature control precision: 0.1
Model: CH1006N:
Temperature control range: room temperature
plus 10 degrees Celsius to 100 degrees C
Temperature control precision: 0.1
The circular opening can be placed 200ml beaker, direct measurement of viscosity. The outer loop has the function
of constant temperature cup can also be controlled constant temperature liquid lead to external, to meet different test requirements.
