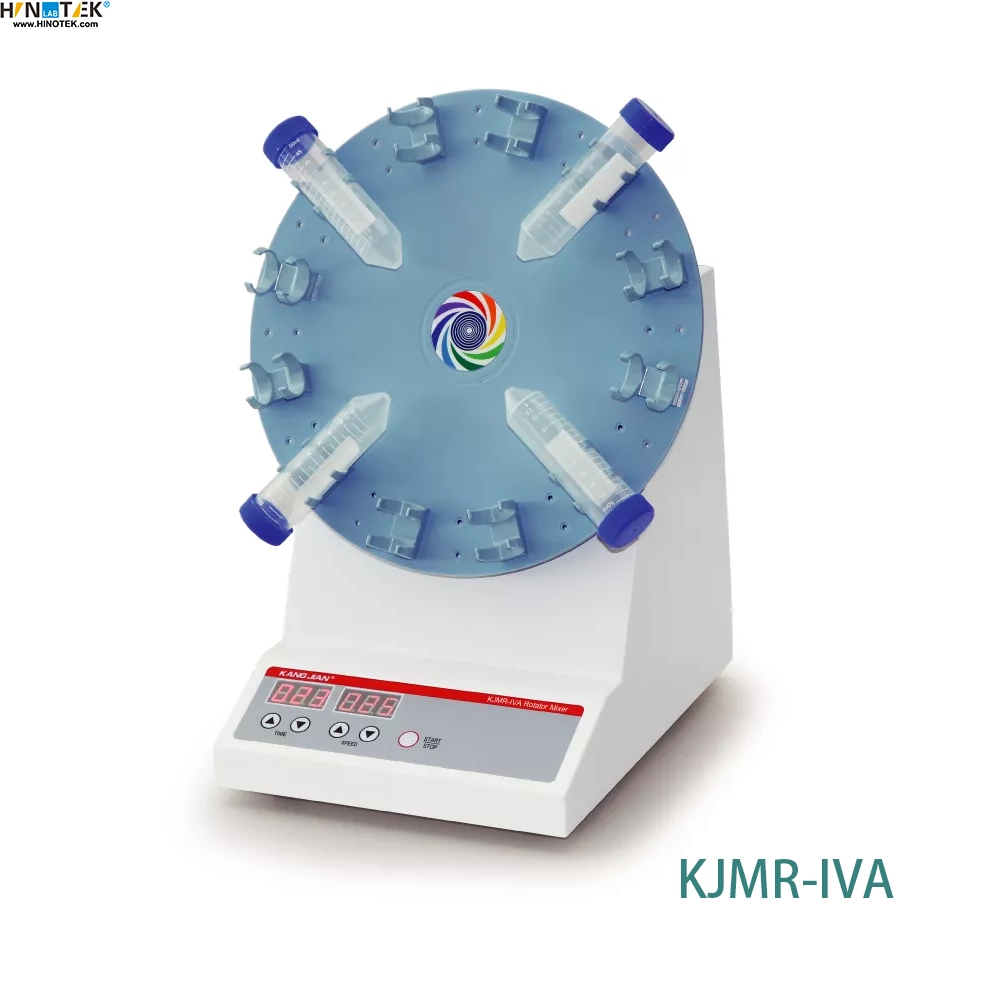

KJMR-IVA Blood Mixer

Description:
KJMR-IVA is the upgrade model of KJMR-IV Digitally controlling on the speed and time is applied to this new model on the basis of the old model function which is clearly displayed by LED. It would be more convenient for the operator and improve the accuracy of the experiment.

Specification:

Rotation Speed: 5-35 r/min
Timing range: 0-999min
Tube Qty: 1-24 pcs
Tube diameter: Ø8-Ø15±0.1mm
Plate Diameter: Ø300mm

Angle of Inclination: 38º
Voltage: AC 100-240V(50/60Hz)
Power Rating: 10W
Operation mode: Continuous/Timing

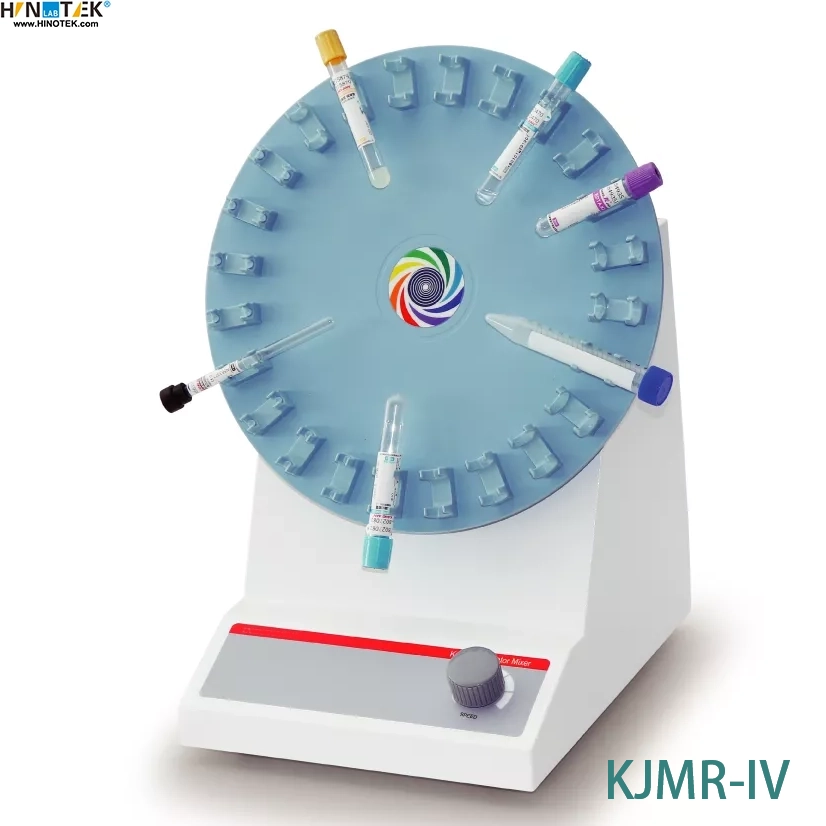

KJMR-IV Blood Mixer

Description:
The KJMR-IV Blood Mixer is specially designed for vacuum blood tube mixing. It is an ideal instrument of
blood corpuscle analyzer and blood flow analyzer for full sample mixing in laboratories with high mixing efficiency and consistency.
The instrument is made of silicone rubber which can well protect the surfaces of the vessels.

Specification:
Rolling Speed: 6-32 rpm
Tube Qty per : 1-24 pc
Tube diameter: Ø8~Ø15±0.1mm
Working Disc Diameter: Ø300mm
Angle of Inclination: 38°
Voltage: AC220V (50/60Hz)
Power Consumption: 12W
Working System: continue
