BSC-1100IIB2-X Series Biosafety Cabinet (Class II B2)

ADVANTAGE

  1. Time reserve function.
  2. Motorized front window.
  3. HEPA filter life and UV life indicator.
  4. Automatic air speed adjustable with filter block.
  5. With memory function in case of power-failure.
  6. Work area surrounded by negative pressure, it can ensure maximum safety in work area.
  7. Most accessories are standard, which saves your money. There is no need to pay more.
  8. Audio and visual alarm (filter replacement, window over height, abnormal air flow velocity, etc).
  9. Remote control. All functions can be realized with it, making the operation much easier and more convenient
  10. Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; blower and front window
  11. Foot switch. Adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement.



TECHNICAL PARAMETERS



ModelBSC-1100IIB2-XBSC-1300IIB2-XBSC-1500IIB2-XBSC-1800IIB2-X
Internal Size

(W*D*H)

940*600*660 mm1150*600*660 mm1350*600*660mm1700*600*660 mm
External Size

(W*D*H)

1100*750*2250mm1300*750*2250mm1500*760*2250mm1873*775*2270mm
Tested OpeningSafety Height = 200 mm(8’’)
Max Opening420mm(17’’)420mm(17’’)500mm(20’’)480mm(20’’)
Inflow Velocity0.53±0.025 m/s
Down flow Velocity0.33±0.025 m/s
Pre-Filter

HEPA Filter

Washable.

Two, 99.999% efficient at 0.3 um. Filter life indicator.

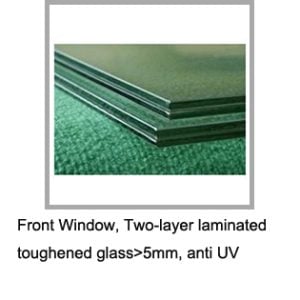

Front WindowMotorized. Two-layer laminated toughened glass ≥ 5mm. Anti UV.
NoiseNSF49 ≤ 61 dB / EN1246949 ≤ 58 dB

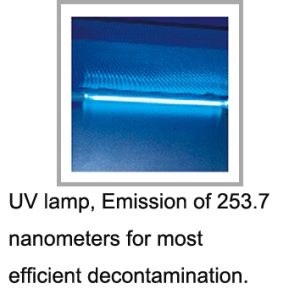

UV Lamp30W*130W* 140W* 140W*1
UV timer, UV life indicator, emission of 253.7 nanometers

for most efficient decontamination.

Illuminating LampLED LampLED LampLED LampLED Lamp
12W*214W*216W*216W*2
Illumination≥1000Lux
Consumption700W850W900W1200W

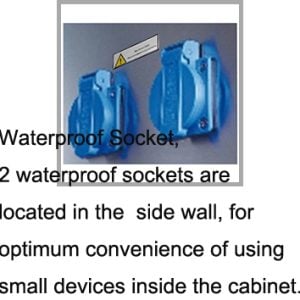

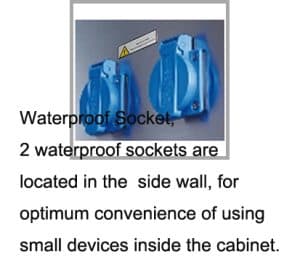

Waterproof SocketsTwo, total load of two sockets: 500W

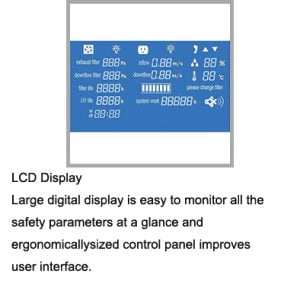

DisplayLCD display: exhaust filter and down flow filter pressure, filter and UV lamp working time,

inflow and down flow velocity, filter life, humidity and temperature, system working time etc.

Control SystemMicroprocessor
Airflow System0% air recirculation, 100% air exhaust
AlarmAbnormal airflow velocity; Filter replacement; Front window at unsafe height.
Exhaust Duct4 meters PVC duct, Diameter:300mm

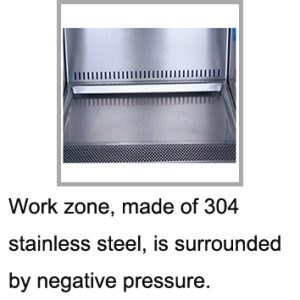

MaterialWork Zone: 304 stainless steel
Main Body: Cold-rolled steel with anti-bacteria powder coating.
Work Surface Height750mm

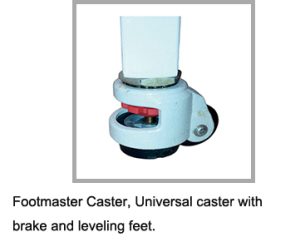

CasterFoot master caster
Power SupplyAC 220V±10%, 50/60Hz; 110V±10%, 60Hz (110V/60Hz is not applicable to BSC-1800IIB2-X)
Standard AccessoryIlluminating lamp, UV lamp*2,base stand, remote control, foot switch, exhaust blower,

exhaust duct, drain valve, waterproof sockets*2, pipe strap*2

Optional AccessoryWater and gas tap, Electric height adjustable base stand
Gross Weight246kg276kg302kg408kg
PackageMain Body1230* 990* 1810 mm1460*1050*1800 mm1650*990*1810 mm2000*950*1820 mm
Exhaust Blower (W*D*H)970* 810* 630 mm970* 810* 630 mm970* 810* 630 mm970* 810* 680 mm
