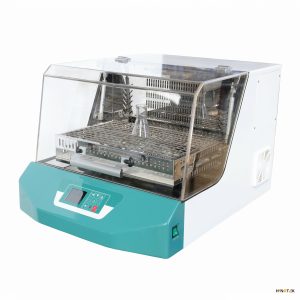

FS-50B Series Constant Temperature Shaking Incubator
Characteristics
Small desktop constant temperature shaking culture equipment.
Large-screen LCD, can be continuous, accurate, real-time shows temperature, speed, working time. menu operation interface, easy to operate.
Microcomputer control temperature and oscillation frequency with timing functions, built-in power-off protection can automatically resume operation after power on.
Unique air duct breeze circulation, with better temperature uniformity; large observation window. Easy to observe sample, easy to be opened and closed
Speed control : intelligent brushless DC motor, high speed accuracy, slow start design, auto lock if speed out of control. adjustable starting speed to prevent the splash of shake flask liquid.
Studio at the bottom waterproof, Spills will not affect the normal operation of the machine.
With function of cutting off UV lamp by open door.
Patent No. : ZL 2018 3 0095051.6
Technical Specifications
| Model | FS-50B | FS-70B | |
|---|---|---|---|
| Shaking Mode | Cyclotron Oscillation | ||
| Function | Amplitude | Φ 20mm | |
| Temp. Resolution | 0.1°C | ||
| Temp. Motion | ± 0.1°C | ||
| Temp. Uniformity | ± 1°C | ||
| Temp. Range | RT+5 ~ 65°C | 4 ~ 65°C (25°C) | |
| Rotary Speed | 30 ~ 300rpm | 30 ~ 300rpm | |
| Rotary Speed Precision | ± 1rpm | ||
| Structure | Chamber Matcrial | Mirror Stainless Steel | |
| Outer Shell | ABS | ||
| Observation Window Material | Imported resin | ||
| Thermal Insulation Material | Polyurethane | ||
| Cooling System | No | Yes | |
| Coolant | No | R134a | |
| Heater | Stainless steel heating tube | ||
| Drive Mode | Three-axis level | ||
| Standard Tray Style | Universal spring grid tray | ||
| Air Circulation Mode | Horizontal convection | ||
| Power Rating | 0.6kW | 0.8kW | |
| Controller | Temp. Control Mode | LCD PID intelligent control | |
| Cyclotron Control Mode | |||
| Setting Mode | Automatic changes of rotation direction | ||
| Temp. Display Mode | Touch button setting | ||
| Speed Display Mode | LCD display | ||
| Timer | 0 ~ 9999min | ||
| Operation Function | Fixed value operation, timing function, bidirectional automatic switchover, auto stop, quick stop start | ||
| Temperature Sensor | PT100 | ||
| Speed Sensor | Hoare | ||
| Gating System | Yes | ||
| Additional Function | Deviation correction, menu keys locked, power-off memory | ||
| Safety Device | over temperature alarm, menu locked, gating system, power-off protection, plugging turn protection | ||
| Specification | Inner Chamber Size (W*L*H)(mm) | 455 × 380 × 290 | 560 × 390 × 320 |
| Exterior Size (W*L*H)(mm) | 500 × 640 × 480 | 600 × 770 × 500 | |
| Packing Size (W*L*H)(mm) | 802 × 620 × 685 | 913 × 720 × 698 | |
| Shelf Size (mm) | 380 × 320 | 480 × 315 | |
| Max capacity of Shelf for single specification(ml/pc) | 100ml*16/250ml*9/500ml*5/1000ml*4 | 100ml*24/250ml*12/500ml*8/1000ml*6 | |
| Inside Volume | 50L | 70L | |
| Shelf Load Bearing | ≤10kg/layer | ≤15kg/layer | |
| Shelf Layer | 1 | ||
| Power Supply (50/60Hz) Current Rating | AC220V/2.5A | AC220V/3.5A | |
| NW/GW (kg ) | 45/55 | 65/85 | |
| Optional Flask Clip Tray Wireless Short Message Alarm System | 25ml*30/50ml*20/100ml*16/250ml*9/500ml*7/1000ml*4 | 25ml*38/50ml*31/100ml*22/250ml*14/500ml*9/1000ml*5 | |
