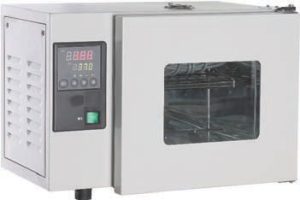

Microbiological Incubator — Natural Convection
Product Features
- A mirror-finished stainless-steel chamber facilitates cleaning;
- Natural-convection circulation is quiet and prevents sample evaporation during experiments;
- An observation window in the door facilitates viewing of experiments inside the chamber;
- A fuzzy PID controller provides precise temperature control with low fluctuation and a timer with a maximum setting of 99 hours 59 minutes;
- An independent temperature-limit alarm system automatically interrupts operation if the limit is exceeded, ensuring safe experiments without accidents (optional);
Multi-segment Programmable Controller (Optional)
- The multi-segment LCD programmable controller displays multiple parameters on one screen. Its menu-based interface simplifies complex tests and provides automatic control and operation;
- Multi-segment temperature, time and heating-rate parameters can be set and programmed together. Functions include controlled temperature ramps and gradual heating from the initial chamber temperature. Automatic start, standby and shutdown can also be preset;
Safety Functions
- High-temperature and overtemperature alarms;
Technical Specifications
| Technical Specification / Model | DHP-9011 DHP-9011B |
DHP-9031 DHP-9031B |
DHP-9051 DHP-9051B |
DHP-9121 DHP-9121B |
DHP-9211 DHP-9211B |
|---|---|---|---|---|---|
| Supply Voltage | AC220V 50HZ | ||||
| Temperature Control Range | RT+5~65°C | ||||
| Temperature Resolution / Fluctuation | 0.1°C/±0.5°C | ||||
| Ambient Operating Temperature | +5~35°C | ||||
| Input Power | 85W | 125W | 250W | 550W | 900W |
| Observation Window | Provided | Not provided | |||
| Capacity | 16L | 35L | 50L | 115L | 220L |
| Chamber Dimensions (mm) W×D×H | 270×260×232 | 360×325×300 | 400×330×380 | 520×450×495 | 650×500×680 |
| Overall Dimensions (mm) W×D×H | 507×397×347 | 597×464×417 | 665×667×600 | 785×587×715 | 915×657×870 |
| Shelves (Standard) | 2 shelves | 2 shelves | 2 shelves | 3 shelves | 3 shelves |
Note: Models with “B” have an LCD controller.
Optional Accessories:
1. Multi-segment programmable controller
2. USB flash drive data storage
3. Independent temperature-limit control
4. RS485 interface and communication software
5. UV sterilization system (optional): periodically disinfects the chamber interior and effectively kills airborne bacteria in the circulating air, preventing contamination during cell culture;
Note 1: choose either USB flash drive or RS485/232.
Note 2: DHP-9011/9011B cannot be fitted with an RS485 interface and communication software.
