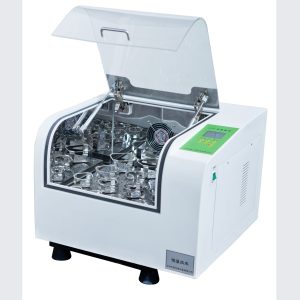

LYZ-103B Series Shaking Incubator（Benchtop）
Features:
★Integrated with incubator and shaker to save space and cost.
★Polished stainless steel chamber.
★ LCD screen to display temperature and shaking speed.
★With operation data memory function to eliminate faulty operation.
★ Auto-recovery after power outage or crash as originally programmed, avoiding data loss.
★Auto-stop operation when door opened.
★ Brushless DC motor, more stable and reliable.
Spec:
| Model | LYZ-103B | LYZ-100B | LYZ-200BS | LYZ-200BP |
| Shaking Speed (rpm) | 20-300 | |||
| Speed accuracy (rpm) | ±1 | |||
| Swing amplitude（mm） | Φ26 | |||
| Standard configuration | 100ml×9 | 50ml×4, 100ml×4 ,250ml×3, 500ml×3 | 50ml×5, 100ml×5 ,250ml×4, 500ml×3 | 50ml×5, 100ml×5 ,250ml×4, 500ml×3 |
| Maximum capacity | 50ml×12 or 100ml×9 or 250ml*9 | 50ml×20 or 100ml×16 or 250ml×12 or 500ml×9 | 100ml×20 or 250ml×16 or 500ml×12 or 1000ml×5 or 2000ml×4 | 100ml×20 or 250ml×16 or 500ml×12 or 1000ml×5 or 2000ml×4 |
| Tray Size（mm） | 295×253 | 400×370 | 450×410 | 450×410 |
| Timing Range | 1-9999min | |||
| Temperature Range（℃） | RT+5～60 | RT+5～60 | 10～60(Cooling) | RT-15℃~60℃
（Ambient temp-15℃)
|
| Temperature Accuracy （℃） | ±0.1 | |||
| Temperature uniformity（℃） | ±1 | |||
| Display | LCD | |||
| Tray Included | 1 | |||
| Exterior Size(W×D×H)mm | 440×410×390 | 600×580×510 | 832*690*653 | 780*750*570 |
| Volume (W×D×H)mm | 320×295×190 | 440×405×270 | 480×450×320 | 480×450×320 |
| Power Rating | 220W | 320W | 580W | 580W |
| Power Supply | AC 220～240V, 50～60Hz | |||
