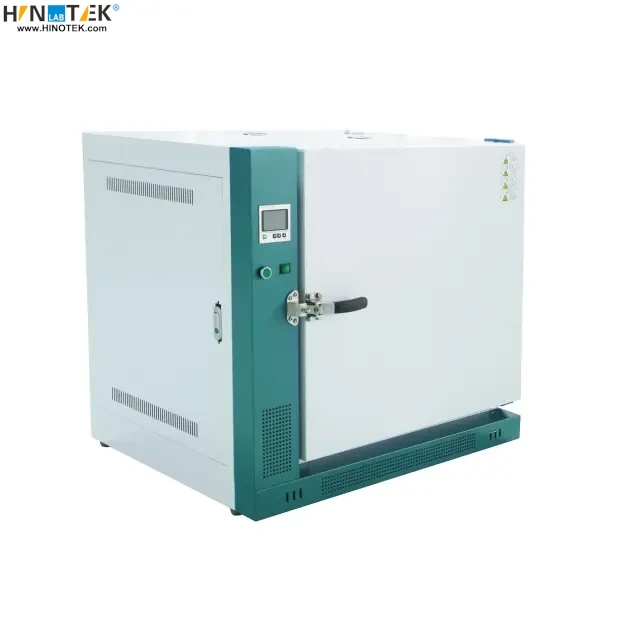

FG-50B Series 500°C/600°C High Temperature Forced Air Drying Oven
Characteristics
● Colour LCD display, PID controller, ensure the temperature more accurate and stable.
SUS316 stainless steel inner chamber, four-corner semicircular arc transition, shelf can be removed freely, easy to clean.
Ceramic fiber door seal, high temperature resistant circulating fan, long-term high temperature operation, long service life.
B: 500°C
BE: 600°C
Technical Specifications
| Model | FG-50B / FG-50BE | FG-91B / FG-91BE | FG-150B / FG-150BE | FG-208B / FG-208BE | |
|---|---|---|---|---|---|
| Circulation Mode | Forced Convection | ||||
| Function | Temp.Range | B:RT+20-500°C, BE:RT+20-600°C | |||
| Temp.Resolution Radio | 0.1°C | ||||
| Temp.Motion | ± 0.5°C | ||||
| Temp.Uniformity | 2.50% | ||||
| Structure | Inner Chamber | B: SUS316L; BE: SUS309S | |||
| Outer Shell | Cold rolling steel electrostatic spraying exterior | ||||
| Insulation Layer | Alumina Silicate Fibre | ||||
| Heater | SUS304 Stainless steel electric heat tube | ||||
| Controller | Power Rating | 3.6kW | 4.5kW | 4.8kW | 5.1kW |
| Exhaust Hole | φ 35mm top (with function of test hole) | ||||
| Temp.Control Mode | Two temperature section PID intelligent | ||||
| Temp.Setting Mode | Touch button setting | ||||
| Temp. Display Mode | Measuring temperature display on upper LCD screen, setting temperature display on the lower row. | ||||
| Timer | 0-9999min(with timing wait function) | ||||
| Operation Function | Fixed temperature operation, fixed timing operation, auto stop | ||||
| Additional function | Sensor deviation correction, temperature overshoot self-tuning, internal parameter lock-ing, power-off parameter memory | ||||
| Sensor | Hight Precision K type | ||||
| Safety Device | Over temperature sound-light alarm | ||||
| Specification | Inner Chamber Size(W*L*H)(mm) | 350 × 350 × 400 | 450 × 450 × 450 | 500 × 500 × 600 | 570 × 620 × 595 |
| Exterior Size(W*L*H)(mm) | 831 × 634 × 861 | 931 × 734 × 911 | 981 × 784 × 1061 | 1051 × 902 × 1057 | |
| Packing Size(W*L*H)(mm) | 901 × 649 × 845 | 1001 × 749 × 989 | 1051 × 799 × 1139 | 1121 × 919 × 1149 | |
| Volume | 50L | 91L | 150L | 208L | |
| Max Shelf Number | 4 | 6 | 7 | 7 | |
| Load Per Rack | 15kg | ||||
| Shelf Space | 45mm | ||||
| Current Rating(50/60HZ) | AC380V/5.5A | AC380V/6.8A | AC380V/7.3A | AC380V/7.7A | |
| NW/GW(KG) | 99/109 | 115/130 | 135/150 | 165/180 | |
| Accessory | Shelf | 2 | |||
| Shelf Frame | 4 | ||||
| Optional Accessories | Spare shelf, Program controller | ||||
