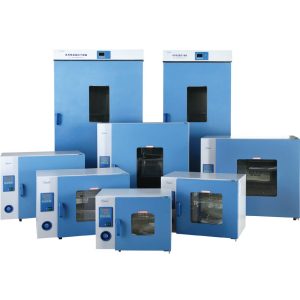

Precision Forced-Air Drying Oven — Multi-segment Programmable Control
This new generation of precision forced-air drying ovens combines the company’s years of successful drying-oven design and manufacturing experience and maintains a leading technological position in drying ovens. Guided by user-friendly design and customers’ practical needs, every detail is developed to meet their requirements and provide a high-quality precision drying-oven range.
Product Features
User-Friendly Design
- The large LCD displays multiple data sets on one screen, with a menu-based interface that is easy to understand, observe and operate;
- The mirror-finished stainless steel chamber has rounded corners and freely removable shelf supports for easy cleaning;
- A 25mm-diameter test port on the left side allows flexible cable routing to suit the installation location;
Self-Diagnosis
- If the drying oven develops a fault, the LCD displays fault information so that the source of the operating problem is clear;
Multi-Segment Programmable Controller
- A microcomputer programmable controller controls time and heating rate for very rapid heating and drying tests;
- 7 groups totaling 63 programmable steps can be preset, with 9 steps per group and a time setting of 0~5999 minutes for each group. Start-up and shutdown times can be preset, and circulating fan speed is adjustable;
- Multi-segment programmable control with a menu-driven interface simplifies complex experimental procedures and enables automatic control and operation;
Convenient Data Processing (Optional)
- A printer, 485 communication interface or USB data-transfer interface (USB flash drive) can be connected to record temperature and time using a computer and printer, supporting storage and playback of experimental data;
Safety Functions
- The independent temperature-limit alarm system provides audible and visual warnings to ensure safe operation and prevent accidents;
- High-temperature and overtemperature alarms;
Technical Specifications
| Specification / Model | Supply Voltage | Input Power | Temperature Control Range | Temperature Resolution | Constant-Temperature Fluctuation |
Temperature Uniformity |
Shelves | Chamber Dimensions (mm) W×D×H |
Overall Dimensions (mm) W×D×H |
Capacity | Observation Window | Timer Range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BPG-9040A | AC220V 50HZ |
850W | RT+10~200°C (RT+10~250°C) |
0.1°C | ±1°C | ±2.5% (Test point: 100°C) |
2 shelves | 350×300×400 | 505×655×600 | 40L | Not provided | 0~5999min |
| BPG-9070A | 1100W | 400×320×550 | 550×660×750 | 80L | Provided | |||||||
| BPG-9140A | 1550W | 3 shelves | 500×380×750 | 655×715×980 | 150L | |||||||
| BPG-9240A | 2050W | 600×450×900 | 755×785×1130 | 250L | ||||||||
| BPG-9420A | 3000W | 1000×510×800 | 1140×850×1080 | 400L |
Optional Accessories:
Note: choose one of USB flash drive, RS485/232 or printer.
