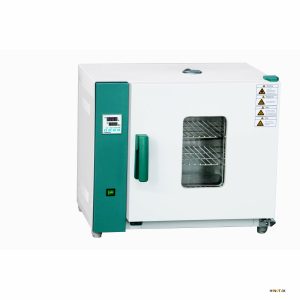

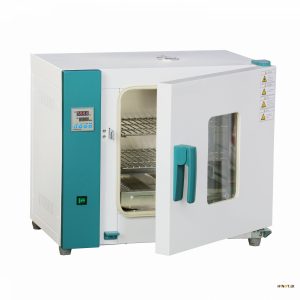

101-0A Series Horizontal Drying Oven
High precision and large density sample drying treatment.
Characteristics
Horizontal air type, high space utilization and good temperature uniformity.
101: Forced fan cooling intake structure, the maximum working temperature <50 °C, the fan long-term longevity operation.
202: Classical natural convection drying method.
New anti-hot handle.
Patent No.: ZL201830094606.5
Technical Specifications
| Model | 101-0A/101-0AB | 101-1A/101-1AB | 101-2A/101-2AB | 101-3A/101-3AB | |
|---|---|---|---|---|---|
| 202-0A/202-0AB | 202-1A/202-1AB | 202-2A/202-2AB | 202-3A/202-3AB | ||
| Cycle Mode | 101 means Forced convection; 202 means Natural convection | ||||
| Function | Temp. Range | RT+10-250°C | |||
| Temp. Resolution Ratio | 0.1°C | ||||
| Temp. Motion | ± 1°C | ||||
| Temp. Uniformity | 101 model ± 2.5%, 202 model ± 3.5% | ||||
| Structure | Inner Chamber | B model: High quality stainless steel; without B model: High strength galvanized sheet | |||
| Outer Shell | Cold rolling steel electrostatic spraying exterior | ||||
| Insulation Layer | High quality rock wool board (with CE) | ||||
| Heater | 101 model with Stainless steel electric heating tube; 202 model with Nickel chromium alloy heating wire | ||||
| Power Rating | 1.2kW | 1.6kW | 2.3kW | 3.0kW | |
| Exhaust Hole | φ 35mm top (with function of test hole) | ||||
| Controller | Temp. Control Mode | Two temperature section PID intelligent | |||
| Temp. Setting Mode | Touch button setting | ||||
| Temp. Display Mode | LED Digital display | ||||
| Timer | 0-9999min (with timing wait function) | ||||
| Operation Function | Fixed temperature operation, fixed timing operation, auto stop. | ||||
| Additional Function | Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | ||||
| Sensor | PT100 | ||||
| Safety Device | Over temperature sound-light alarm | ||||
| Specification | Inner Chamber Size(W*L*H)(mm) | 350 × 350 × 350 | 450 × 350 × 450 | 550 × 450 × 550 | 600 × 500 × 750 |
| Exterior Size (W*L*H)(mm) | 652 × 472 × 587 | 752 × 472 × 687 | 852 × 572 × 786 | 902 × 622 × 986 | |
| Packing Size (W*L*H)(mm) | 745 × 605 × 745 | 845 × 605 × 850 | 945 × 705 × 950 | 955 × 755 × 1150 | |
| Volume | 43L | 71L | 136L | 225L | |
| Max Shelf Number | 9 | 13 | 17 | 25 | |
| Load Per Rack | 15kg | ||||
| Shelf Space | 25mm | ||||
| (50/60HZ)Current Rating | AC220V/5.5A | AC220V/7.3A | AC220V/9.1A | AC220V/13.6A | |
| NW/GW (kg) | 40/46 | 45/50 | 62/68 | 77/96 | |
| Accessory | Shelf | 2 | |||
| Shelf Frame | 4 | ||||
| Optional Accessories | Shelves | ||||
