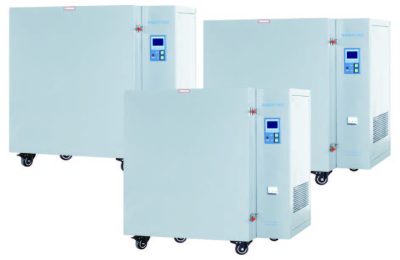

High-temperature Forced-Air Drying Oven — Multi-segment Programmable LCD Control
Product Features
- A mirror-finished stainless-steel chamber has rounded corners and freely removable shelf supports for easy cleaning;
- A new P.I.D fuzzy-logic controller quickly reaches the setpoint and provides more precise, stable operation;
- Ceramic-fiber door seals withstand prolonged high-temperature operation and offer long service life;
- 7 groups totaling 63 programmable steps can be preset, with 9 steps per group and a time setting of 0~5999 minutes for each group. Start-up and shutdown times can be preset, and circulating fan speed is adjustable;
- Multi-segment programmable control with a menu-driven interface simplifies complex experimental procedures and enables automatic control and operation;
- An independent temperature-limit alarm system automatically interrupts operation when the limit is exceeded, ensuring safe experiments without accidents;
- An optional printer or RS485 interface connects a printer or computer to record changes in temperature parameters;
Technical Specifications
| Technical Specification / Model | BPG-9050AH BPG-9050BH |
BPG-9100AH BPG-9100BH |
BPG-9200AH BPG-9200BH |
BPG-9760AH BPG-9760BH |
|---|---|---|---|---|
| Supply Voltage | AC380V 50HZ | |||
| Temperature Range | AH:RT+20~400°C / BH:RT+20~500°C | |||
| Temperature Resolution / Fluctuation | 0.1°C/±0.5°C | |||
| Ambient Operating Temperature | +5~40°C | |||
| Input Power | 3250W/4050W | 4050W/4900W | 4900W/6050W | 8500W/8500W |
| Capacity | 50L | 100L | 220L | 760L |
| Chamber Dimensions (mm) W×D×H |
350×350×400 | 450×450×450 | 600×600×600 | 980×1000×780 |
| Overall Dimensions (mm) W×D×H |
890×700×920 | 990×790×990 | 1140×950×1140 | 1324×1263×1770 |
| Shelves (Standard) | 2 shelves | |||
| Timer Range | 0~5999min | |||
Optional Accessories (add 7 days to delivery time when options are added):
Note: choose one of USB flash drive, RS485/232 or printer.
