Feature:
● Dot-Matrix LCD – Detaile testing information is provded.
● Convenient and Quick Operating – All operations can be easily realized through six buttons,without a complicated interface.
● Outstanding Performance – A dopting the technology of hest-insulated weighing sensord to ensure the accuracy of weighing not to be affected during the heating process.
● Standardly Featured RS Communication Interface – Easy to connected to printers,computers or other auxiliary equipment.
● Quick Heating: Dsh-50 electronic moisture quick teller(halogen heating moisture teller)-can be used in the sample testing that requires quick heating.
Function：
● It is used to rapidly test free water in specimen of chemicals,grains,minerals,biological products,food,pharmaceutical material,papers and textie materials.During the test,drying stayus can be directly confirmed in order to infer the closing time. With its function of automatic faring,accurate measurement can also be achieved via zero-drift correction even affer a certain period of continous test.

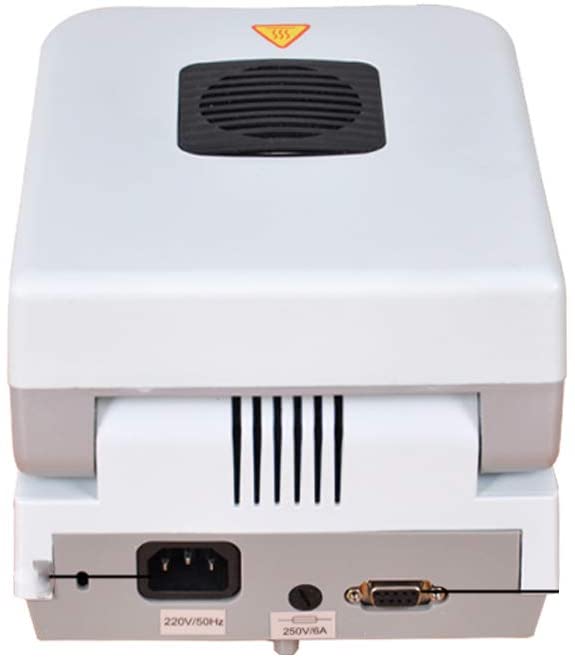

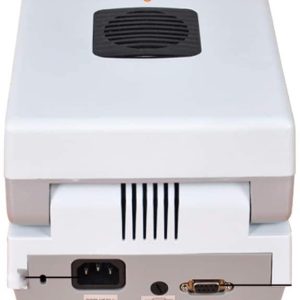

● Bilit-in RS232C output interface guarantees direct connection to external equipemnt such ascomputer and printer
Spec:
| Model | DSH-50-10 | DSH-50-5 | DSH-50-1 |
| Max Range | 50g | 50g | 50g |
| Readable | 0.01g | 0.005g | 0.001g |
| The moisture percentage accuracy | 0.30% | 0.20% | 0.10% |
| Diameter | Φ90mm | Φ90mm | Φ90mm |
| Temperature Adjustment Range | 50-180℃ | 50-180℃ | 50-180℃ |
| Ambient Temperature | 10-30℃ | 10-30℃ | 10-30℃ |
