Digital Conductivity Controller
Product Description
- EC controler offers continuous and accurate EC reading. It also offers alarm when EC reading is out of the user preset range.
- The alarm feature can be set for either high or low position.
- Four LED digital display, a wide range of test and control, with high precision and accuracy. Equipped with a high-performance detection electrodes, long-term monitoring and control of water salinity.
- AC voltage, fit for all parts of the worlds.
- There are two kinds of tests and test and control function selection.
- Special suitcase, built instruments, electrodes and all accessories and easy to use.
Technical Specification
- Environment: Temperature: 0 – 50°C, RH < 95%
- Relay contact: 5A/240VAC
- Power Supply: Fit for all parts of the worlds
- Display: 4 LED display

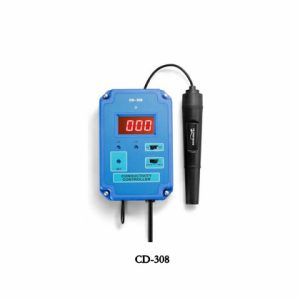

| Model | CD-208 | CD-308 |
| Measuring Range | 0 ∼ 1999μS/cm
0 ∼ 199.9 mS |
0 ∼ 1999μS/cm
0 ∼ 199.9mS |
| Resolution | 1μS, 0.1mS | 1μS, 0.1mS |
| Accuracy | ±(1.5%F.S+2 digits)
±(1.5%F.S+2 digits) after calibration |
±(1.5%+2 digits)
±(1.5%+2 digits) after calibration |
| Set Range | 0 ∼ 1000μS, 0 ∼ 100mS | 0 ∼ 1000μS, 0 ∼ 100mS |
| Dimensions(mm) | 150 x 85 x 40 | 160 x 102 x 40 |
