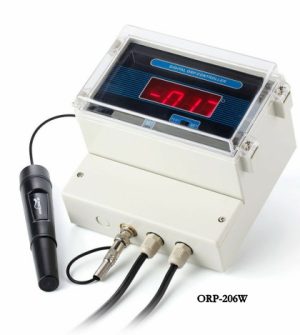

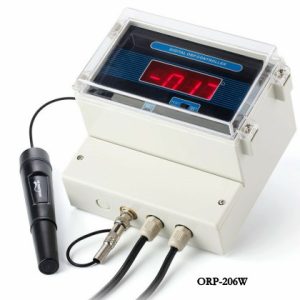

PH-201W/ORP-206W Waterproof PH/ORP Controller


Waterproof pH/ORP Controller

Product Description

  • pH controller offers continuous and accurate pH reading. It also offers alarm when pH reading is out of the user preset range.
  • The alarm feature can be set for either high or low position.
  • Digital display, digital clarity, easy to use.
  • The instrument is equipped with universal pH composite electrode.
  • Can be vertical or wall mount for easy installation, operation and maintenance.

Technical Specification

  • Environment: 0°C ∼ 50°C
  • Relay contact: 5A/110V-240VAC
  • Power Supply: Fit for all parts of the worlds
  • Display: 4 LED display
  • Dimensions(mm): 165 x 158 x 121
  • Weight: 680g
Model PH-201W ORP-206W
Measuring Range 0.00 ∼ 14.00pH -1999 ∼ 1999mV
Resolution 0.01pH 1 mV
Accuracy ±0.1pH ±5 mV
Set Range 3.50 ∼ 10.50pH -500 ∼ 500mV or

0 ∼ 1000mV
