BBS-DSC/BBS-SSC

Vertical Laminar Flow Cabinet

SKU: bbs-dsc-9031 Category: Tag:

Description

ADVANTAGE

  1. With memory function in case of power-failure.

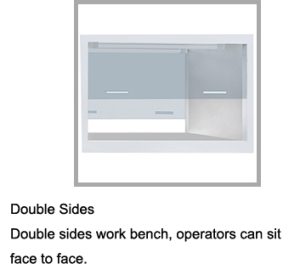

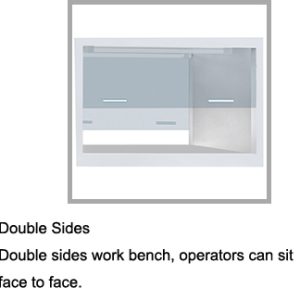

  2. Double sides work bench, 2∼4 operators can work together.

TECHNICAL PARAMETERS

ModelBBS-DSCBBS-SSC
External Size (W*D*H)1040*660*1770mm1440*660*1770mm
Internal Size (W*D*H)940*560*545mm1340*560*545mm
Work Surface Height750mm

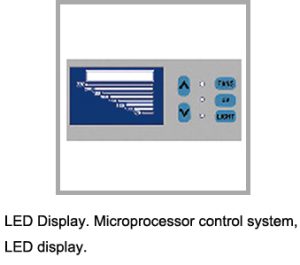

DisplayLED Display
Airflow VelocityAverage of 0.3~0.5m/s
MaterialMain Body: Cold-rolled steel with anti-bacteria powder coating
Work Table: 304 stainless steel
Pre-filterPolyester fiber, washable
HEPA Filter99.999% efficiency at 0.3um
Noise<60dB
Front WindowManual, 5mm toughened glass, anti-UV
Max Opening310mm310mm

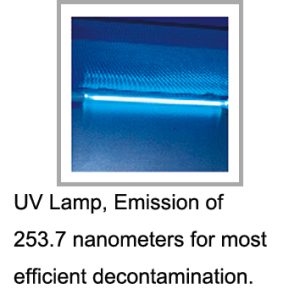

UV Lamp18W*130W*1
Emission of 253.7 nanometers
LED Lamp12W*116W*1
Consumption350W600W
CasterUniversal caster with leveling feet
Power SupplyAC 220V±10%, 50/60 Hz; 110V±10%, 60 HZ
Standard AccessoryLED lamp, UV lamp*2, Base stand
Optional AccessoryElectric height adjustable base stand
Gross Weight150kg186kg
Package Size (W*D*H)1190*890*1340mm1590*890*1340mm
