BBS-H1100/BBS-H1500

Horizontal Laminar Flow Cabinet

SKU: BBS-h1100-9301 Category: Tag:

Description



ModelBBS-H1100(Previous name: BBS-DDS)BBS-H1500(Previous name:

BBS-SDS)

BBS-H1800(X)
External Size(W*D*H)1100*808*1690mm1500*808*1690mm1800*808*1890mm
Internal Size(W*D*H)1000*500*600mm1400*500*600mm1700*500*800mm
Work Surface Height750mm

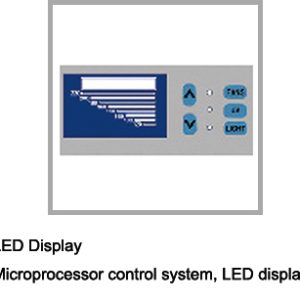

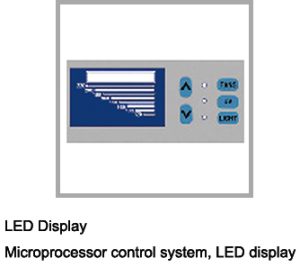

DisplayLCD Display



Airflow VelocityAverage of 0.30~0.45m/s



Material



Main Body: Cold-rolled steel with anti-bacteria powder coating



Work Table:304 stainless steel

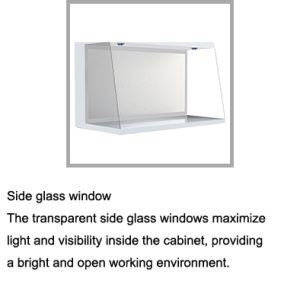

Side Windows:8mm toughened glass, anti-UV



Pre-filterPolyester fiber, washable



HEPA Filter99.999% efficiency at 0.3um



Noise<60dB



LED Lamp12W*116W*116W*2
UV Lamp20W*130W*120W*2
Emission of 253.7 nanometers



Consumption200W300W400w

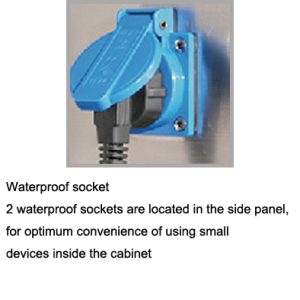

Waterproof socketTwo, total load≤500W



CasterUniversal caster with leveling feet



Power SupplyAC220V±10%; 50/60Hz;  110V±10%, 60Hz



Standard AccessoryLED lamp, UV lamp*2,Base stand, Waterproof socket*2, Hook*10



Optional  AccessoryElectric height adjustable base stand
Gross Weight170kg185kg240kg
Package Size(W*D*H)1250*1030*1340mm1650*1030*1340mm1950*1050*1550mm
