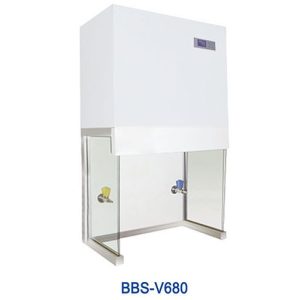

BBS-V680 Series

Vertical Laminar Flow Cabinet

SKU: hibbs680 Category: Tag:

Description

TECHNICAL PARAMETERS

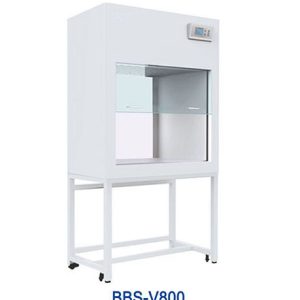

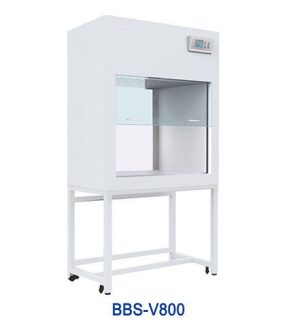

Model  BBS-V680 BBS-V800  BBS-DDC  BBS-SDC
 External Size

(W*D*H), mm

680*410*1160mm 802*650*1550mm  1040*615*1770  1440*615*1770mm
 Internal Size

(W*D*H), mm

630*375*615mm 800*530*540mm  940*540*545mm  1340*540*545mm
 Work Surface

Height

 / 660mm  750mm  750mm
 Display  LED Display
 Airflow Velocity  Average of 0.3~0.5m/s, air speed adjustable.
 Material  Main Body: Cold-rolled steel with anti-bacteria powder coating
 Work Table: 304 stainless steel (except model BBS-V680)
 Pre-filter  Polyester fiber, washable
 HEPA Filter  99.999% efficiency at 0.3um
 Noise  <65dB
 Front Window  / Manual,5mm toughened glass, anti-UV
 Max Opening  / 490mm 310mm 310mm
Illuminating Lamp Fluorescent Lamp

14W*1

LED Lamp

8W*1

LED Lamp

12W*1

LED Lamp

16W*1

UV Lamp 15W*1  20W*1 18W*1 30W*1
 Emission of 253.7 nanometers
 Consumption  160W  350W  350W 600W
Standard Accessory Fluorescent lamp, UV lamp*2

Water & gas tap

LED Lamp

UV lamp*2

Base stand

LED Lamp

UV lamp*2

Base stand

LED Lamp

UV lamp*2

Base stand

Optional Accessory / Electric height adjustable bass stand
 Caster /  Universal wheel with leveling feet
 Power Supply  AC 220V±10%, 50/60 Hz; 110V±10%, 60HZ
 Gross Weight  50kg  116kg  131kg 174kg
 Package Size (W*D*H), mm  840*560*1380mm  960*800*1800mm  1190*890*1340mm 1590*890*1330mm
