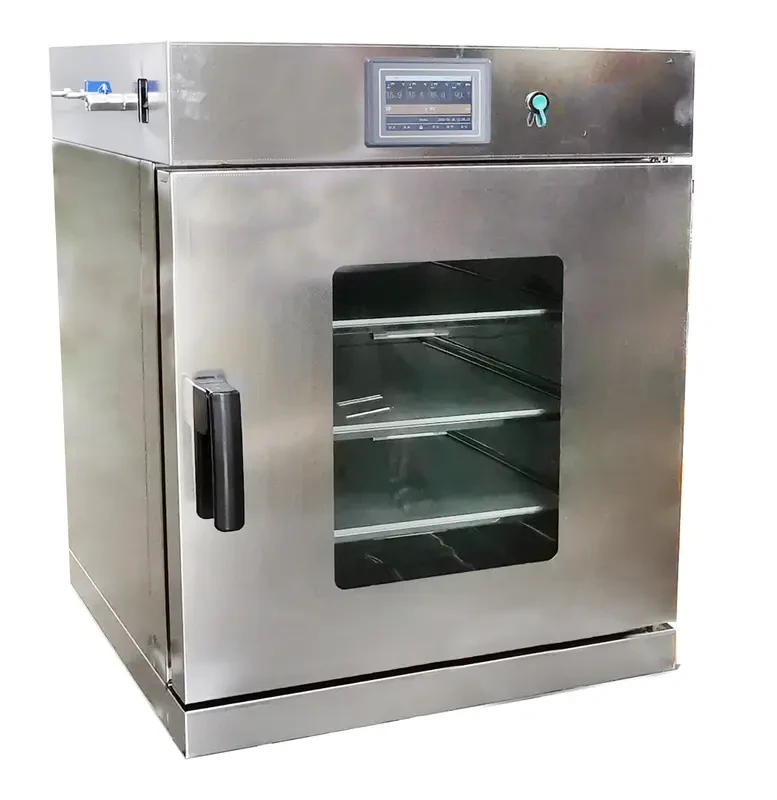

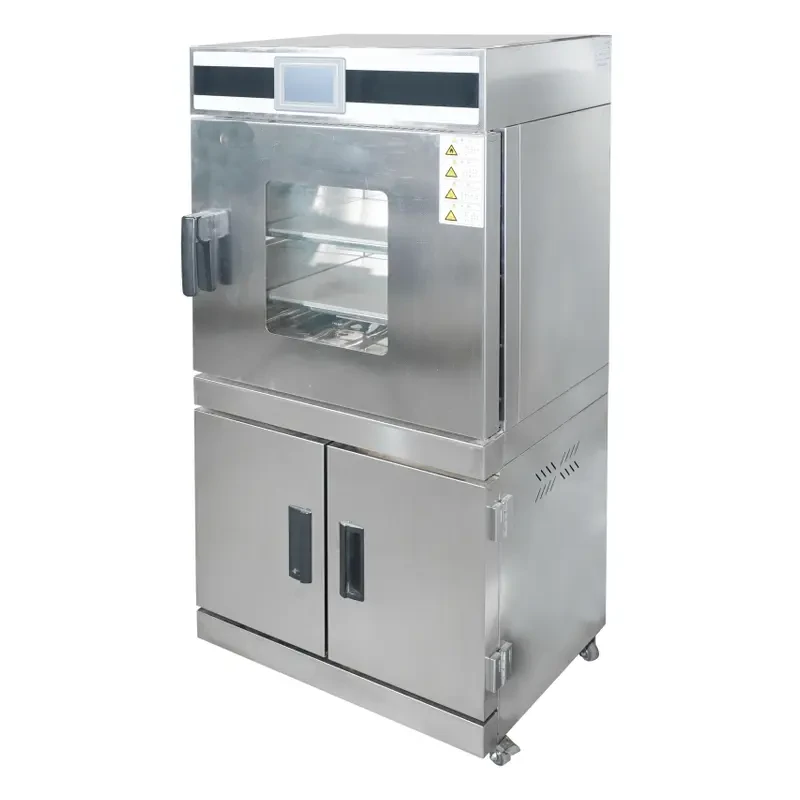

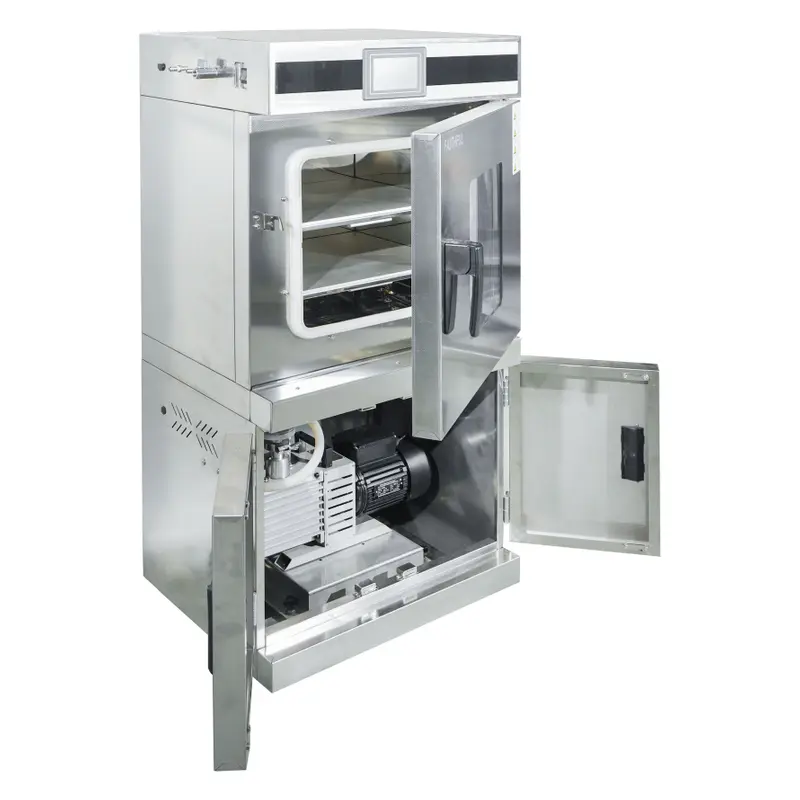

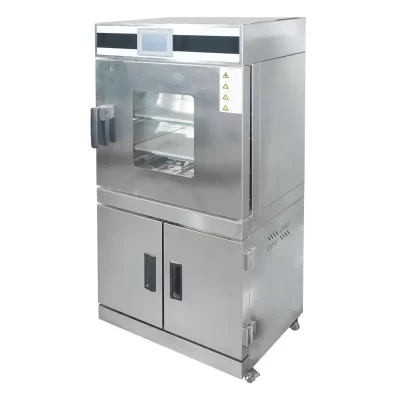

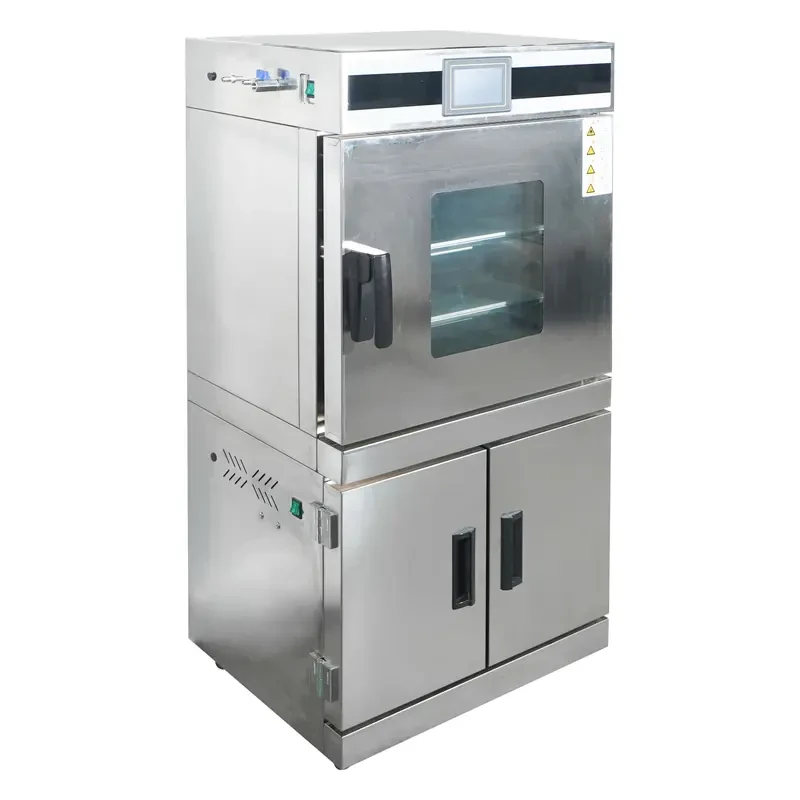

DZ-1BL Series Automatic Vacuum Drying Oven

Automatic Vacuum Drying Oven

For the design of drying heat sensitive and easy decomposition, easy oxidation material, inert gas into.

Characteristics:

  • Large LCD screen display show vacuum degree and temperature and multiple sets of data, intelligent PID temperature and gas control system, control temperature accurately, automatic vacuum degree control system.
  • Intelligent temperature and vacuum programmable design to meet different experiment requirements.
  • Standard inflatable port, gas pipeline equipped with air filter to extend the life of the vacuum pump, manual and electric double sets of deflation device, adopt integral forming and high temperature resistant silicone sealing strip, with good tightness.
  • Independent temperature limiter: imported mechanical mechanical temperature limiter, set the workroom to limit the temperature.

Main Technical Parameters:

Model DZ-1BL DZ-2BL DZ-3BL
Heating mode Four walls heat conduction and decompression
Function
Temp. Range RT +10-250°C
Vacuum degree Range <133Pa
Temp. Resolution Ratio 0.1°C
Temp. motion ± 1°C
Heating-up time 80min 100min 120min
Structure
Inner Chamber High quality hairline stainless steel sheet
Outer Shell Cold rolling steel electrostatic spraying exterior
Insulation layer High quality rock wool board(with CE)
Heater Stainless steel electric heating tube
Observation window Bullet proof glass, acrylic exterior protection
Vacuum meter LCD Display
Nozzle diameter 10mm
Power rating 0.8kW 1.4kW 2.0kW
Controller
Temp. control mode Intelligent PID multi-stage temperature control, program control vacuum
Temp. setting mode Touch button setting
Temp. display mode LCD Display
Timer 0-9999 min (with timing wait function)
Operation function Fixed temperature operation, timing function, auto stop
Additional function Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter
memory
Sensor Pt100
Safety device Over temperature sound-light alarm, mechanical temperature limiter, sensor fault alarm, over vacuum degree alarm
Specification
Inner Chamber size(W*L*H)(mm) 300*300*270 415*370*340 450*450*450
Exterior size (W*L*H)(mm) 480*480*1106 560*540*1180 640*590*1280
Packing size (W*L*H)(mm) 590*550*1250 704*620*1314 739*700*1389
Volume 24L 52L 91L
Number of shelf 2
Load per rack 15kg
Shelf space 100mm 140mm 185mm
Current rating (50/60HZ) AC220V/3.6A AC220V/6.3A AC220V/9.1A
NW/GW (kg) 42/52 67/92 82/105
Accessory
Shelf 2
Shelf frame 4
Optional Accessories RS485 interface, printer, recorder, remote control, wireless SMS alarm, USB data storage
