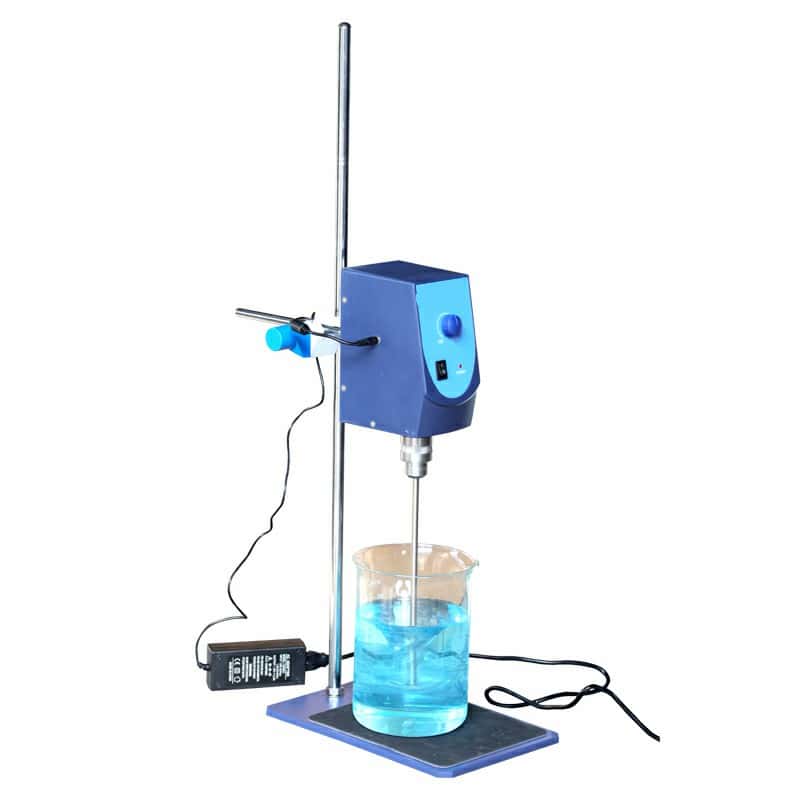

Overhead Stirrer
Large capacity mechanical mixing equipment.
Characteristics:
- Brushless DC motor drive, low noise and maintenance free.
- Stainless steel head restraints, more durable. Stirrer with digital type has three kinds of
- rotation mode as positive rotation, inversion, reciprocal and mutual conversion.
Main Technical Parameters:
| Model | SH-II-6 | SH-II-6C | SH-II-7C | |
|
Function
|
Max. Volume(L) | 20 | 20 | 40 |
| Digital | – | LCD | LCD | |
| Speed(r.p.m.) | 100 ∼ 2500 | 100 ∼ 2500 | 100 ∼ 2500 | |
| Working time | Continous | |||
| Minimum revolution(r.p.m.) | 100 | 100 | 100 | |
|
Structure
|
Exterior | Plastic shell | ||
| Driving mode | Motor | |||
| Motor power (KW) | 0.06 | 0.06 | 0.08 | |
|
Controller
|
Continuous operation | Yes | ||
| Setting mode | Scale | Digital | Digital | |
| Speed display mode | Scale | Digital | Digital | |
| Timer | No | Yes | Yes | |
| Operation function | No | Yes | Yes | |
|
Specification
|
Exterior size (W*L*H)(mm) | 115 x 95 x 240 | ||
| Packing size (W*L*H)(mm) | 400 x 250 x 210 | |||
| Plate size ( mm ) | 200 x 300 | |||
| Plate load | 50KG | |||
| Power supply (50/60Hz) Current rating | 100 ∼ 240V | |||
| NW/GW (kg) | 5/6 | 6/7 | 7/8 | |
