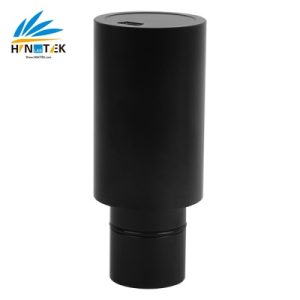

SPCMOS is an extension of SCMOS camera with fixed reduction lens to increase the field of view from the microscope eyepiece tube. The SPCMOS is still an economic version with simple and compact structure CMOS eyepiece camera. So here, the S means simple and compact, P means plus. USB2.0 is used as the data transfer interface.
The SPCMOS comes with high-speed USB2.0 interface and high frame rate video display keep the screen smooth without interruption;
Also the SPCMOS comes with advanced video & image processing application ToupView;
The SPCMOS can be widely used to transfer the mono or binocular student microscopes to digital microscope.
With 23.2 to 30mm or 23.2 to 30.75 convert ring, the SPCMOS camera can also change the stereo microscope to digital stereo microscope.
The basic characteristic of SPCMOS cameras are as follows:
- Microscope eyepiece camera with 23.2 diameter and compact size;
- An extension of ToupTek’s SCMOS camera with fixed reduction lens to ensure the full field of view of the microscope from the eyepiece can be imaged to the CMOS sensor;
- High-quality camera with Aptina CMOS sensor;
- Auto white balance and auto-exposure; Brightness, contrast, chroma, and saturation can be adjusted;
- High-speed USB2.0 interface and high frame rate video display keep the screen smooth without interruption;
- With advanced video & image processing application ToupView;
- Providing Windows/Linux/Mac OS multiple platforms SDK;
- Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dynamic Range SN Ratio |
FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
|
SPCMOS05100KPA |
5.0M/Aptina(C)
1/2.5″(5.70×4.28) |
2.2×2.2 | NA | 2@2592×1944 3@2048×1536 5@1600×1200 7.5@1280×1024 |
N/A | Auto |
|
SPCMOS03000KPA |
3.0M/Aptina(C)
1/2.7″ (4.51×3.38) |
2.2×2.2 | NA | 3@2048×1536 5@1600×1200 7.5@1280×1024 |
N/A | Auto
|
|
SPCMOS02000KPA |
2.0M/Aptina(C)
1/3.2″(4.48×3.36) |
2.8×2.8 | NA | 5@1600×1200 7.5@1280×1024 7.5@1280×960 20@800×600 |
N/A | Auto |
|
SPCMOS01300KPA |
1.3M/Aptina(C)
1/3″(4.60×3.70) |
3.6×3.6 | NA | 7.5@1280×1024 12.5@1024×768 12.5@800×600 |
N/A | Auto |
|
SPCMOS00350KPA |
0.35M/Aptina(C)
1/4″(3.58×2.69) |
5.6×5.6 | NA | 30@640×480 | N/A | Auto |
| OTHER HARDWARE CONFIGURATION | |
|---|---|
| Spectral Range | 380-650nm (with IR-filter) |
| White balance | Auto |
| Color Rendering Technique | NA |
| Capture/Control API | Native C/C++, Directshow, Twain |
| Recording System | Still Picture and Movie |
| Cooling System* | Natural |
| OPERATING ENVIRONMENT | |
| Operating Temperature | -10℃~ 50℃ |
| Storage Temperature | -20℃~ 60℃ |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 5V over PC USB Port |
| SOFTWARE ENVIRONMENT | |
| Operating System | Support Microsoft Windows XP / Vista / 7 /8 /10 (32 & 64 bit) OS X (Mac OS X), Linux |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
| Memory: 2GB or More | |
| USB port: USB2.0 High-speed Port | |
| Display: 17″ or Larger | |
| CD-ROM | |
